Mueller Industries W 02344cb Streamline Wrot Copper Pressure Fittings (1 inches) REPLACEMENT MPN

Product Description

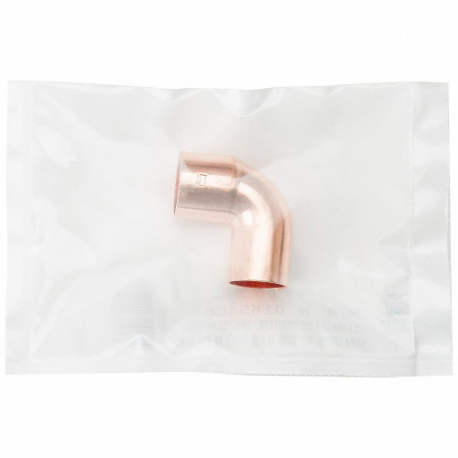

The MUELLER INDUSTRIES W 02344CB Streamline Wrot Copper Pressure Fittings are designed for medical gas applications. These fittings are pre-cleaned and bagged. They feature a cup x FTG connection, suitable for 1" copper tubes. These fittings are manufactured to meet ASME and NSF standards.

• Cleaned And Bagged
• Fitting Side A Copper Tube Size: 1"
• Maximum Operating Temperature: 250°F

Product Highlights

Wrot copper pressure fittings for medical gas, cleaned and bagged for safety.

Product Information

Standard Information

• Brand: MUELLER INDUSTRIES
• Manufacturer Part Number: W 02344CB

Technical Specifications

• Item: Fitting
• Application: Medical Gas
• Fitting Material: Wrot Copper
• Fitting Side A Connection Type: Cup
• Fitting Side A Copper Tube Size: 1"
• Fitting Side A Tube Outer Diameter: 1 1/8"
• Fitting Side B Connection Type: FTG
• Fitting Side B Copper Tube Size: 1"
• Fitting Side B Tube Outer Diameter: 1 1/8"
• Max. Operating Pressure: 300 psi
• Maximum Operating Temperature: 250°F
• Minimum Operating Temperature: -20°F
• Overall Length: 2 21/32"
• Pre-cleaned: Cleaned And Bagged
• Specific Fitting Shape: 90° Street Elbow
• Sub-brand: Streamline(R) Fittings
• standard: ASME B1.20.1, ASME B16.15, ASME B16.18, ASME B16.22, ASME B16.24, ASME B16.50, NSF 61G
