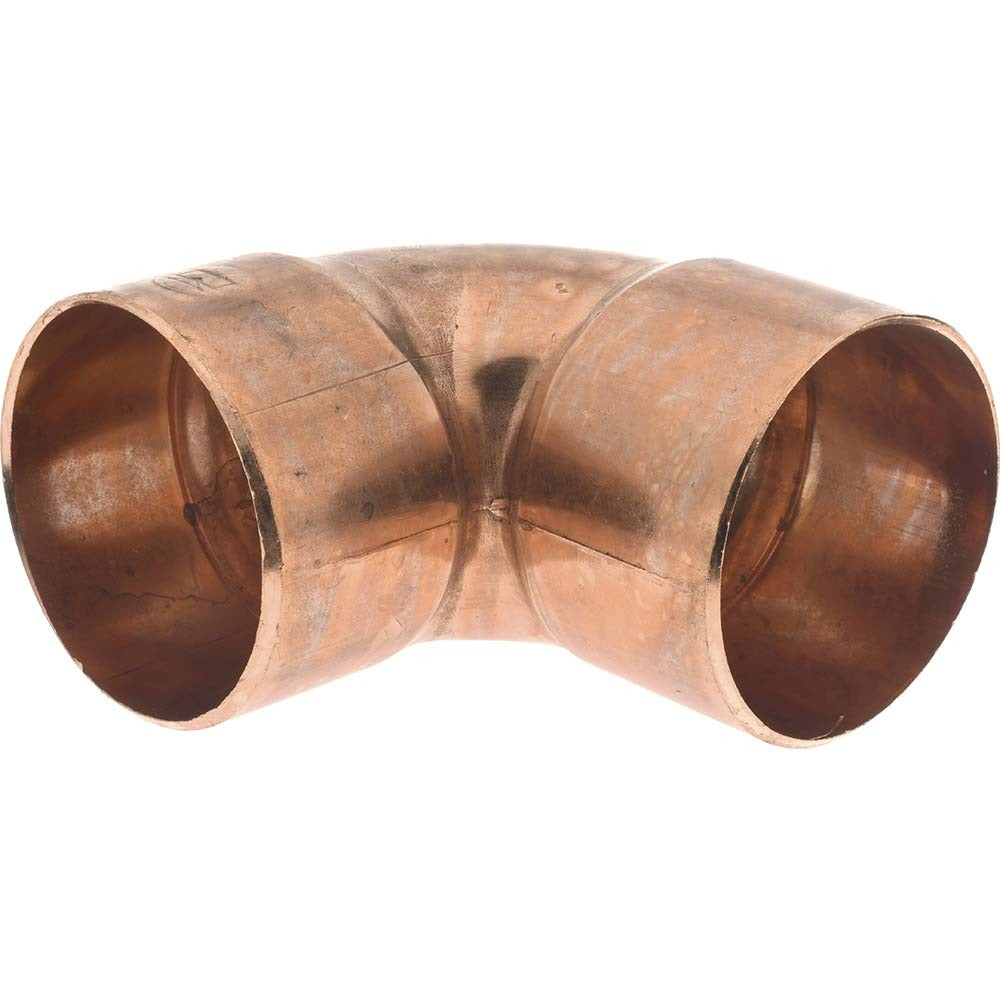

Mueller Industries W 02087 Wrot Copper 90 Elbow 2-1/2 in

Product Description

The MUELLER INDUSTRIES W 02087 is a wrot copper 90 degree elbow fitting designed for sweat-solder plumbing installations. With a 2-1/2 inch fitting size and cup-by-cup (C x C) end connections, it creates a reliable 90 degree directional change in copper piping systems. Wrot copper construction delivers consistent wall thickness and a smooth bore that supports full flow capacity. This fitting meets multiple ASME and NSF standards, making it appropriate for potable water and mechanical piping systems. It is installed by licensed plumbers and pipefitters working on residential and commercial projects.

This elbow is suited for use in domestic water supply, hydronic heating, and commercial mechanical piping systems where a 90 degree change in direction is required on a 2-1/2 inch copper line. The C x C end connections accept standard copper tubing for solder-joint assembly using common silver-bearing or lead-free solder per applicable plumbing codes. It fits standard 2-1/2 inch copper tube with a 2-5/8 inch outside diameter socket dimension.

Key Features

• Wrot copper construction for consistent wall thickness and mechanical strength
• C x C (cup-by-cup) solder-joint end connections for standard sweat installation
• 2-1/2 inch fitting size with 2-5/8 inch outside diameter
• Meets ASME B16.22 and ASME B16.18 dimensional standards for wrought copper fittings
• NSF 61G listed for use in potable water systems
• Complies with ASME B1.20.1, B16.15, B16.24, and B16.50 standards

Compatibility

Designed as a standard solder-joint replacement or new-installation fitting for 2-1/2 inch copper tube systems conforming to ASME B16.22 dimensional requirements.

Installation Notes

Installation is performed by a licensed plumber or pipefitter. Shut off and drain the water supply before cutting into an existing line. Clean and flux all mating surfaces thoroughly before applying heat; use a lead-free solder and flux where required by local plumbing codes. Follow IPC or applicable local code requirements for joint preparation, solder selection, and inspection of pressure piping.
