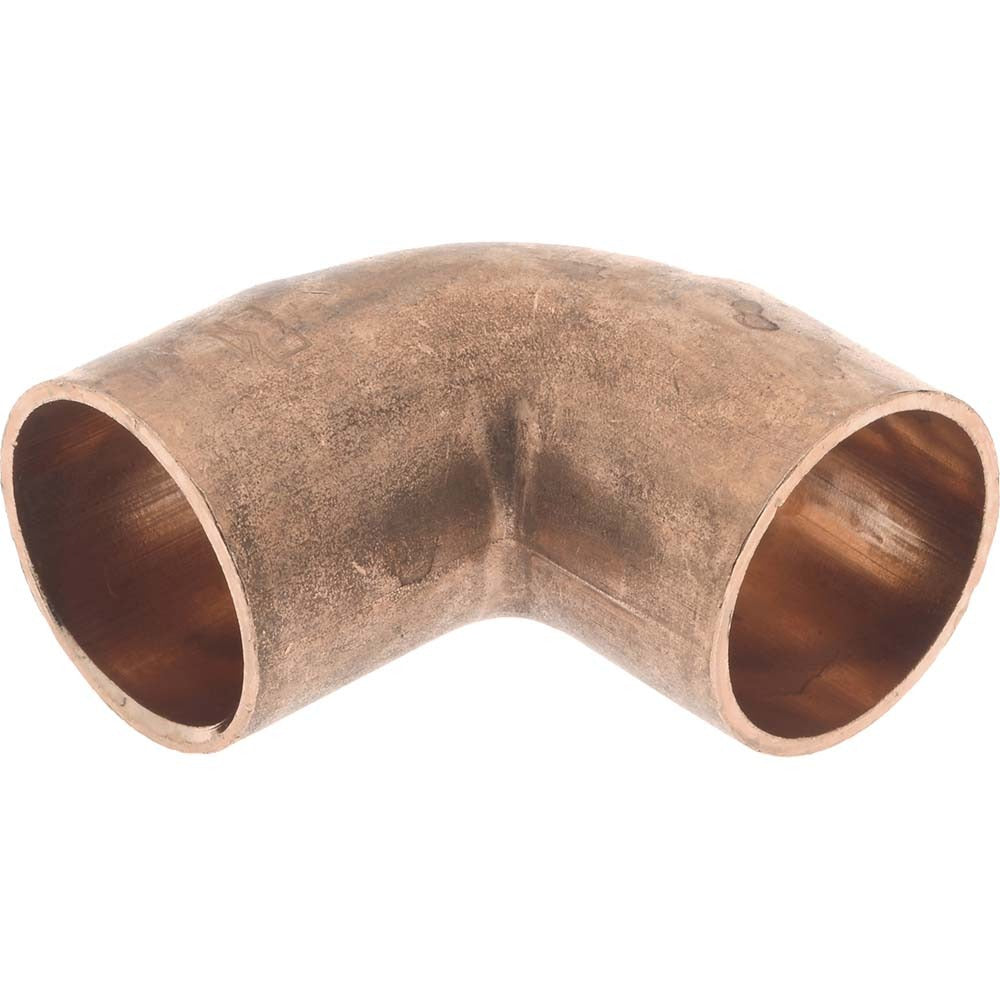

Mueller Industries W 01622 Copper 90 Elbow 1/2 in C X C

Product Description

The MUELLER INDUSTRIES W 01622 is a wrot copper 90 degree elbow fitting designed for sweat-soldered copper piping systems. Sized at 1/2 inch with a cup-by-cup (C x C) end connection, it creates a 90 degree directional change in a copper line using a standard solder joint. Wrot copper construction provides consistent wall thickness and a clean mating surface for reliable solder flow. This fitting meets multiple ASME dimensional standards and carries NSF 61G certification, making it appropriate for potable water applications. Plumbers and pipefitters install this fitting in both new construction and retrofit work on residential and light commercial systems.

This elbow is used wherever a 90 degree turn is needed in a 1/2 inch copper water supply, hydronic heating, or refrigeration piping run. The C x C configuration accepts standard Type K, L, or M copper tubing on both ends. It is commonly installed in domestic hot and cold water distribution, radiant heating loops, and HVAC condensate or refrigerant piping where applicable code allows solder joints. The 5/8 inch outside diameter fits standard 1/2 inch copper tubing without modification.

Key Features

• Wrot copper construction for uniform grain structure and strong solder bond
• C x C end connections accept standard 1/2 inch copper tubing on both ends
• 90 degree elbow geometry for a full directional change in a piping run
• NSF 61G certified for use in potable water systems
• Meets ASME B16.22 and related dimensional standards for consistent fit with standard copper fittings
• Lightweight at 0.04 pounds per piece — manageable in tight spaces

Compatibility

Designed as an OEM-style replacement and new-installation fitting for 1/2 inch copper piping systems using standard solder-joint (sweat) connections per ASME B16.22.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the applicable plumbing code, such as the IPC or local equivalent. Shut off and depressurize the water or fluid system completely before cutting into an existing line. Both the tube end and fitting cup must be cleaned with emery cloth and flux-coated before applying heat with a propane or MAP torch; do not overheat the joint. Allow the fitting to cool completely before restoring system pressure and inspecting for leaks.
