Mueller Industries W-01246 Adapter Female C x FPT (3/4 in)

Product Description

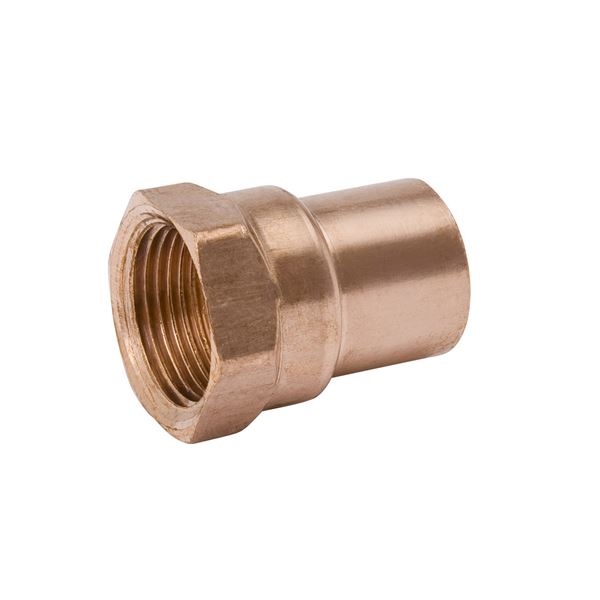

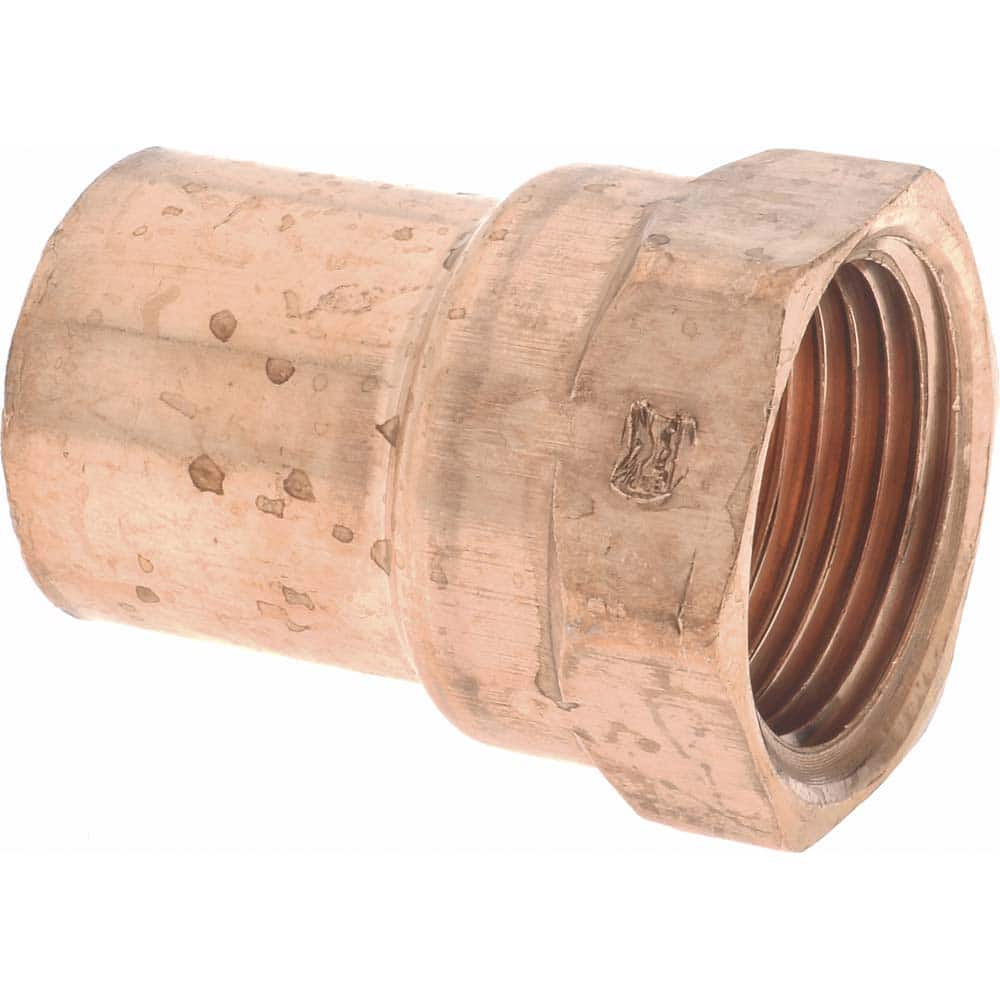

Mueller Industries W-01246 is a wrot copper solder-joint adapter that connects a 3/4 in cup (female solder) end to a 3/4 in female pipe tapered thread (FPT/NPT). The WC-402 style adapter measures approximately 1.61 in overall length with 1.34 in height and width, meets NSF 61G and multiple ASME standards, and is rated for typical potable water, plumbing, HVAC, and refrigeration service with 700 psi working pressure and 250°F temperature rating.

• Wrot copper construction; solder-joint (cup/female) to female pipe tapered thread (FPT/NPT)
• Approximate dimensions: overall length 1.61 in; overall height/width 1.34 in; outside diameter 7/8 x 3/4 in
• Meets NSF 61G and multiple ASME standards; 700 psi working pressure; 250°F temperature rating; seamless manufacture per ASTM B75

Product Highlights

3/4 in C x FPT wrot copper solder-joint adapter; WC-402/W-01246; NSF 61G and ASME compliant; 700 psi, 250°F

Product Information

Standard Information

• Brand: MUELLER INDUSTRIES
• Manufacturer Part Number: W-01246
• Country of Origin: United States

Technical Specifications

• Brand: Mueller Industries
• MPN: W-01246
• Series: WC-402
• Product Name: Adapter, C x FPT
• Fitting Type: Adapter
• Fitting Size: 3/4 in
• End Connection: C (cup/female solder) x FPT (female pipe tapered thread/NPT)
• Material: Wrot copper
• Method of Manufacture: Seamless
• Material Specification: ASTM B75
• Outside Diameter: 7/8 x 3/4 in
• Overall Length: 1.61 in
• Overall Height: 1.34 in
• Overall Width: 1.34 in
• Weight: 0.14 lb
• Working Pressure: 700 psi
• Temperature Rating: 250 deg F
• Standards: NSF 61G; ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1; MSS SP104; ANSI/ASME B16.22
• Country of Origin: United States
• UPC: 685768206927
