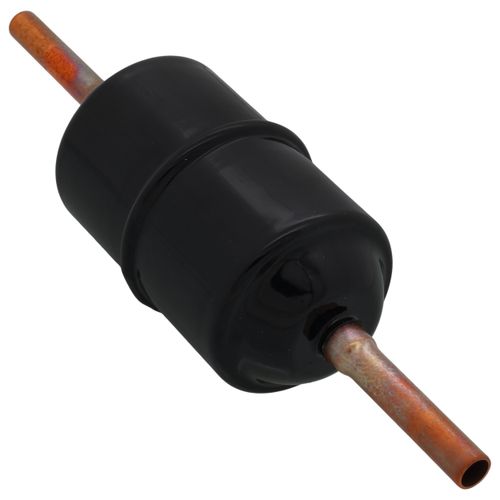

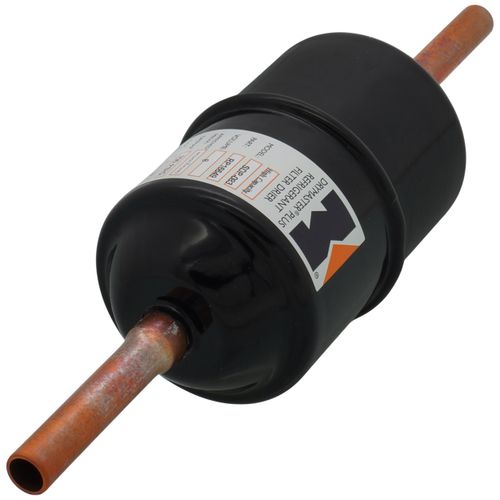

Mueller Industries RP16649 3/8 inches - 8 inches FTG Drymaster Liquid Line Filter Drier

Product Description

The Mueller Industries RP16649 is a 3/8" - 8" FTG Drymaster Liquid Line Filter Drier. It features a solid core design, a high-pressure shell, and connections. The high retention filter removes particulate as small as 25 microns. Operating temperature ranges from -40°F to 160°F.

• 3/8" Connection
• 160°F Max Temp
• -40°F Min Temp

Product Highlights

The Mueller Industries RP16649 filter drier is UL/cUL Listed and conforms to EU Pressure Equipment Directive and UK Pressure Equipment Regulation.

Product Information

Standard Information

• Brand: Mueller Industries
• Manufacturer Part Number: RP16649

Technical Specifications

• Connection Size: 3/8"
• Micron Rating: 25
• Product Type: Filter Drier
• Max Temp (F): 160°F
• Min Temp (F): -40°F
• Model: SDP-083
• Size: 3/8 in
• B: 8.16 in
• A: 4.33 in
• D1: 2.32 in
• D2: 2.92 in
• Operating Temperature: -40°F – 160°F/ -40°C – 70°C
• Solid core design: Yes
• High pressure shell and connections: Yes
• High retention filter for removal of particulate: as small as 25 microns
• UL/cUL Listed: Yes
• Conforms to EU Pressure Equipment Directive and UK Pressure Equipment Regulation: Yes
• Connection Type: 3/8 in FTG
• Manufacturer: Mueller Industries
• Manufacturer #: RP16649
• Series: DRYMASTER
• Temperature Rating: -40 to 160 deg F
• Suitable For Use With: Liquid Pump
• Volume: 8 cu-in
