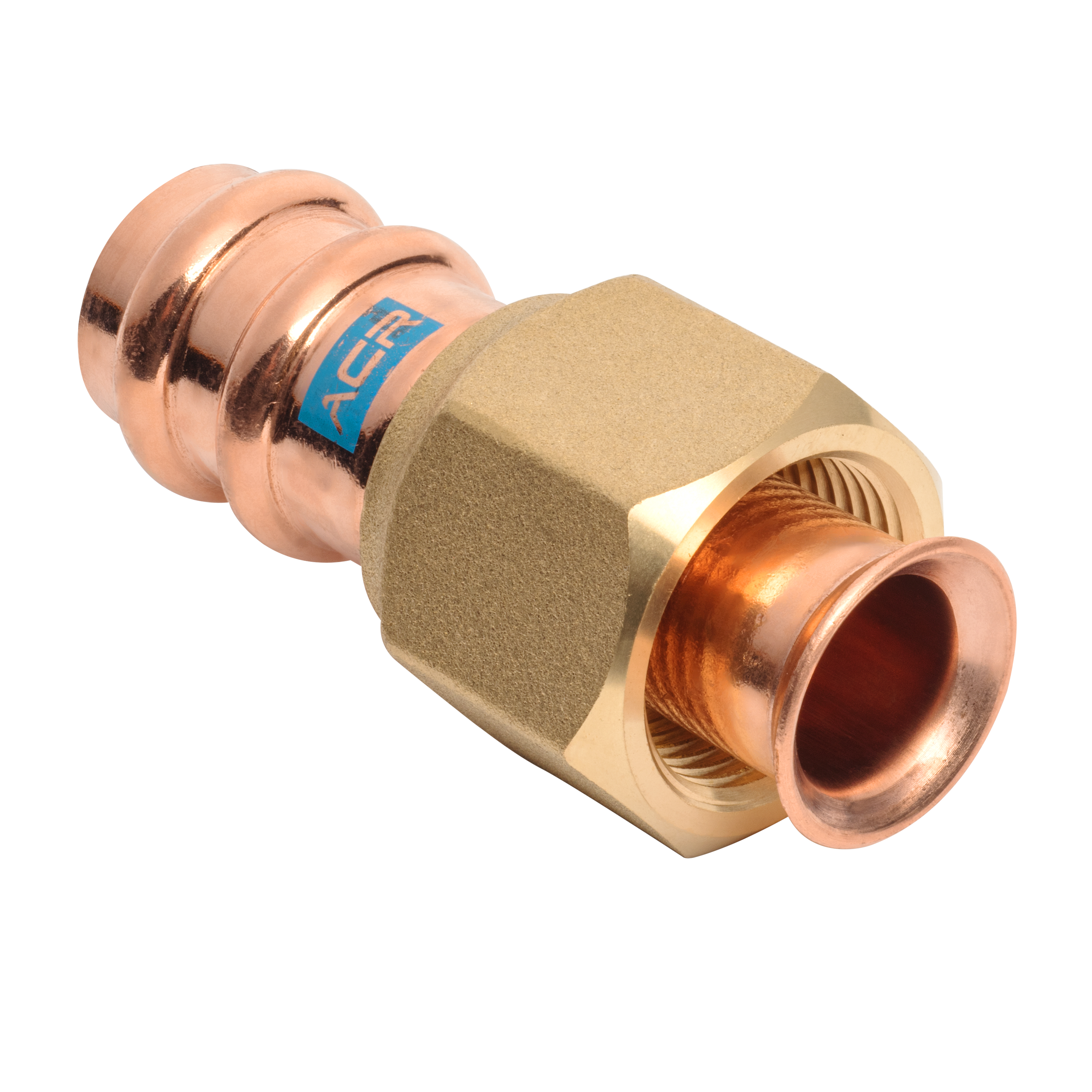

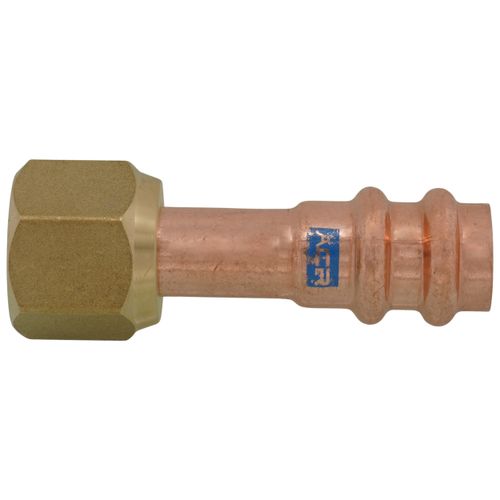

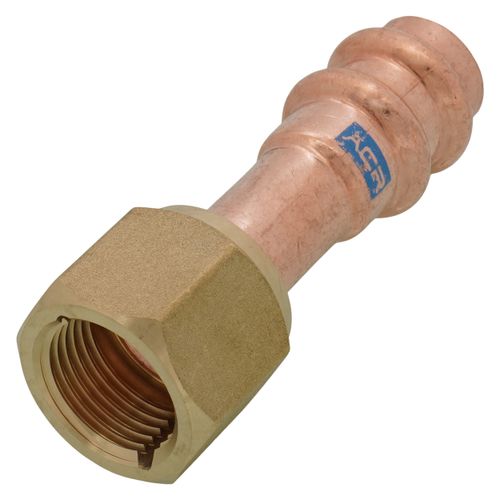

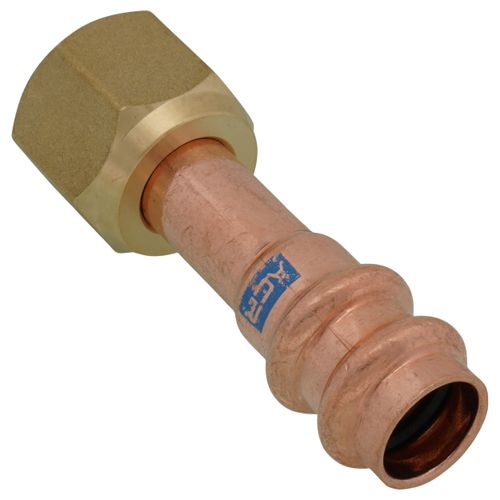

Mueller Industries RP15728 ACR Press SAE Adapter Flare x P (5/8 in)

Product Description

Mueller Industries RP15728 is an ACR press SAE adapter (flare x press) that adapts a 5/8 inch outside diameter refrigeration tube from a flare connection to a press connection. The adapter is copper and is approved for use with Type ACR, L, and K hard and soft copper tube. It is compatible with common refrigerants including R410A and is rated for operating temperatures from -40 F to 250 F and pressures up to 700 psi.

• Copper construction; transitions 5/8 in OD flare to ACR press connection for HVAC and refrigeration lines
• Compatible with Type ACR, L, K hard and soft copper tube and with R410A and common refrigerant gases and oils
• Press technologies: Two Ring Advanced Press (T.R.A.P.), DualSeal ring, TrapZone leak barrier, Force360 contour, Tri-Lock profile

Product Highlights

5/8 in OD copper ACR flare-to-press adapter; rated -40 F to 250 F and up to 700 psi; compatible with R410A; includes advanced press sealing features.

Product Information

Standard Information

• Brand: MUELLER INDUSTRIES
• Manufacturer Part Number: RP15728
• Country of Origin: United States

Technical Specifications

• Brand: MUELLER INDUSTRIES
• Manufacturer Part Number: RP15728
• Product Type: ACR press SAE adapter (Flare x Press)
• Material: Copper
• Tube Outer Diameter: 5/8 in
• End 1 Type: ACR Press
• End 1 Size: 5/8 in
• End 2 Type: SAE Flare
• End 2 Size: 7/8-14 in
• Compatible Tube Types: Type ACR, L, K hard and soft copper tube
• Compatible Refrigerants: R410A and common refrigerant gases and oils
• Operating Temperature Min: -40 F
• Operating Temperature Max: 250 F
• Max Pressure: 700 psi
• Connection Type: Press/Flare
• Country of Origin: United States
• UPC: 30685768449172
• Features: Two Ring Advanced Press (T.R.A.P.), DualSeal ring design, TrapZone leak barrier, Force360 press contour, Tri-Lock press profile; compatible with leading full-size press tools
