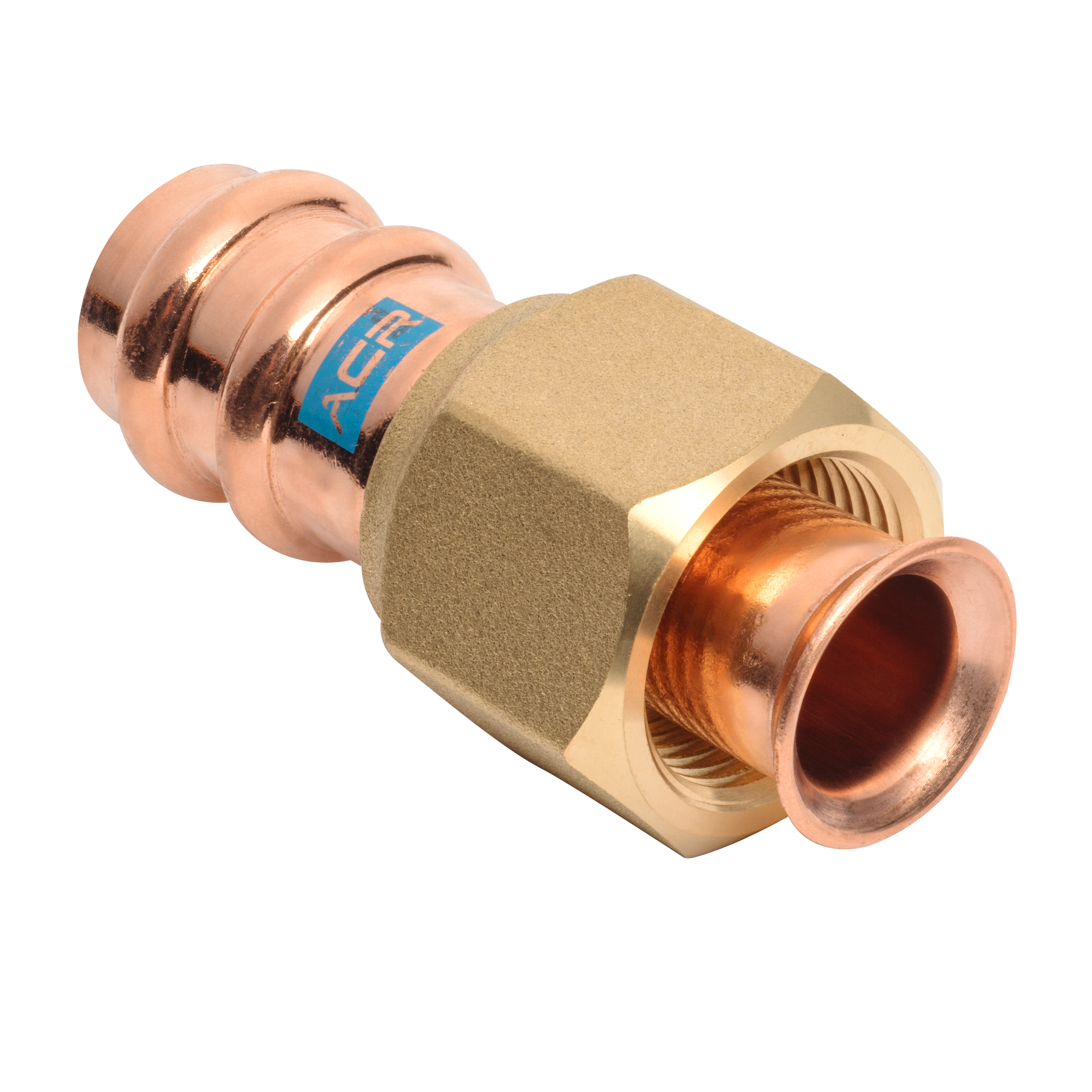

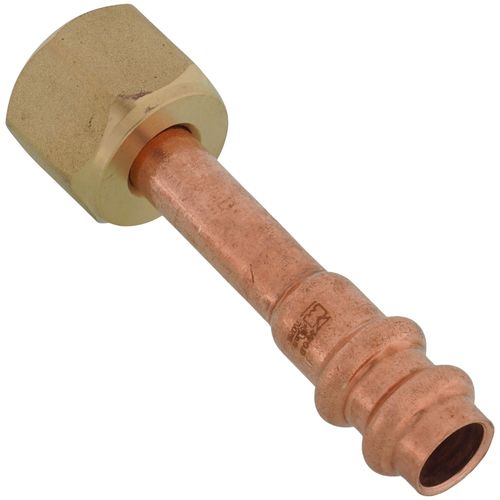

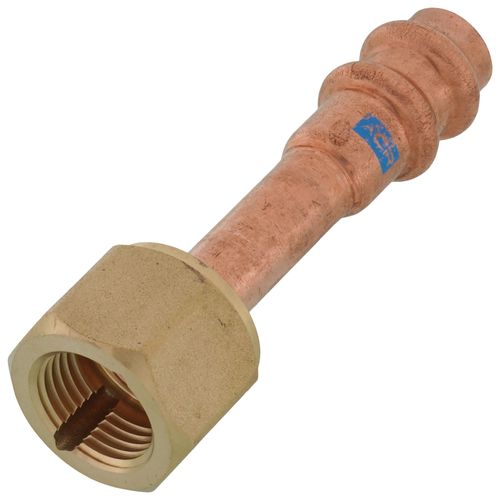

Mueller Industries RP15726 ACR Press SAE Adapter Flare X P 3/8 inch OD

Product Description

The MUELLER INDUSTRIES RP15726 is a 3/8 inch OD ACR Copper Press SAE Flare adapter. This copper fitting is designed for HVACR applications, featuring an ACR Press end and a Flare second end. It is suitable for use with Type ACR, L, K hard and soft copper tube, and compatible with various refrigerant gases and oils. The adapter operates within a temperature range of -40°F to 250°F and handles pressures up to 700 PSI.

• Approved for use with Type ACR, L, K hard and soft copper tube.
• Features Industry-leading Two Ring Advanced Press (T.R.A.P.) Technology.
• Compatible with R410A and other commonly used refrigerant gases and oils.

Product Highlights

Utilizes T.R.A.P. Technology and DualSeal Ring Design for secure and efficient connections in HVACR systems.

Product Information

Standard Information

• Brand: MUELLER INDUSTRIES
• Manufacturer Part Number: RP15726

Technical Specifications

• Brand: MUELLER INDUSTRIES
• MPN: RP15726
• Fitting Type: Adapter
• Nominal Size: 3/8 inch
• End Type: ACR Press
• End Size: 3/8 inch
• Second End Type: Flare
• Second End Size: 3/8 inch
• Material: Copper
• Max Pressure: 700 PSI
• Min Operating Temperature: -40°F
• Max Operating Temperature: 250°F
• Sealing Ring Temperature Rating: -40°F to 300°F
• Approved Applications: Air Conditioning, Heat Pump, VRF and VRV, Light Commercial Refrigeration, Non-Potable Water, Ethylene Glycol
• Approved Refrigerants: R-125, R-134a, R-32, R-404A, R-407A, R-407C, R-407F, R-407H, R-410A, R-417A, R-421A, R-422B, R-422D, R-427A, R-438A, R-444A, R-447A, R-447B, R-448A, R-449A, R-450A, R-452A, R-452B, R-452C, R-454A, R-454B, R-454C, R-457A, R-459A, R-507A, R-513A, R-513B, R-718, R-1234ze, R-1234yf, R-290, R-600A
• Series: RP
