Mueller Industries RP15725 ACR Flr X P Sae ACR Press Fitting 1/4

Product Description

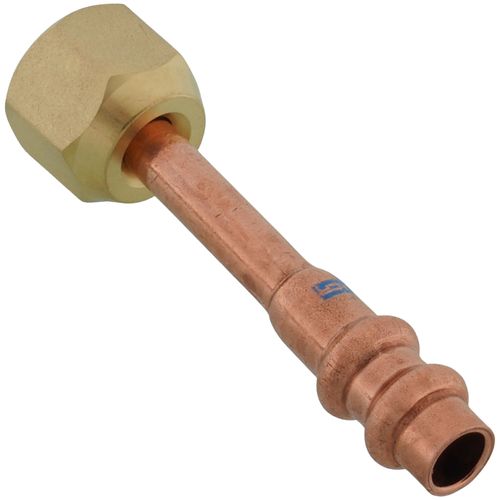

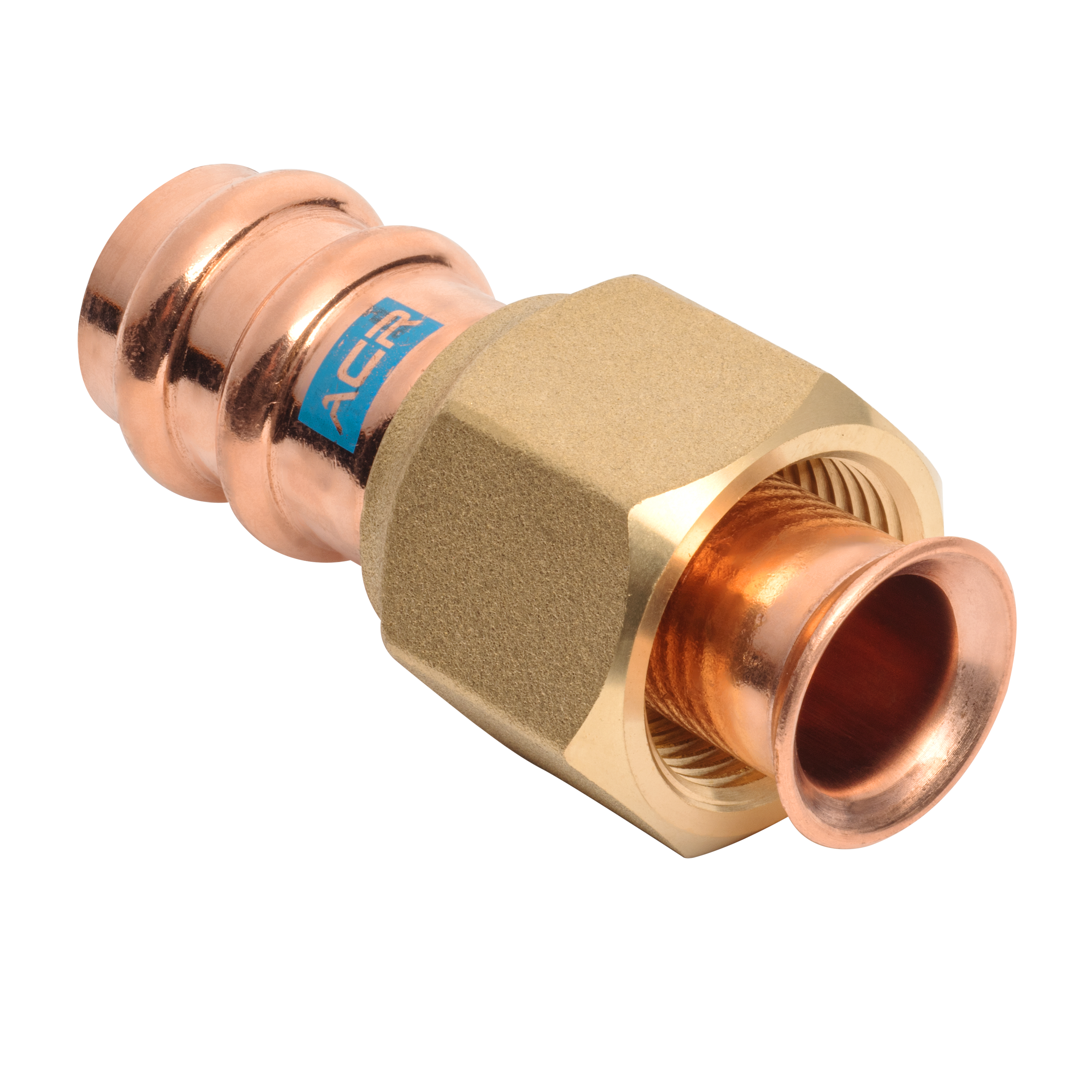

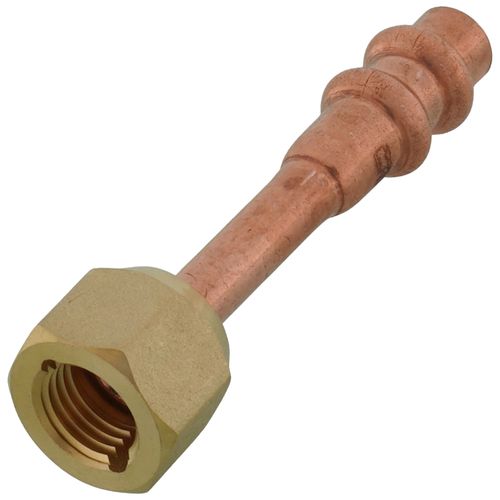

The MUELLER INDUSTRIES RP15725 is a 1/4 inch OD ACR Copper Press SAE Flare adapter. This press fitting is designed for HVACR applications, connecting with a Press x Flare end style. It is constructed from copper and can withstand a continuous operating pressure of 700 PSI. The adapter operates within a temperature range of -40°F to 250°F, making it suitable for various refrigerant systems.

• Approved for use with Type ACR, L, K hard and soft copper tube.
• Features Industry-leading Two Ring Advanced Press (T.R.A.P.) Technology with DualSeal Ring Design.
• Compatible with R410A and other commonly used refrigerant gases and oils.

Product Highlights

This copper press fitting offers superior sealing and joint strength for HVACR applications, compatible with various refrigerants and press tools.

Product Information

Standard Information

• Brand: MUELLER INDUSTRIES
• Manufacturer Part Number: RP15725

Technical Specifications

• Brand: MUELLER INDUSTRIES
• MPN: RP15725
• UPC: 30685768449141
• Max Operating Temperature: 250°F
• Max Pressure: 700 PSI
• Nominal Size: 1/4"
• Material: Copper
• Min Operating Temperature: -40°F
• Sealing Ring Temperature Rating: -40°F to 300°F
• End Style: Press x Flare
• Fitting/Connector Type: Adapter
