Mueller Industries RP10145 5/8 Acr Press x Press Coupling (5 Pack) RP10145

Product Description

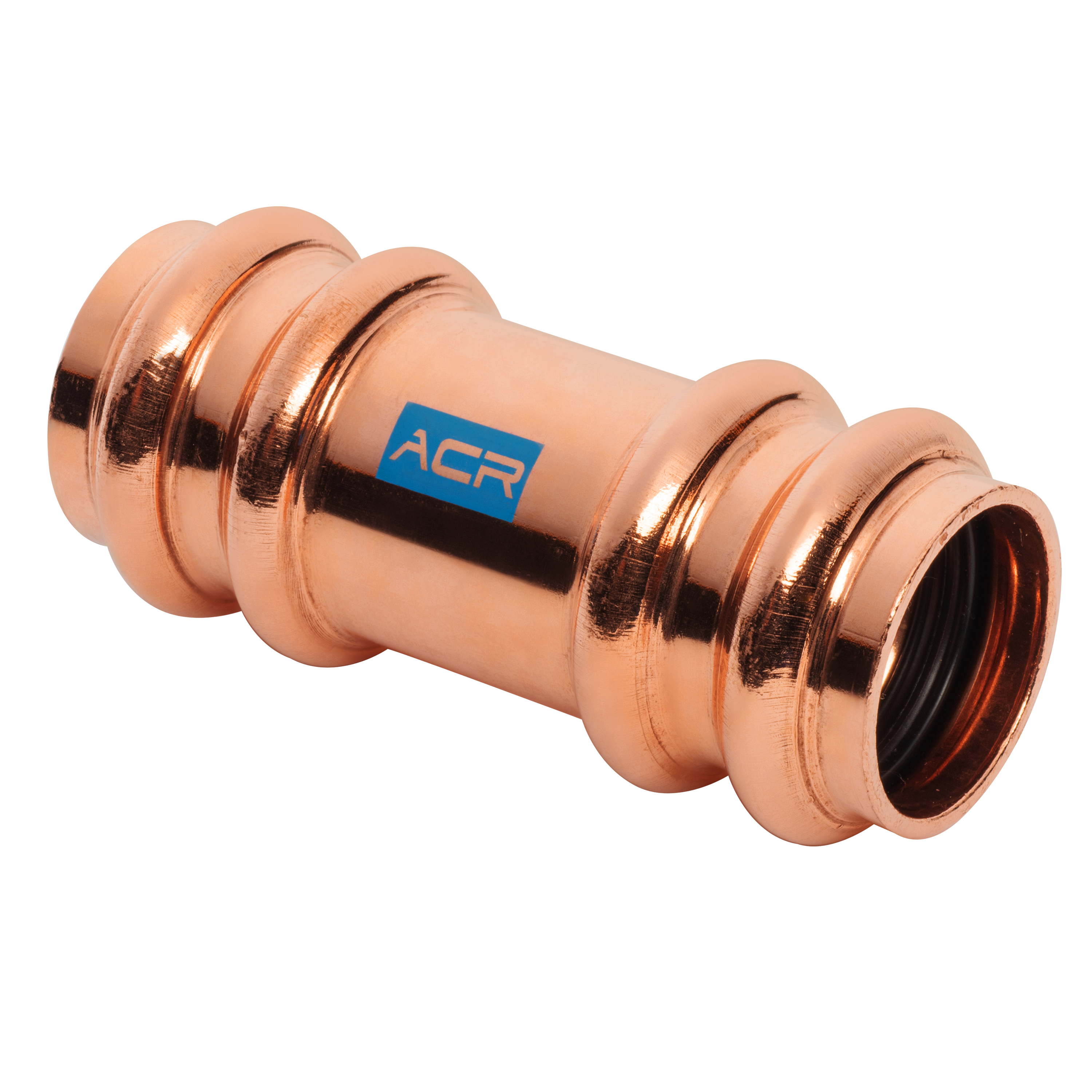

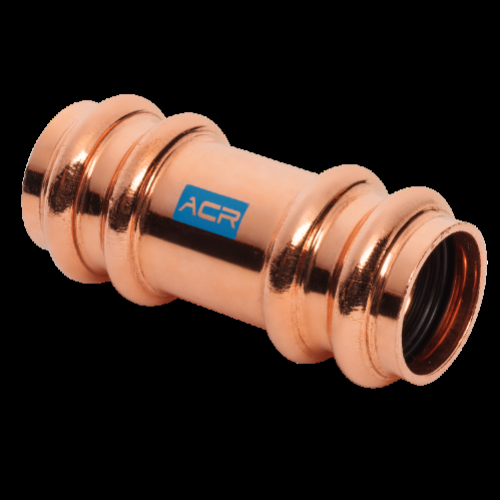

The Mueller Industries RP10145 is a 5/8 inch Acr press coupling with an integrated stop, designed for press x press connections in air conditioning and refrigeration systems. It is constructed of copper for use with Type ACR, L, and K hard and soft copper tubing and is compatible with common refrigerants including R-410A. The coupling uses advanced two-ring press technology and is offered as a pack of 5.

• Press x press coupling with integrated stop and two-ring TRAP press technology for improved sealing and joint strength
• Copper construction for use with Type ACR, L, and K tubing; compatible with R-410A and common refrigerant oils
• Rated to 700 psi and -40 to 250 °F; overall dimensions approximately 2.56 in L x 0.96 in W x 0.96 in H; pack quantity: 5

Product Highlights

5/8 in Acr press x press copper coupling with staked stop, TRAP/DuoSeal technology, 700 psi, -40 to 250 °F; sold in packs of 5.

Product Information

Standard Information

• Brand: MUELLER INDUSTRIES
• Manufacturer Part Number: RP10145

Technical Specifications

• Brand: MUELLER INDUSTRIES
• MPN: RP10145
• Product Type: Coupling
• Connection Type: Press x Press
• End Size: 5/8 in OD
• Material: Copper
• For Use With: Type ACR, L, K hard and soft copper tube
• Pressure Rating: 700 psi
• Operating Temperature: -40 to 250 °F
• Dimensions: 2.56 in L x 0.96 in W x 0.96 in H
• Weight: 0.13 lb
• Pack Quantity: 5
• Features: Two-ring TRAP press technology; DuoSeal ring design; TrapZone leak barrier; Force360 press contour; Tri-Lock press profile
• Compatible Refrigerants: R-410A and other commonly used refrigerant gases and oils
• UPC: 685768000000
