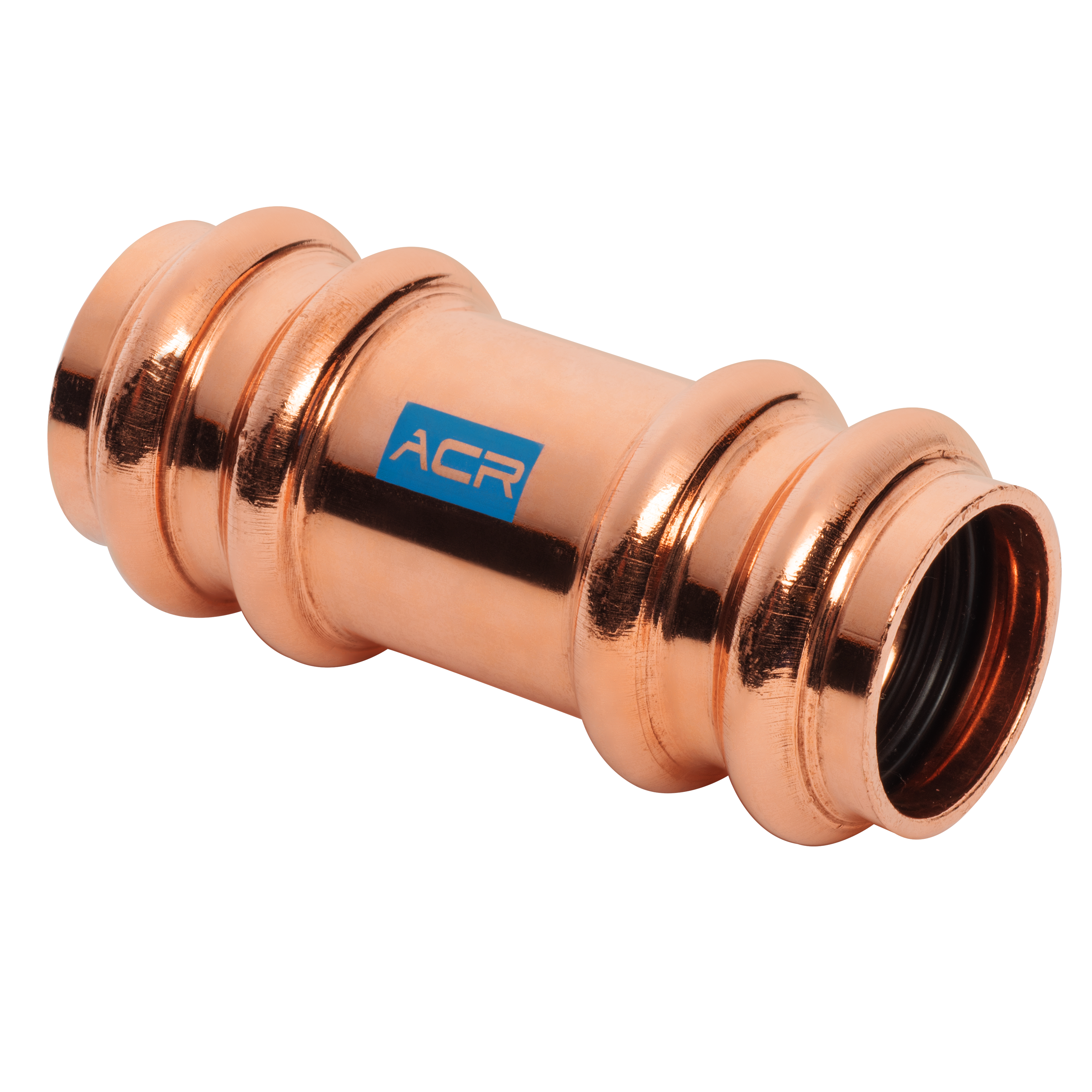

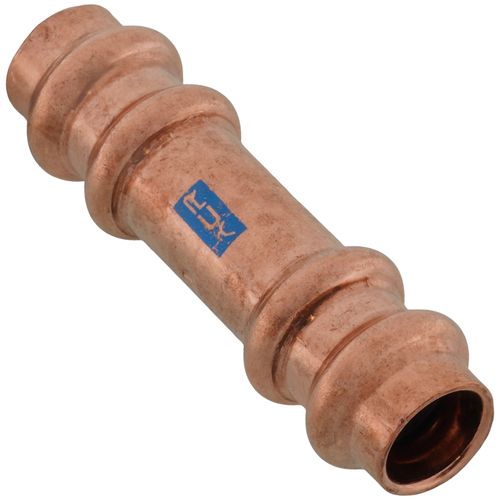

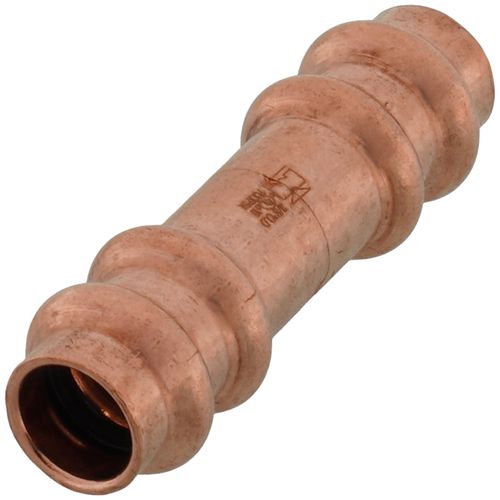

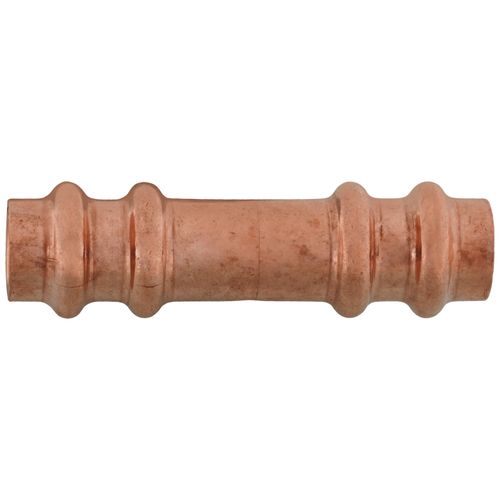

Mueller Industries RP10143 ACR Press Coupling with Stop, Press x Press, 3/8 inch OD, Pack of 5

Product Description

The MUELLER INDUSTRIES RP10143 is a 3/8 inch ACR Copper Press Coupling with Stop, designed for air conditioning applications. This coupling eliminates the need for brazing with heat or nitrogen, simplifying installation. It features a double O-ring setup for secure connections and is approved for use with Type ACR, L, and K hard and soft copper tubes. The coupling operates within a temperature range of -40°F to 250°F and handles up to 700 PSI pressure.

• Features industry-leading Two Ring Advanced Press (T.R.A.P.) Technology for secure connections.
• DualSeal Ring Design provides superior sealing and joint strength with 200% more surface contact.
• Compatible with R410A and other commonly used refrigerant gases and oils.

Product Highlights

Designed for air conditioning work, this coupling offers reliable performance and simplifies installation by eliminating brazing.

Product Information

Standard Information

• Brand: MUELLER INDUSTRIES
• Manufacturer Part Number: RP10143
• Country of Origin: United States

Technical Specifications

• Brand: MUELLER INDUSTRIES
• MPN: RP10143
• UPC: 30685768444177
• Type: ACR Press Coupling with Stop, Press x Press
• OD: 3/8 inch
• Connection Type: Press|Press
• Material: Copper
• Series: DuoSeal
• Operating Temperature Minimum: -40 °F
• Operating Temperature Maximum: 250 °F
• Maximum Pressure: 700 psi
• For Use With: Type-ACR, L, K Hard and Soft Copper Tubes
