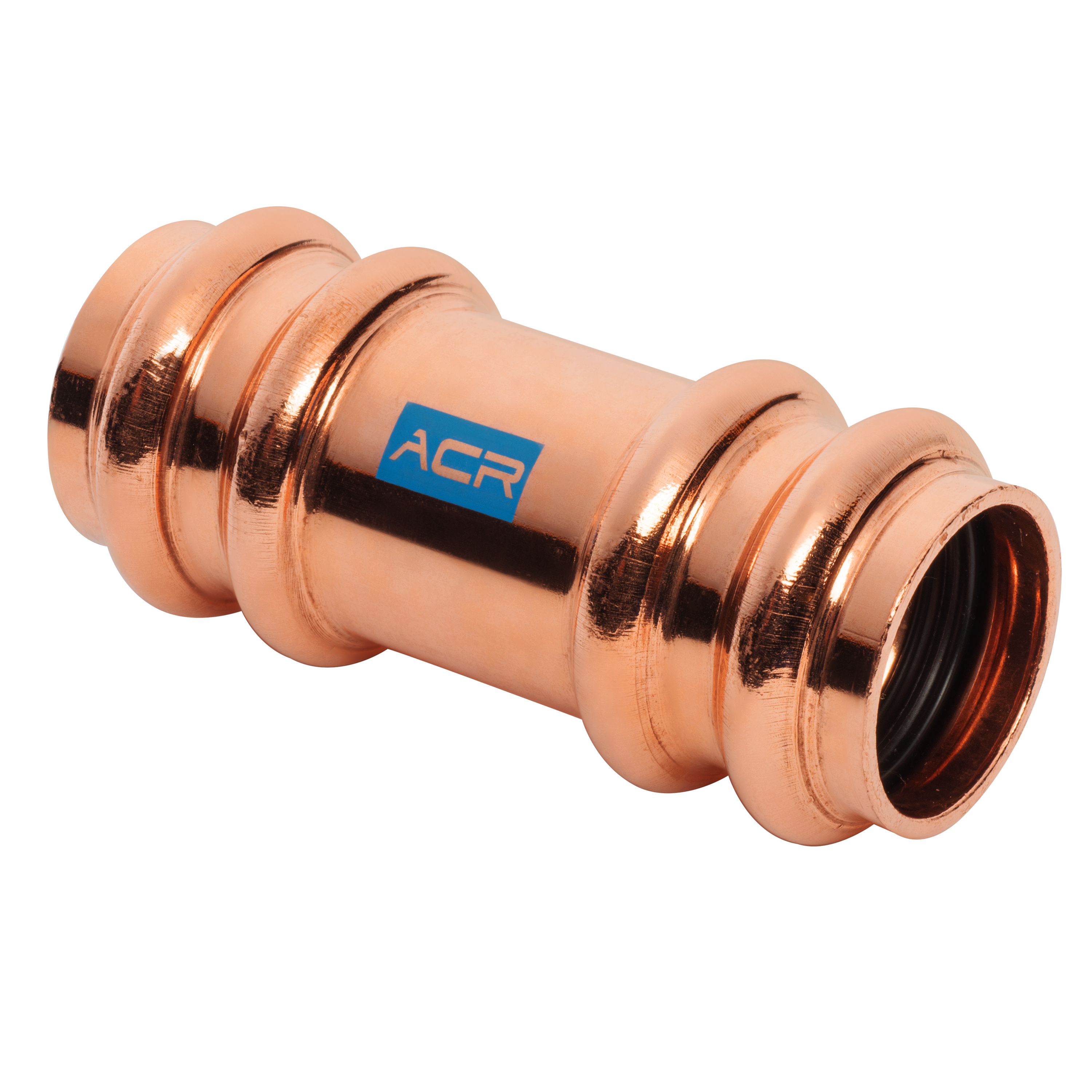

Mueller Industries RP10143 ACR Press Coupling with Stop, Press x Press, 3/8 inch OD, Pack of 5

Product Description

MUELLER INDUSTRIES RP10143 is an ACR Press Coupling with Stop, designed for secure connections in refrigeration systems. This 3/8 inch OD, Press x Press coupling is made of copper and is suitable for use with Type ACR, L, and K hard and soft copper tubes. It operates within a temperature range of -40 to 250 degrees Fahrenheit and can withstand pressures up to 700 psi. This coupling is compatible with R410A and other common refrigerant gases.

• Approved for use with Type ACR, L, K hard and soft copper tube.
• Features Industry-leading Two Ring Advanced Press (T.R.A.P.) Technology.
• DualSeal Ring Design provides superior sealing and joint strength with 200% more surface contact.

Product Highlights

This copper press coupling features advanced sealing technologies for reliable refrigeration system connections.

Product Information

Standard Information

• Brand: MUELLER INDUSTRIES
• Manufacturer Part Number: RP10143

Technical Specifications

• MPN: RP10143
• Brand: MUELLER INDUSTRIES
• UPC: 30685768444177
• Type: ACR Press Coupling with Stop
• OD: 3/8 inch
• Series: DuoSeal
• Weight: 0.05 lb
• Material: COPPER
• Operating Temperature Min: -40 °F
• Operating Temperature Max: 250 °F
• Operating Pressure Max: 700 psi
• End Type: ACR Press
• End Size: 3/8 in
• Second End Type: ACR Press
• Second End Size: 3/8 in
• Overall Length: 2.17 in
• Overall Height: 0.63 in
• Overall Width: 0.63 in
• Dimension X: 0.08 in
• Connection Type: Press x Press
• For Use With: Type-ACR, L, K Hard and Soft Copper Tubes
