Mueller Industries RP10141 Acr press coupling 1/4 in (Pack of 5) RP10141

Product Description

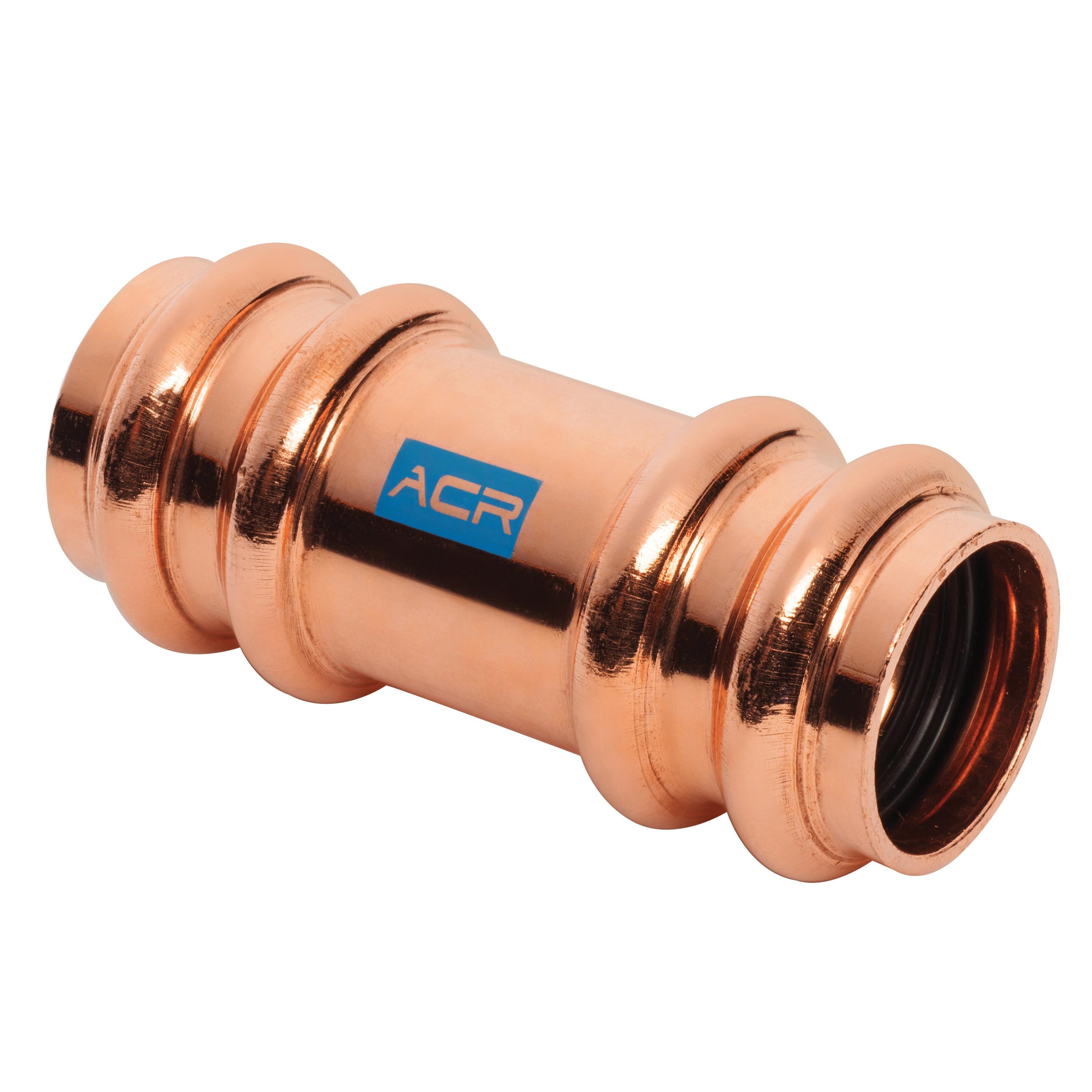

Mueller Industries RP10141 is an Acr press coupling with an integrated stop, designed for press-to-press connections on 1/4 inch outside diameter copper tubing. Machined from copper, the fitting is rated to 700 psi and has an operating temperature range of -40 to 250 F. It uses Streamline ACR advanced press technology and is compatible with Type ACR, L, K tubing and refrigerants including R-410A.

• Press x press coupling with integrated stop for 1/4 in OD copper tubing
• Copper construction, pressure rating 700 psi, temperature range -40 to 250 F
• Streamline ACR TRAP technology (DualSeal, TrapZone, Force360, Tri-Lock); compatible with R-410A

Product Highlights

1/4 in press x press copper coupling with integrated stop and 700 psi rating

Product Information

Standard Information

• Brand: MUELLER INDUSTRIES
• Manufacturer Part Number: RP10141

Technical Specifications

• Brand: MUELLER INDUSTRIES
• MPN: RP10141
• Product Name: ACR press coupling with stop
• Fitting Type: Coupling
• Connection Type: Press x Press
• End Size: 1/4 in
• Material: Copper
• Pressure Rating: 700 psi
• Temperature Rating: -40 to 250 F
• For Use With: Type ACR, L, K hard and soft copper tube
• Compatible Refrigerants: R-410A and commonly used refrigerant gases and oils
• Technology Features: Two-ring Advanced Press (TRAP), DualSeal, TrapZone, Force360, Tri-Lock
• Overall Length: 2.01 in
• Overall Width: 0.48 in
• Overall Height: 0.48 in
• Weight: 0.03 lb
• Qty Pcs / Bag: 5
• MPN/Model: RP10141
