Product Description

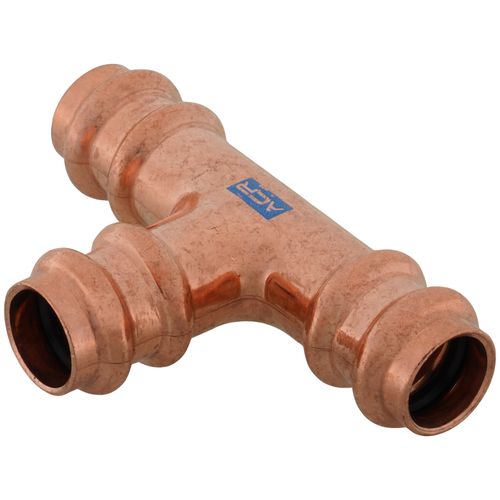

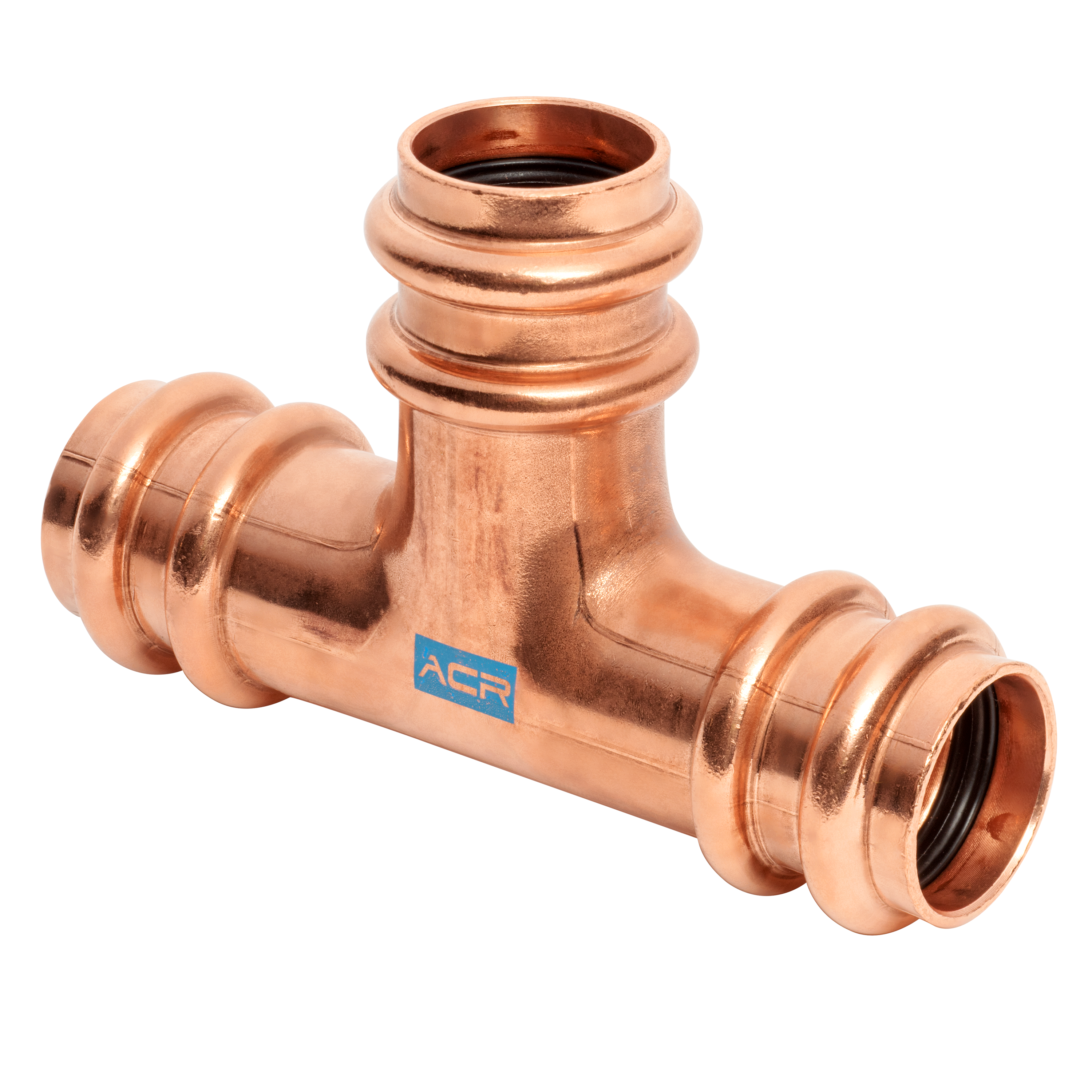

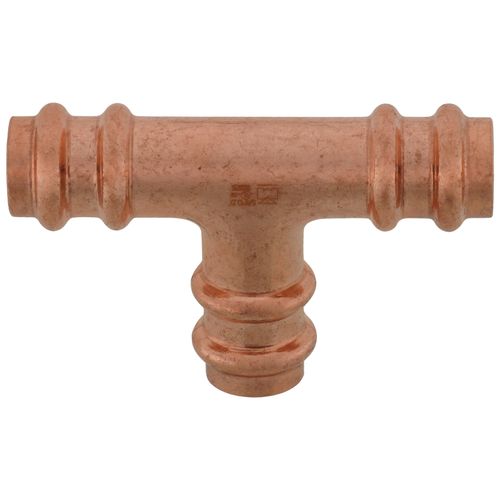

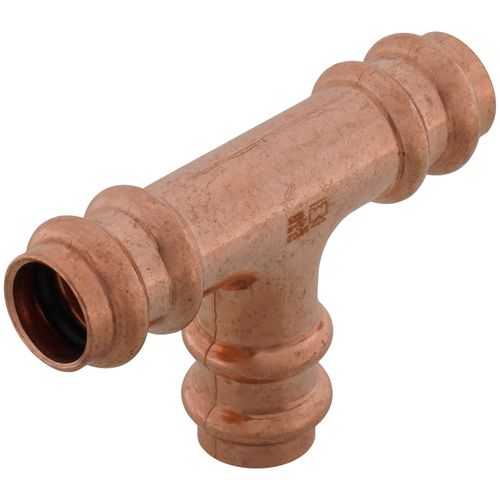

Mueller Industries RP04006 is an ACR press tee with P x P x P connections designed for 5/8 in outside diameter copper tubing. Constructed of copper, the fitting uses the Streamline ACR press system with Two Ring Advanced Press (T.R.A.P.), a DualSeal ring and a TrapZone leak barrier to form press joints for refrigeration and air conditioning lines. Rated to 700 psi and for -40 F to 250 F operation.
- P x P x P press tee for 5/8 in outside diameter copper tubing; approved for Type ACR, L, and K hard and soft copper tube.
- Streamline ACR press system features: Two Ring Advanced Press (T.R.A.P.), DualSeal ring, TrapZone leak barrier, Force360 press contour and Tri-Lock press profile.
- Operating pressure 700 psi; temperature range -40 F to 250 F; compatible with R410A and common refrigerant gases and oils and with leading full-size press tools.
Product Highlights
5/8 in copper ACR press tee (P x P x P) with T.R.A.P. and DualSeal for improved sealing, TrapZone leak barrier, rated 700 psi and -40 F to 250 F, compatible with R410A.
Product Information
Standard Information
-
Brand: MUELLER INDUSTRIES
-
Manufacturer Part Number: RP04006
Technical Specifications
-
Brand: Mueller Industries
-
MPN: RP04006
-
UPC: 685768449102
-
Product Type: Tee
-
Material: Copper
-
Connection Type: ACR press
-
Connection Configuration: P x P x P
-
Size (Outside Diameter): 5/8 in
-
Compatible Tube Types: Type ACR, L, K hard and soft copper tube
-
Press Technology: Two Ring Advanced Press (T.R.A.P.)
-
Seal Design: DualSeal ring
-
Leak Barrier: TrapZone
-
Press Contour: Force360
-
Press Profile: Tri-Lock
-
Compatible Refrigerants: R410A and other common refrigerant gases and oils
-
Compatible Tools: Leading full-size press tools and proprietary Streamline ACR press jaws
-
Operating Temperature Min: -40 F
-
Operating Temperature Max: 250 F
-
Max Pressure: 700 psi
-
Weight: 0.47 lb
-
Dimensions (L x W x H): 3.58 in x 2.96 in x 2.27 in
