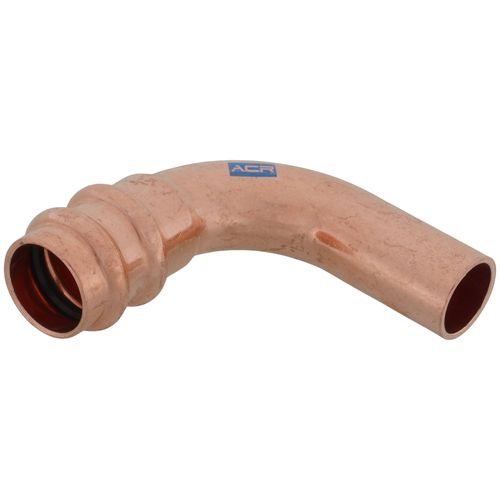

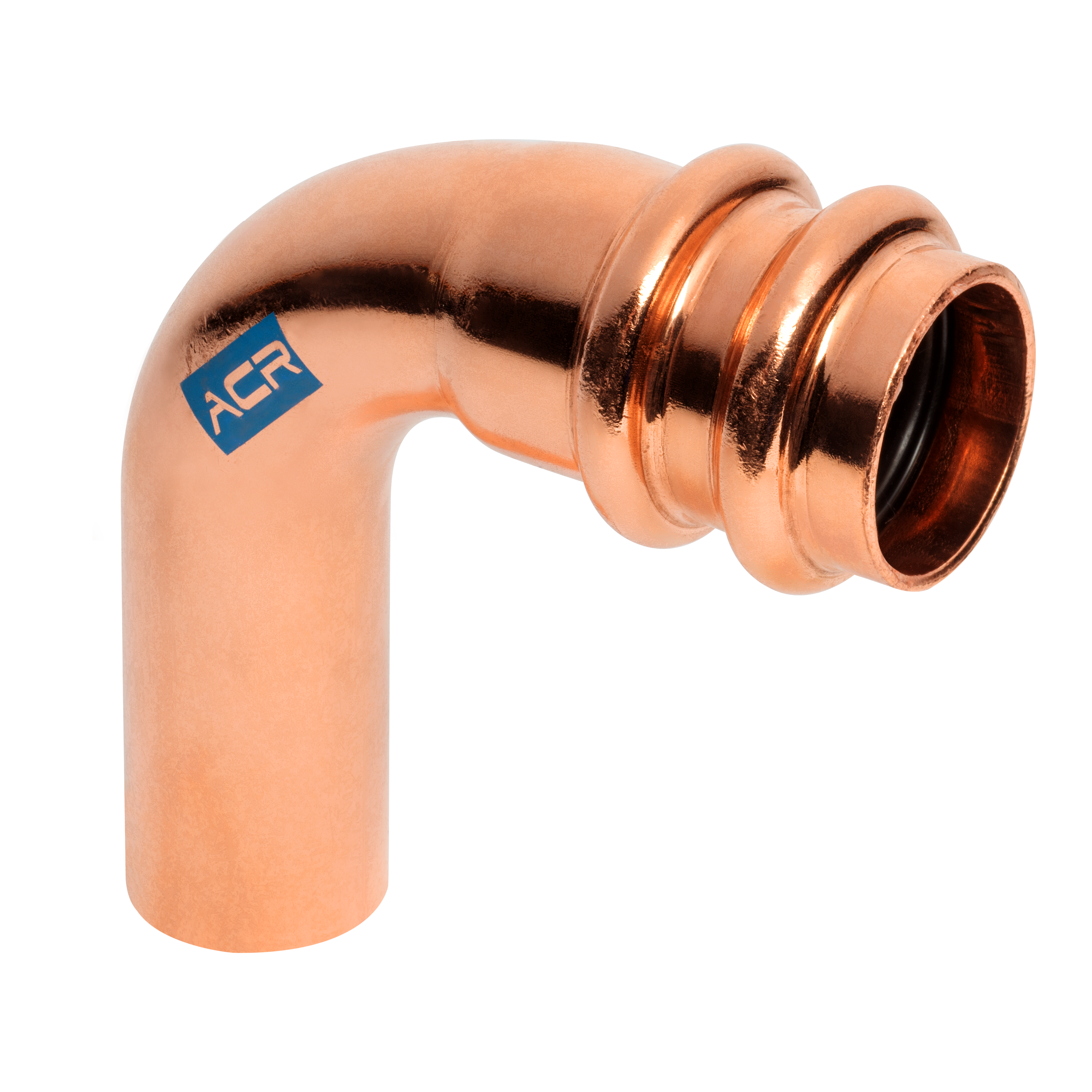

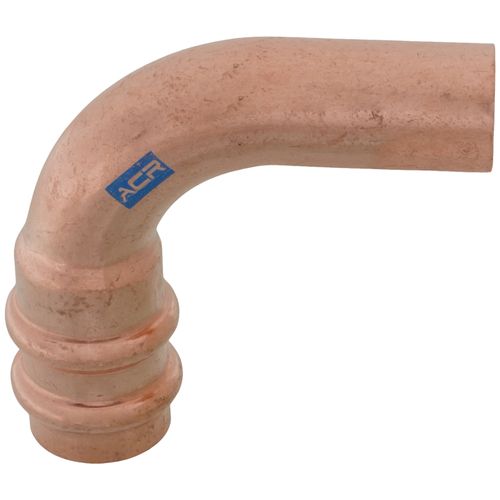

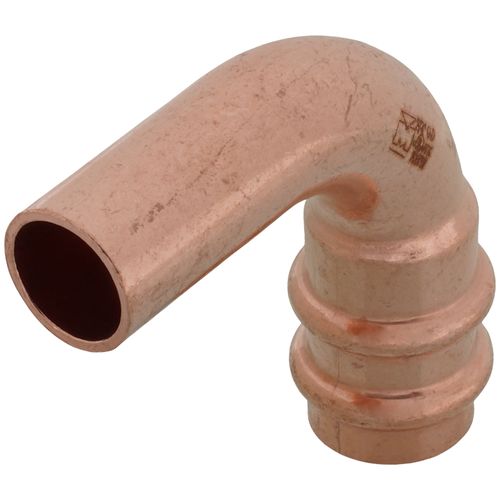

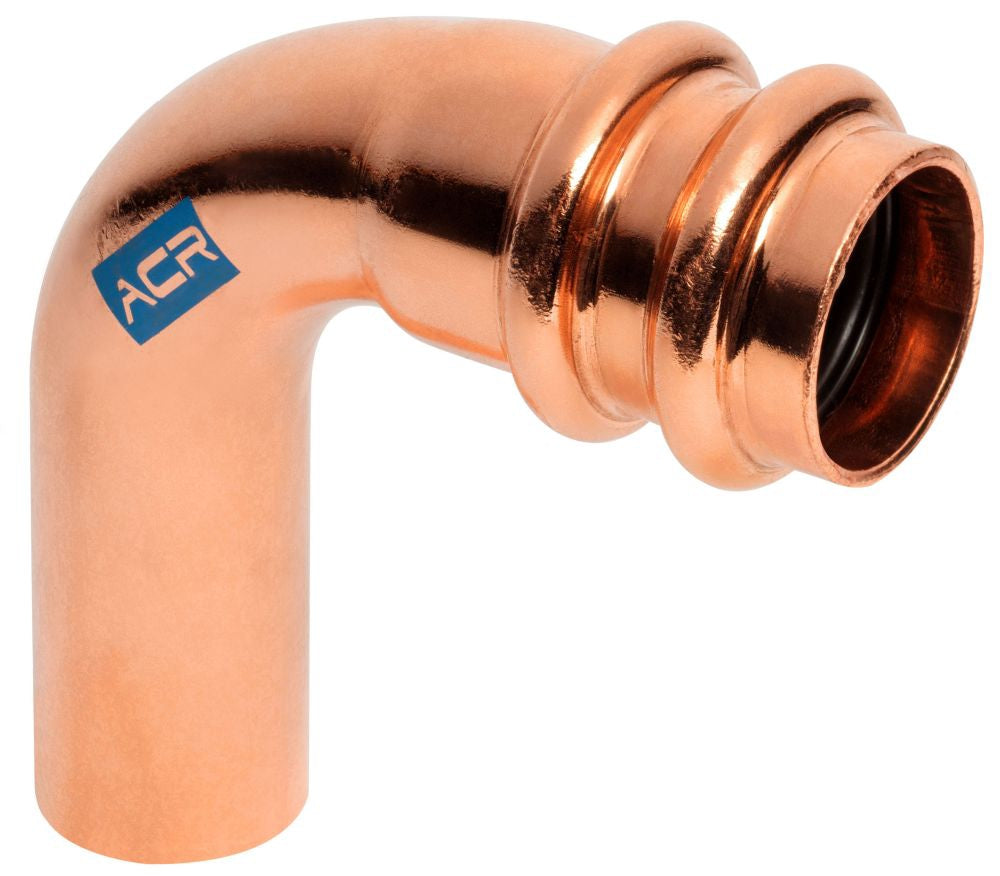

Mueller Industries RP02828 3/4 ACR Ftg x P 90 Elbow Press Fitting (3/4 in OD, 90 Degree)

Product Description

Mueller Industries RP02828 is a 3/4-inch ACR press 90 degree elbow fitting with a female thread to press connection for 3/4 in outside diameter copper tubing. Constructed of copper and approved for use with Type ACR, L, and K hard and soft copper tube, it is compatible with common refrigerants including R410A. Operating range is -40 to 250 F with a maximum working pressure of 700 psi and an LR street design for extended reach.

• 3/4 in OD female thread to ACR press (FTG x P) 90 degree elbow; LR (long reach) street configuration
• Copper construction; approved for Type ACR, L, K hard and soft copper tube; compatible with R410A and common refrigerant oils
• Operating temperature -40 to 250 F, maximum working pressure 700 psi; incorporates Streamline press technology features

Product Highlights

3/4 in ACR press 90 degree LR street elbow, copper, 700 psi, -40 to 250 F

Product Information

Standard Information

• Brand: MUELLER INDUSTRIES
• Manufacturer Part Number: RP02828

Technical Specifications

• Brand: MUELLER INDUSTRIES
• Manufacturer Part Number: RP02828
• Product Type: 90 degree elbow
• Design: LR (Long Reach) street
• Material: Copper
• Size (Outside Diameter): 3/4 in
• Connection Type: Female thread (FTG) x ACR press (P)
• Compatible Tube Types: Type ACR, L, K hard and soft copper tube
• Compatible Refrigerants and Oils: R410A and other common refrigerant gases and oils
• Operating Temperature (Min): -40 F
• Operating Temperature (Max): 250 F
• Maximum Operating Pressure: 700 psi
• Weight: 0.212 lb
• Overall Length: 2.72 in
• Overall Height: 2.96 in
• Overall Width: 1.07 in
• UPC: 685768448921
• Compatible Tools: Compatible with Streamline ACR press jaws and leading full-size press tools
• Key Press Technology Features: Two Ring Advanced Press (T.R.A.P.), DualSeal ring design, TrapZone leak barrier, Force360 press contour, Tri-Lock press profile
