Product Description

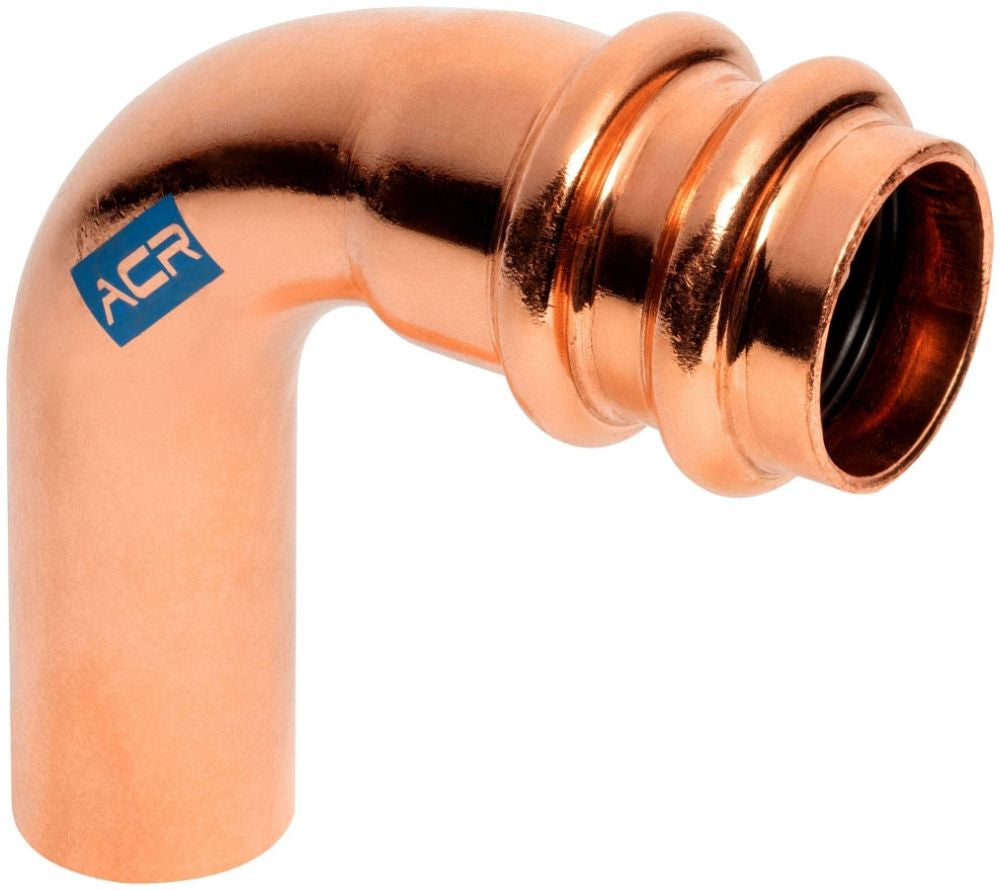

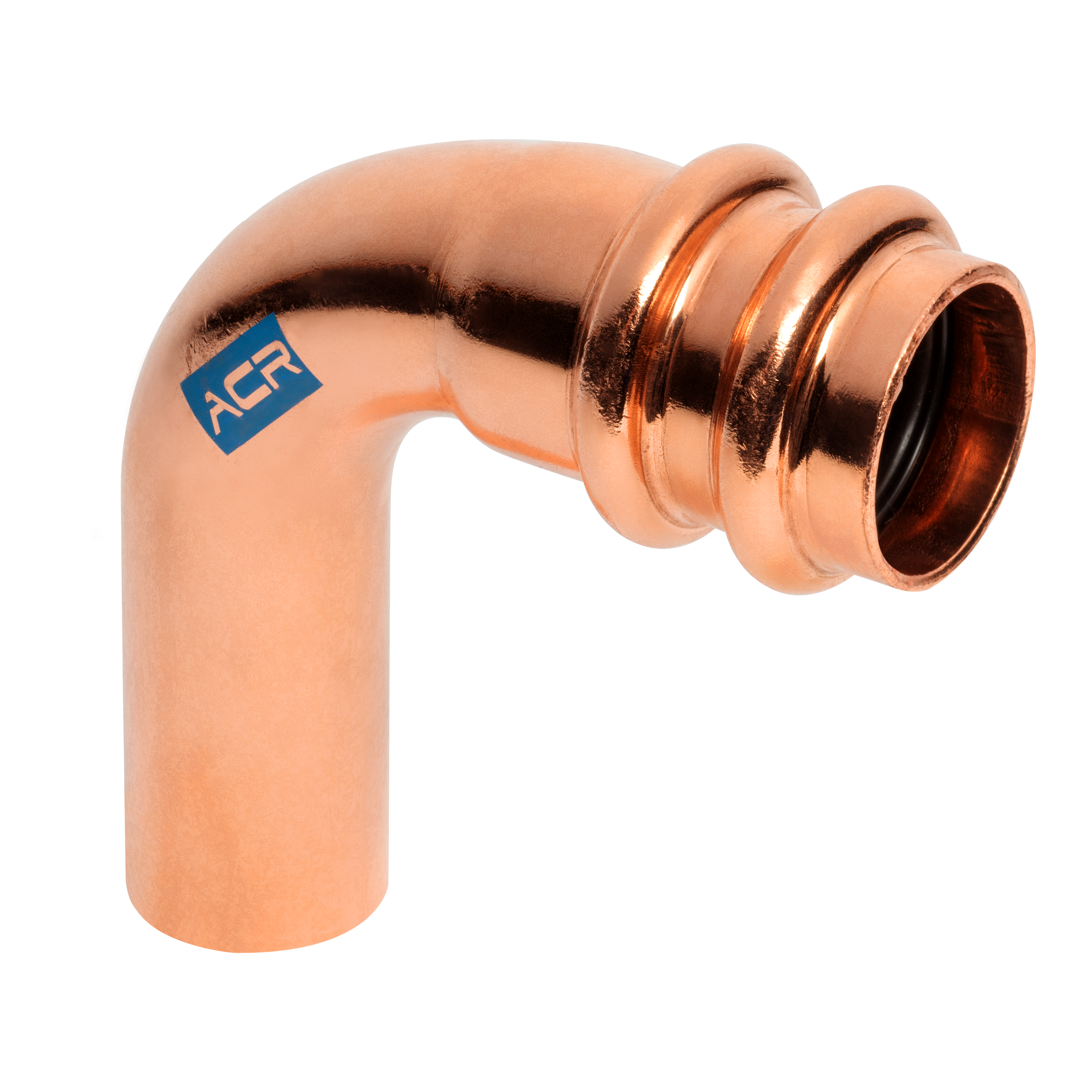

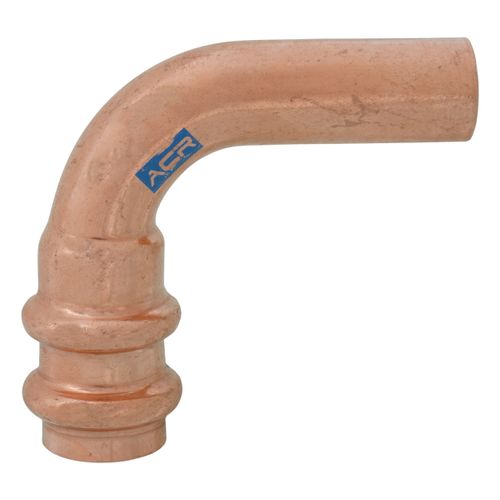

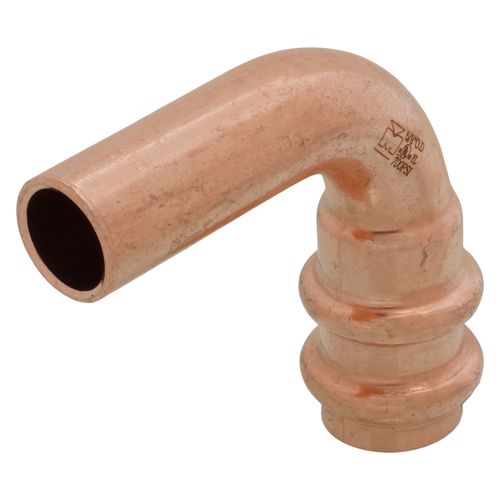

Mueller Industries RP02822 is a 5/8 in ACR press elbow for refrigeration and HVAC applications. The RP02822 is a long radius (LR) street 90 degree elbow with a female fitting to ACR press connection, constructed of UNS C12200 copper with an HNBR sealing ring. It is rated 700 psi operating (2100 psi burst), -40 to 250 F, and is compatible with R410A and common refrigerant gases and oils.
- 5/8 in outside diameter, FTG x ACR press connection, long radius 90 degree street elbow
- UNS C12200 copper body with HNBR sealing ring; approved for Type ACR, L, and K copper tube
- Operating pressure 700 psi (2100 psi burst); temperature range -40 to 250 F; compatible with R410A
Product Highlights
ACR press 90 degree street elbow, 5/8 in OD, T.R.A.P./DualSeal/TrapZone/Force360/Tri-Lock technologies
Product Information
Standard Information
-
Brand: MUELLER INDUSTRIES
-
Manufacturer Part Number: RP02822
Technical Specifications
-
Brand: MUELLER INDUSTRIES
-
MPN: RP02822
-
Item Number: RP02822
-
Product Type: 90 Degree Elbow
-
Connection Type: Press
-
End Connection: Female fitting (FTG) x ACR press (P)
-
Size / End Size: 5/8 in OD
-
Angle: 90 Degree
-
Configuration: Long radius (LR) street elbow
-
Material: UNS C12200 copper
-
Sealing Material: HNBR
-
Operating Pressure (Max): 700 psi (operating)
-
Burst Pressure: 2100 psi (burst)
-
Operating Temperature Range: -40 to 250 F
-
Compatible Refrigerants: R410A and other common refrigerant gases and oils
-
Approved Tube Types: Type ACR, L, and K hard and soft copper tube
-
Press Technologies / Features: Two Ring Advanced Press (T.R.A.P.), DualSeal ring design, TrapZone leak barrier, Force360 press contour, Tri-Lock press profile
-
Overall Length: 2.42 in
-
Overall Height: 2.67 in
-
Overall Width: 0.96 in
-
Weight: 0.16 lb
-
UPC: 30685768448915
-
Applicable Standards: ASME B31.5; ASHRAE 15; IMC; IRC; ISO; ICC-ES-PMG; UMC; UL 109/207/1963; CSA C22.2
-
Applications: Air conditioning, heat pump, HVAC and VRF systems, light commercial refrigeration, non-potable water, ethylene glycol
