Mueller Industries RP02817 1/2 ACR Female x Pipe Elbow Press Fitting (1/2 in, Pack of 5, 90°)

Product Description

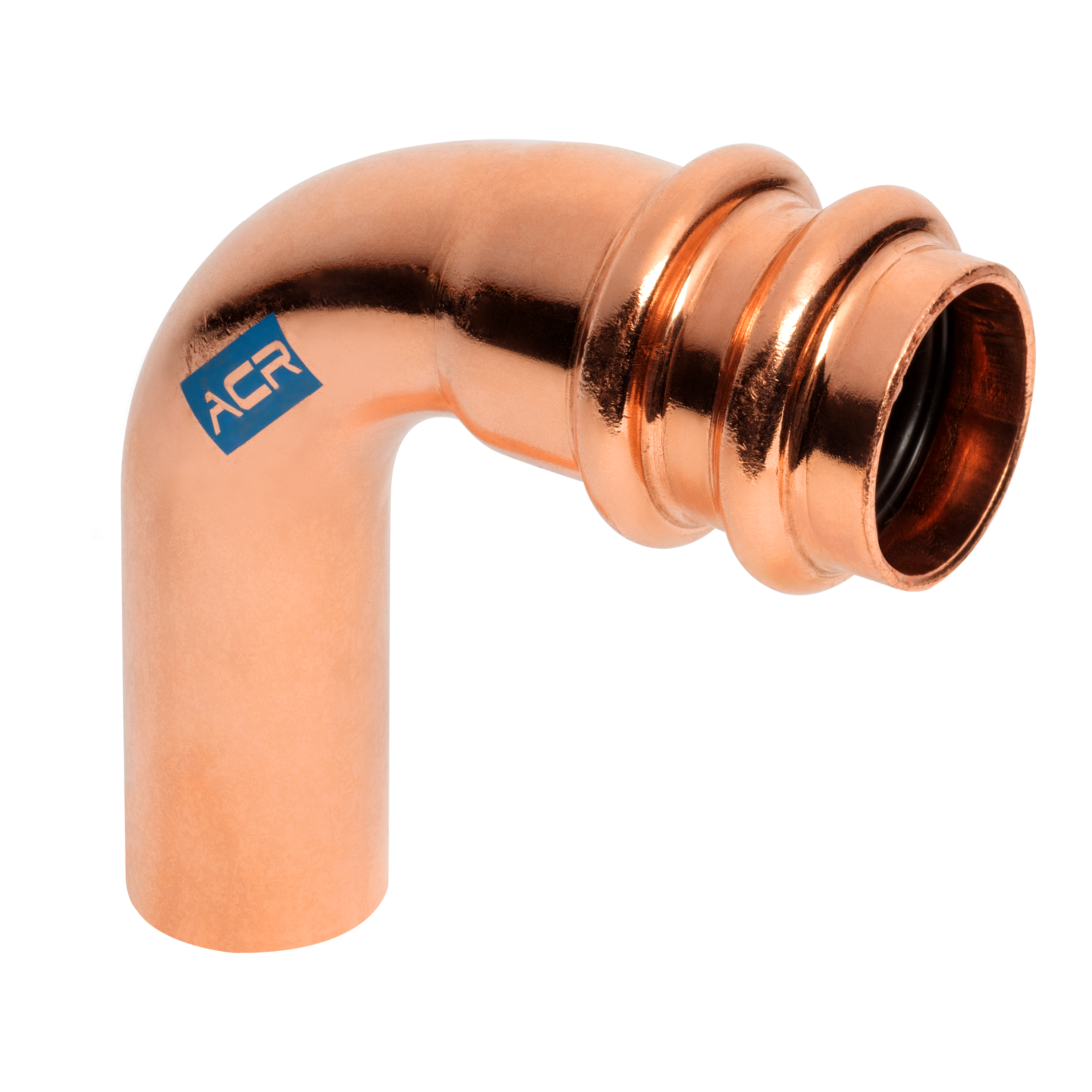

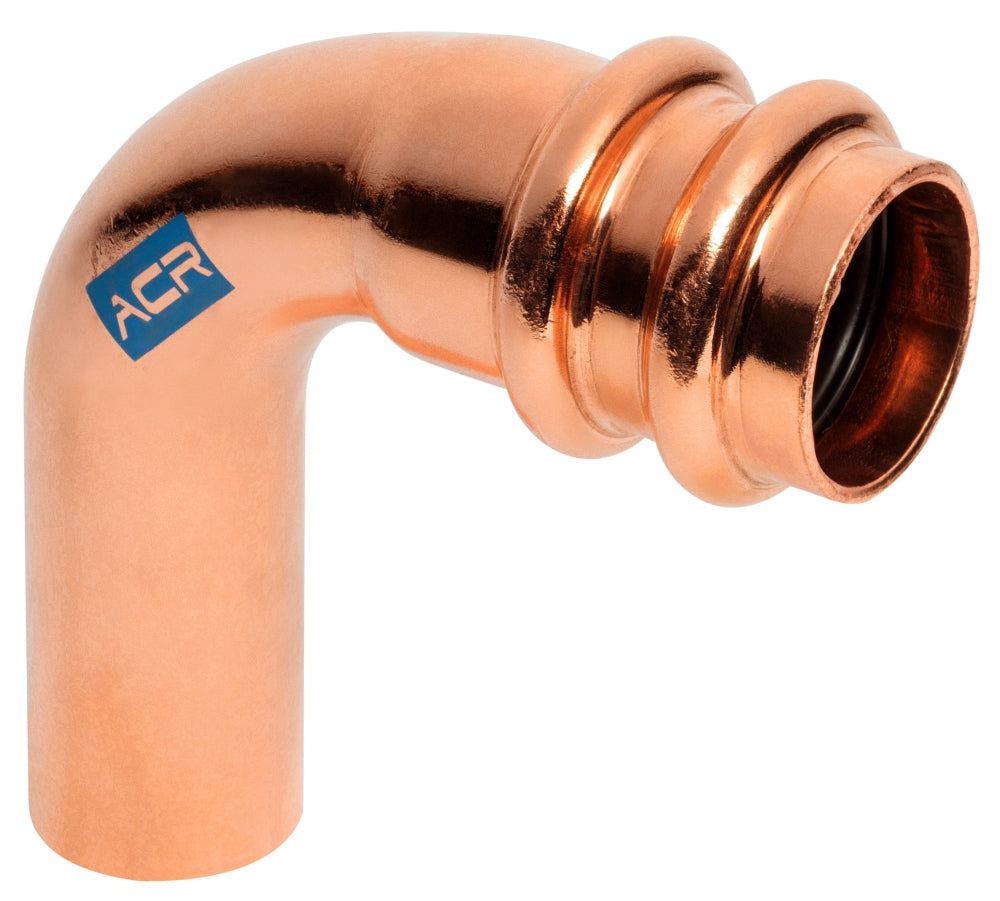

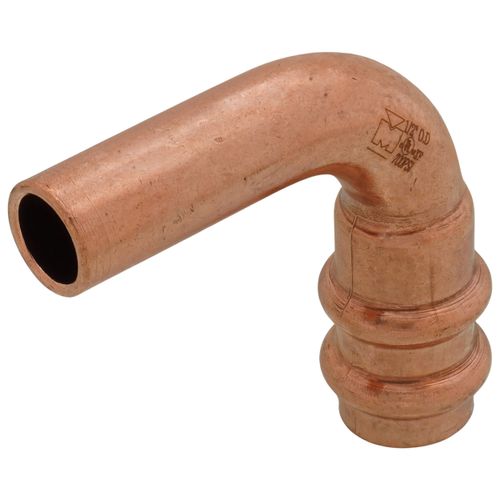

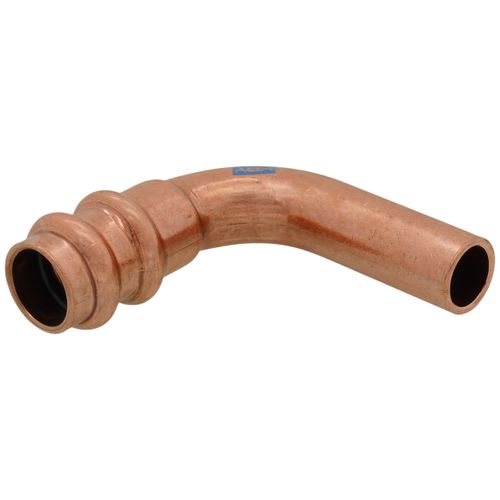

Mueller Industries RP02817 is a 1/2 inch ACR press 90° long-radius street elbow with a female thread to press connection, designed for refrigeration and air conditioning systems. The fitting is copper with HNBR sealing and is approved for Type ACR, L, K hard and soft copper tube. It uses Two Ring Advanced Press (T.R.A.P.) technology and is compatible with common refrigerants including R-410A.

• Connection: 1/2 in ACR female thread (FTG) x copper press (P); street long-radius 90° elbow configuration
• Construction: copper body (UNS C12200) with HNBR sealing ring; approved for Type ACR, L, K tubing
• Ratings and compatibility: 700 psi operating, -40 to 250 °F, compatible with R-410A and leading full-size press tools; TRAP, DualSeal, TrapZone, Force360, Tri-Lock technologies

Product Highlights

1/2 in ACR FTG x press 90° street elbow; copper construction with HNBR seal; 700 psi operating, -40 to 250 °F; Pack of 5; compatible with R-410A and major press tools.

Product Information

Standard Information

• Brand: MUELLER INDUSTRIES
• Manufacturer Part Number: RP02817

Technical Specifications

• Brand: MUELLER INDUSTRIES
• MPN: RP02817
• Product Type: ACR press 90° elbow (street, long radius)
• Model Name: Mueller Streamline ACR Elbow Street (FTG x P)
• Size: 1/2 in
• Outside Diameter: 1/2 in
• Connection Type: Press
• End Types: Female thread (FTG) x ACR press (P)
• End Sizes: 1/2 in x 1/2 in
• Material: Copper
• Body Material: UNS C12200 Copper
• Sealing Ring Material: HNBR
• Compatible Tube Types: Type ACR, L, K hard and soft copper tube
• Compatible Refrigerants: R-410A and other common refrigerant gases and oils
• Technology Features: Two Ring Advanced Press (T.R.A.P.); DualSeal ring design; TrapZone leak barrier; Force360 press contour; Tri-Lock press profile
• Operating Pressure Max: 700 psi
• Burst Pressure: 2100 psi
• Operating Temperature Min: -40 °F
• Operating Temperature Max: 250 °F

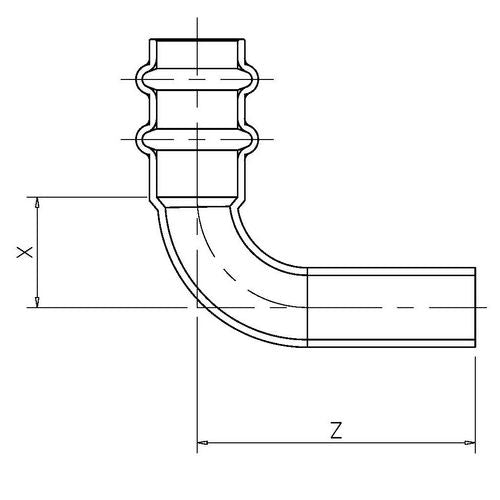

• Overall Length: 2.10 in
• Overall Height: 2.32 in
• Overall Width: 0.79 in
• Pack Quantity: 5 per inner pack
• Compatible Tools: Compatible with leading full-size press tools
• Standards and Certifications: ASME B31.5; ASHRAE 15; IMC; IRC; ISO; ICC-ES-PMG; UMC; UL 109/207/1963 (US and Canada); CSA C22.2
• Item Number: RP02817
• UPC: 685768448907
