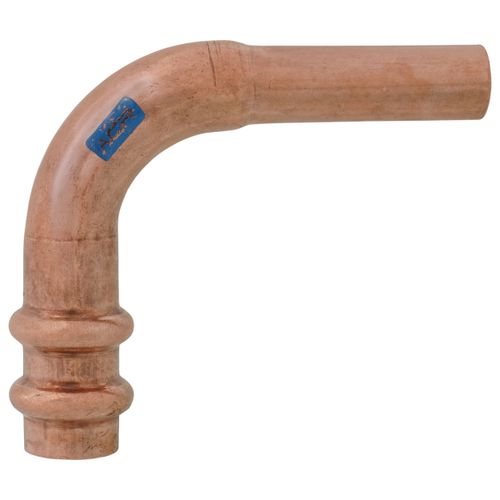

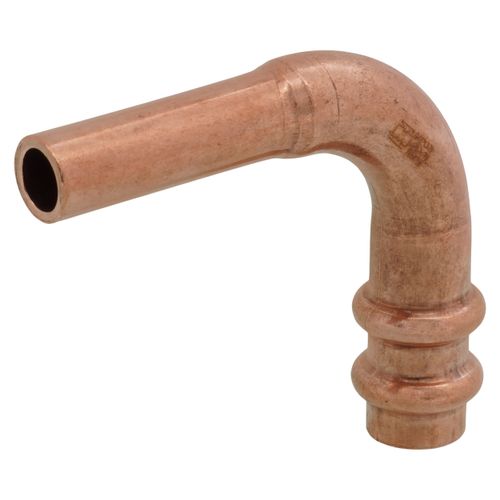

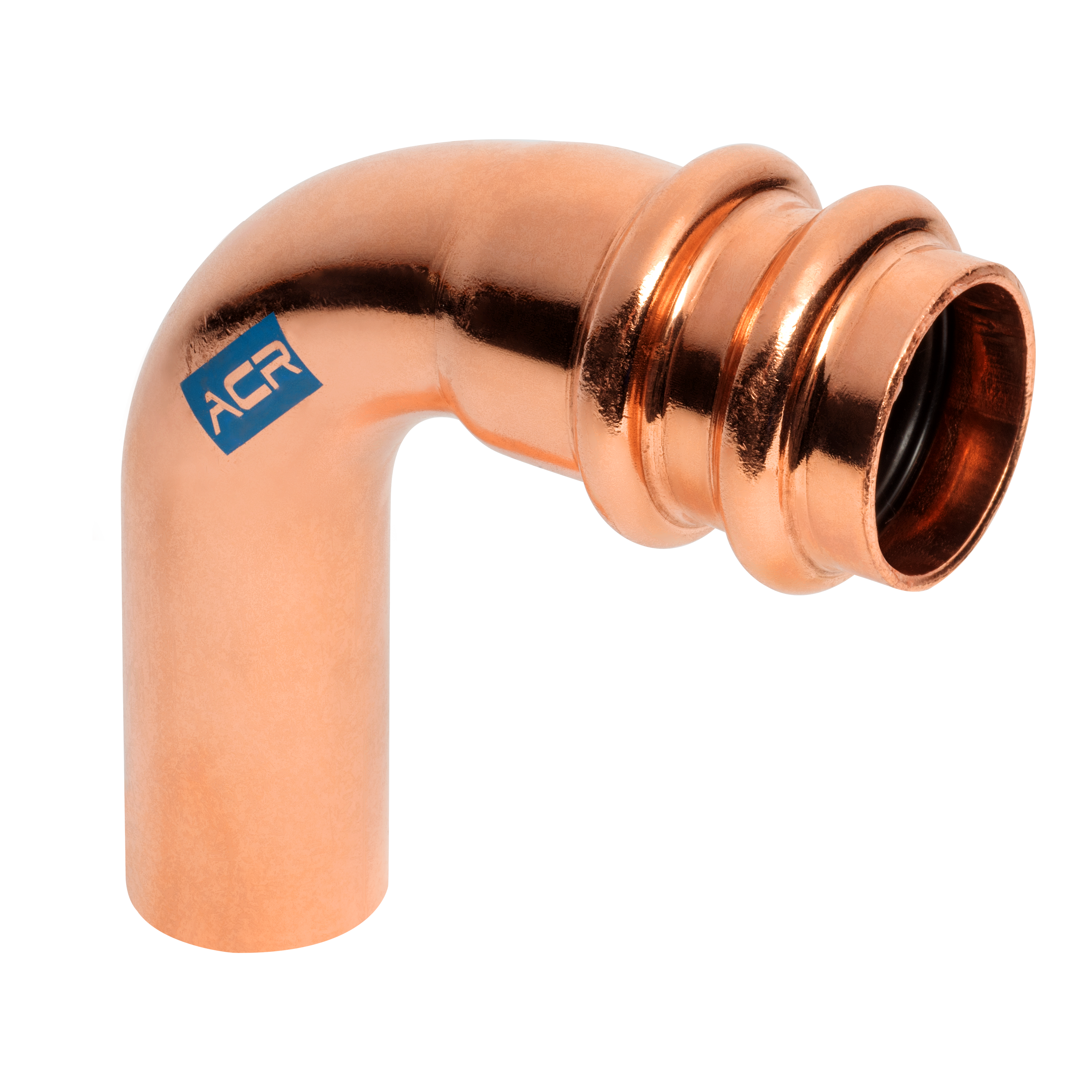

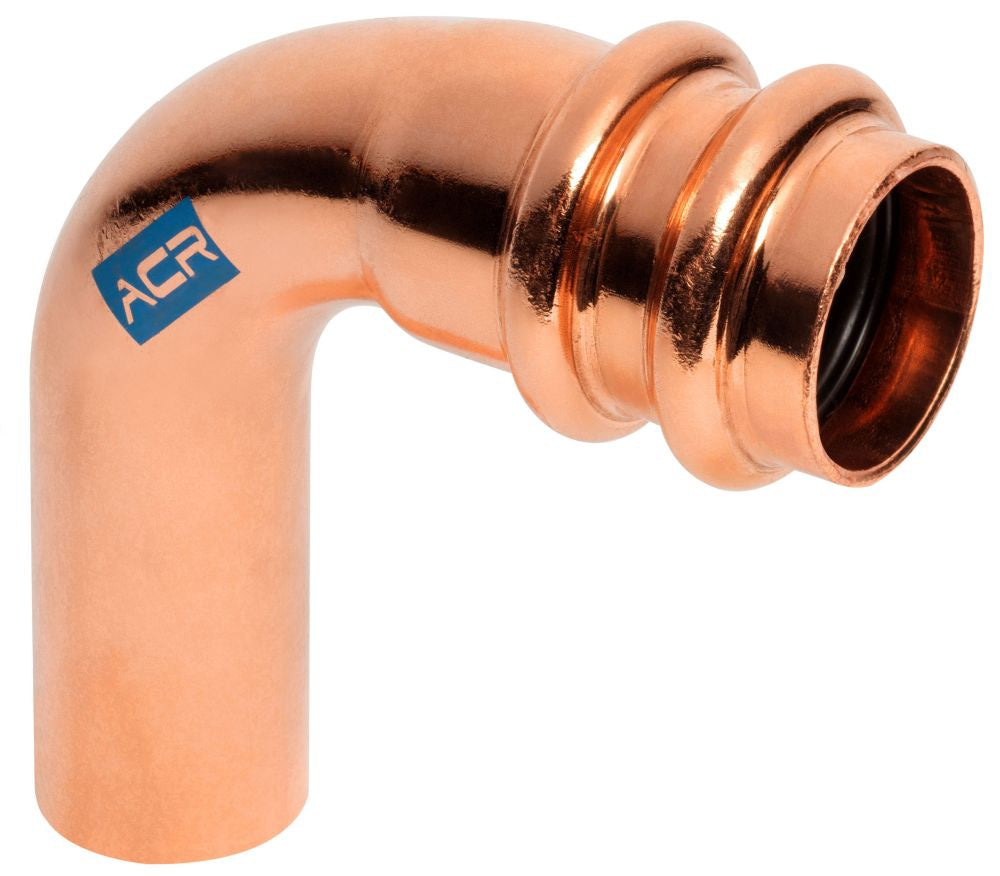

Mueller Industries RP02809 3/8 Acr Ftg x P 90 Elbow (3/8 in / 90°)

Product Description

Mueller Industries RP02809 is a 3/8 inch ACR press 90° long-radius street elbow with a female thread to press connection. It joins 3/8 in ACR or copper tubing to a copper press connection and is compatible with Type ACR, L, and K tubing. The fitting uses Streamline press technologies for improved sealing and is rated for typical refrigeration refrigerants including R410A.

• 3/8 in female thread x press connection (FTG x P) in a 90° long-radius street elbow configuration
• Material: copper; compatible with Type ACR, L, K hard and soft copper tubing and common refrigerant gases including R410A
• Operating range up to 700 psi and -40 °F to 250 °F; includes Streamline press sealing technologies

Product Highlights

3/8 in ACR female-to-press long-radius 90° elbow; copper construction; Streamline press sealing features; rated to 700 psi and -40 °F to 250 °F; sold in bags of 5.

Product Information

Standard Information

• Brand: MUELLER INDUSTRIES
• Manufacturer Part Number: RP02809

Technical Specifications

• Brand: Mueller Industries
• MPN: RP02809
• Product Type: 90° long-radius street elbow
• Connection Type: Female thread x press (FTG x P)
• End Size: 3/8 in (3/8" OD)
• Material: Copper
• Compatible Tube Types: Type ACR, L, K hard and soft copper tubing
• Compatible Refrigerants: R410A and common refrigerant gases and oils
• Press Technologies: Two Ring Advanced Press (T.R.A.P.); DualSeal; TrapZone; Force360; Tri-Lock
• Maximum Operating Pressure: 700 psi
• Operating Temperature Range: -40 °F to 250 °F
• Packaging Quantity: 5 per bag
• UPC: 30685768448892
