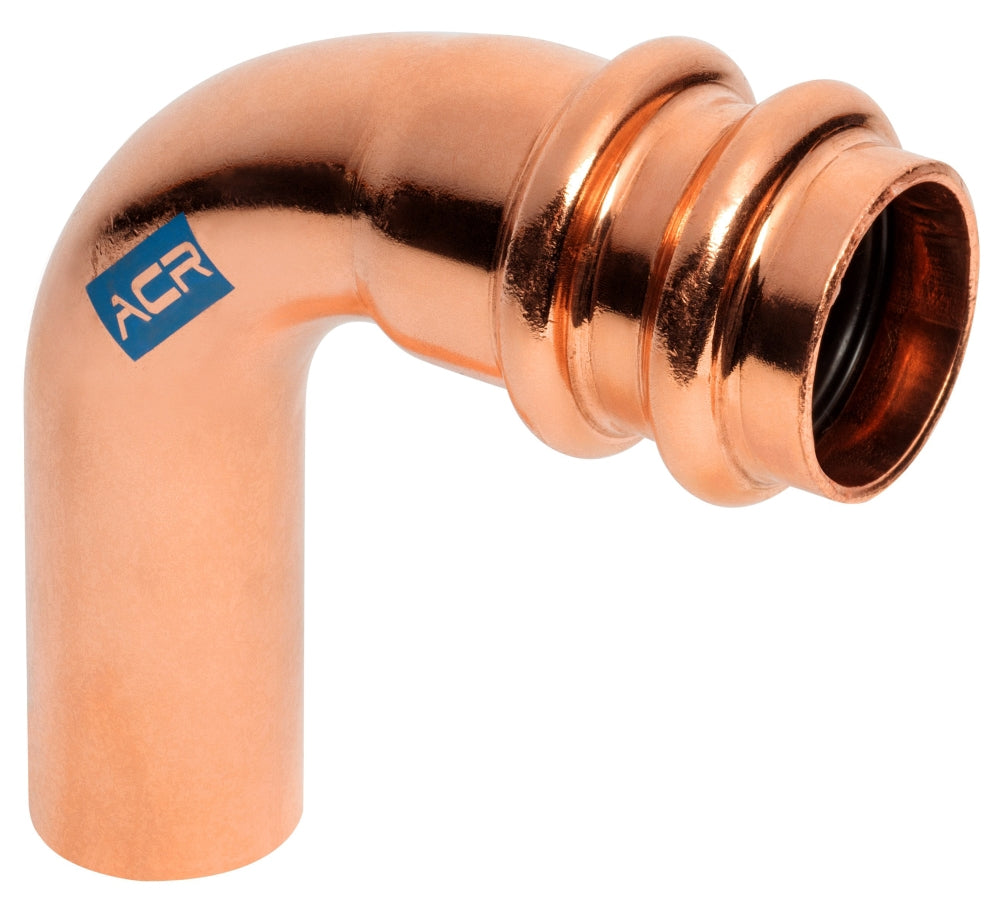

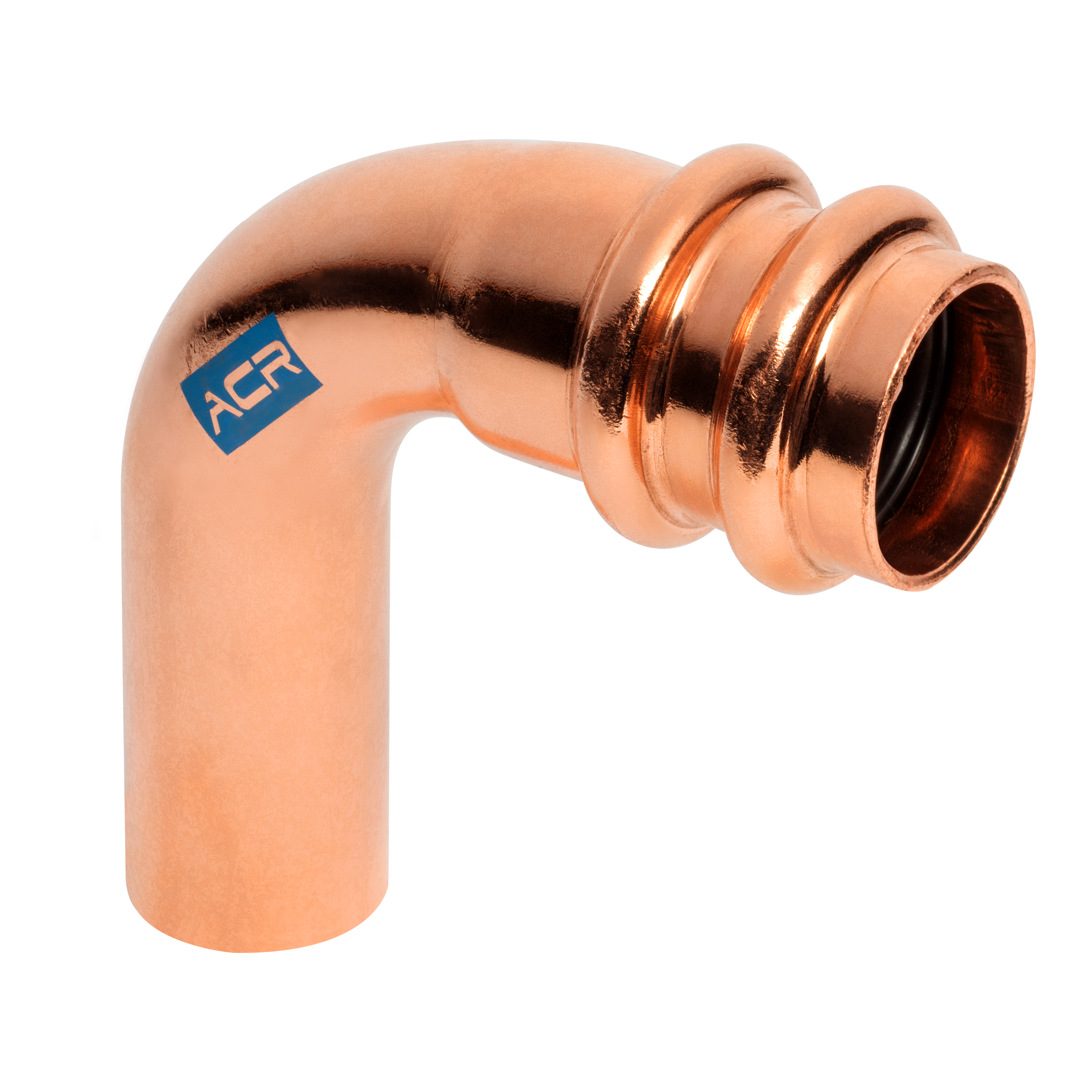

Mueller Industries RP02808 ACR press 90 degree elbow (1/4 in)

Product Description

Mueller Industries RP02808 is an ACR press 90 degree long-radius street elbow for 1/4 in outer diameter copper tubing, providing a female-threaded x press connection for refrigeration and HVAC systems. The copper body with HNBR sealing ring supports an operating range of -40 to 250 deg F and an operating pressure of 700 psi. It is compatible with Type ACR, L, K tubing and common refrigerants including R410A, and is intended for solderless press installations using full-size press tools.

• Connection: female thread x ACR press (FTG x P) street elbow for 1/4 in OD tubing
• Construction and ratings: UNS C12200 copper body with HNBR sealing ring; operating pressure 700 psi, burst 2100 psi; temperature range -40 to 250 deg F
• Press technology and compatibility: Two Ring Advanced Press (T.R.A.P.), DualSeal, TrapZone, Force360, Tri-Lock press profiles; compatible with R410A and leading full-size press tools

Product Highlights

90 degree long-radius ACR press street elbow for 1/4 in OD copper tubing; copper construction with HNBR seal; 700 psi operating rating; compatible with common refrigerants and press systems.

Product Information

Standard Information

• Brand: MUELLER INDUSTRIES
• Manufacturer Part Number: RP02808
• Country of Origin: United States

Technical Specifications

• Brand: MUELLER INDUSTRIES
• MPN: RP02808
• Series: RP
• Description: ACR press 90 degree elbow, long radius street, female thread x press
• Material: UNS C12200 copper (body), HNBR (sealing ring)
• Material Specification: ASTM B88 / B280 / B1003
• End Connection 1: Female thread (FTG)
• End Connection 2: ACR press (P)
• Nominal Size / Outer Diameter: 1/4 in
• Angle: 90 degree
• Type: 90 degree elbow, long radius, street fitting
• Operating Pressure (Max): 700 psi
• Burst Pressure: 2100 psi
• Temperature Rating: -40 to 250 deg F
• Compatible Tubing: Type ACR, L, K hard and soft copper tube
• Compatible Refrigerants: R410A and other common refrigerant gases and oils
• Press Technologies: Two Ring Advanced Press (T.R.A.P.), DualSeal, TrapZone, Force360, Tri-Lock
• Compatibility With Tools: Compatible with leading full-size press tools; proprietary Streamline ACR press jaws available from Milwaukee Tool
• Dimensions (L x H x W): 1.60 in x 1.79 in x 0.48 in
• Overall Length: 1.60 in
• Overall Height: 1.79 in
• Overall Width: 0.48 in
• Weight: 0.03 lb
• Applicable Standards: ASME B31.5, ASHRAE 15, IMC, IRC, ISO, ICC-ES-PMG, UMC, UL 109/207/1963, UL (Canada and US), CSA C22.2
