Mueller Industries RP02747 acr pxp lr 90ell 1-1/8 2-pack

Product Description

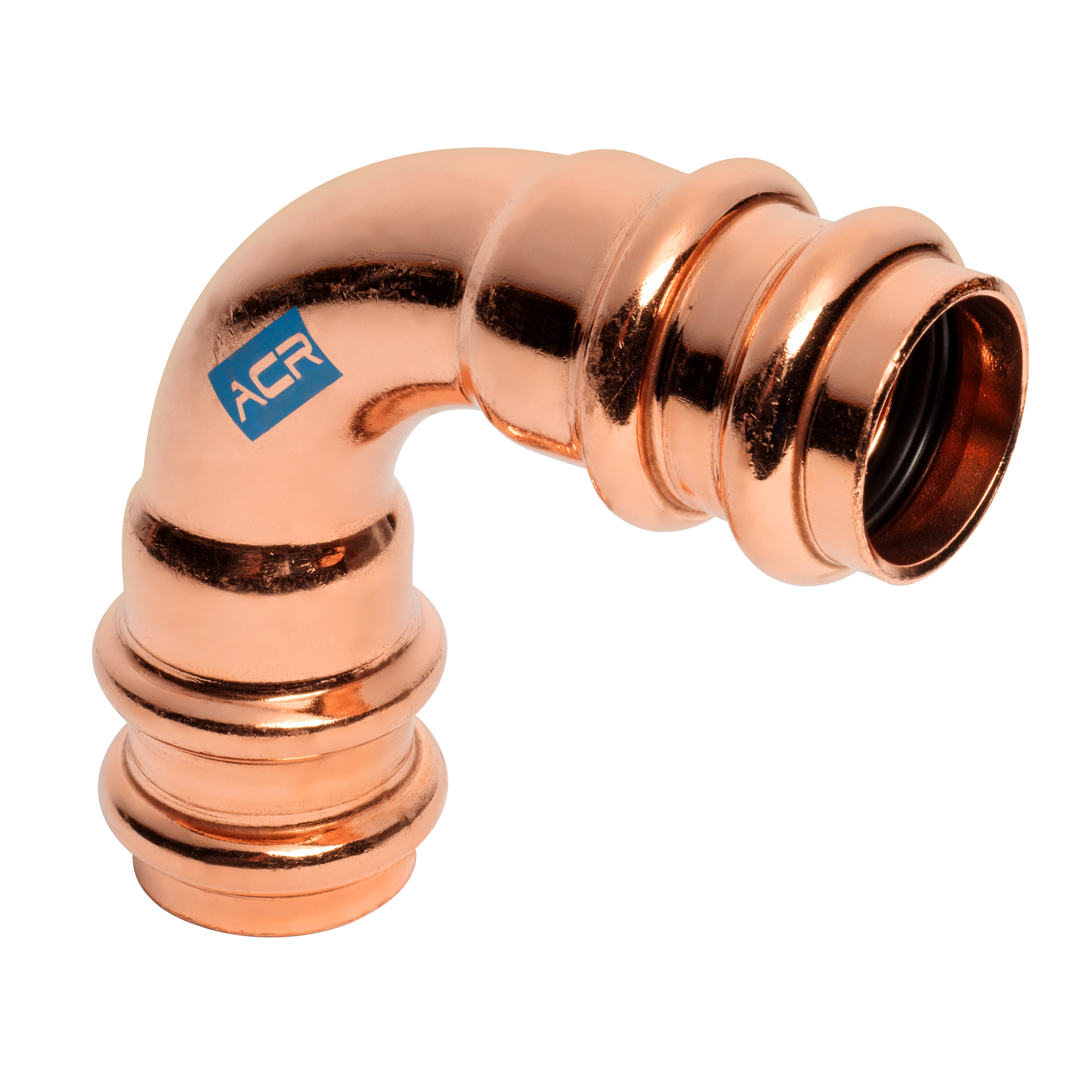

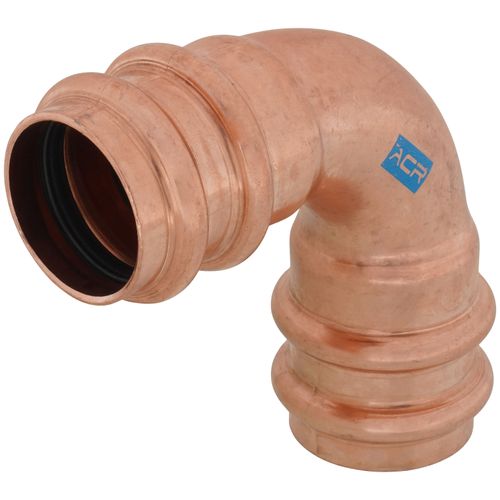

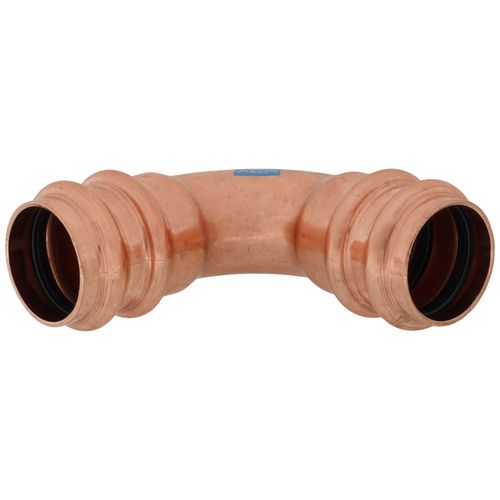

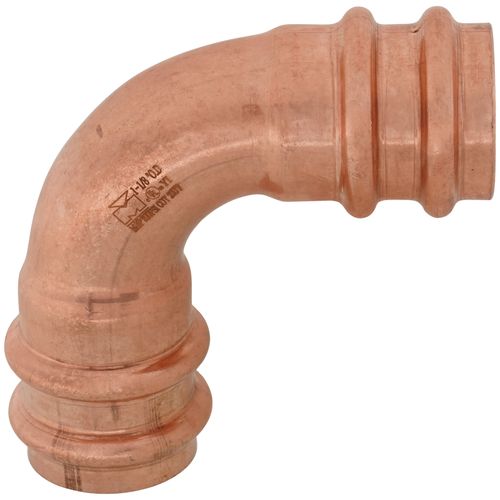

The Mueller Industries RP02747 is an ACR Press Long Radius 90-Degree Elbow, designed for refrigeration and air conditioning systems. This copper press fitting features a 1-1/8 inch OD size and is rated for pressures up to 700 psi, operating efficiently in temperatures ranging from -40°F to 250°F. It is compatible with Type ACR, L, and K hard and soft copper tubing, ensuring reliable connections in various applications.

• Approved for use with Type ACR, L, K hard and soft copper tube.
• Industry-leading Two Ring Advanced Press (T.R.A.P.) Technology.
• DualSeal Ring Design provides superior sealing and joint strength with 200% more surface contact.

Product Highlights

Features advanced T.R.A.P. Technology with a DualSeal Ring Design for superior sealing and joint strength, compatible with R410A and various copper tubing types.

Product Information

Standard Information

• Brand: MUELLER INDUSTRIES
• Manufacturer Part Number: RP02747

Technical Specifications

• MPN: RP02747
• Brand: Mueller Industries
• Type: ACR Press 90 Deg Elbow LR
• Connection Type: Press x Press
• Size: 1-1/8 inch OD
• Material: Copper
• Min Operating Temperature: -40°F
• Max Operating Temperature: 250°F
• Max Pressure: 700 psi
• UNSPSC Code: 40175305
