Mueller Industries RP02716 3/8 ACR PXP LR 90 ELL ACR Press Fitting

Product Description

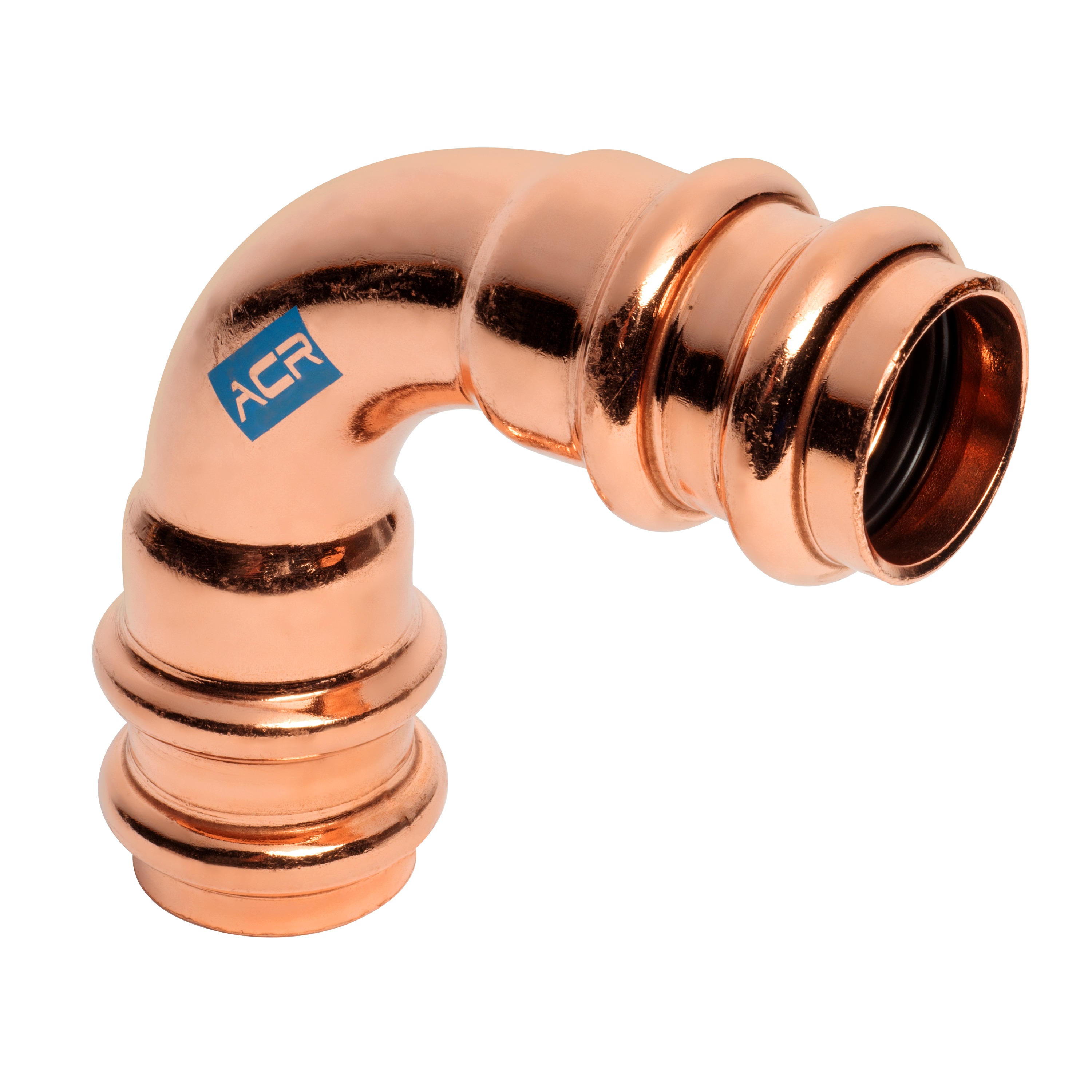

The MUELLER INDUSTRIES RP02716 is an ACR Press Fitting designed for refrigeration systems. This 3/8 inch nominal, long radius 90-degree elbow features a press end style, suitable for copper tubing. It is engineered for continuous operation within a temperature range of -40°F to 250°F and can withstand pressures up to 700 psi, making it ideal for HVACR applications.

• ACR Press Fitting with 3/8 inch OD and long radius 90-degree elbow design.
• Constructed from copper, approved for use with Type ACR, L, K hard and soft copper tube.
• Compatible with R410A and other common refrigerants, suitable for HVACR applications.

Product Highlights

Features DuoSeal technology and T.R.A.P. Technology for superior sealing and joint strength.

Product Information

Standard Information

• Brand: MUELLER INDUSTRIES
• Manufacturer Part Number: RP02716

Technical Specifications

• MPN: RP02716
• Brand: MUELLER INDUSTRIES
• Fitting Type: Elbow
• Elbow Type: DuoSeal Long Radius 90
• Material: Copper
• Outer Diameter (OD): 3/8 inch
• Application: Press Refrigeration
• Operating Temperature Minimum: -40 °F
• Operating Temperature Maximum: 250 °F
• Operating Pressure Maximum: 700 psi
• End Type: ACR Press
• Second End Type: ACR Press
• Connection Type: Press x Press
• Bend Angle: 90 Deg
• UPC Code: 685768444121
