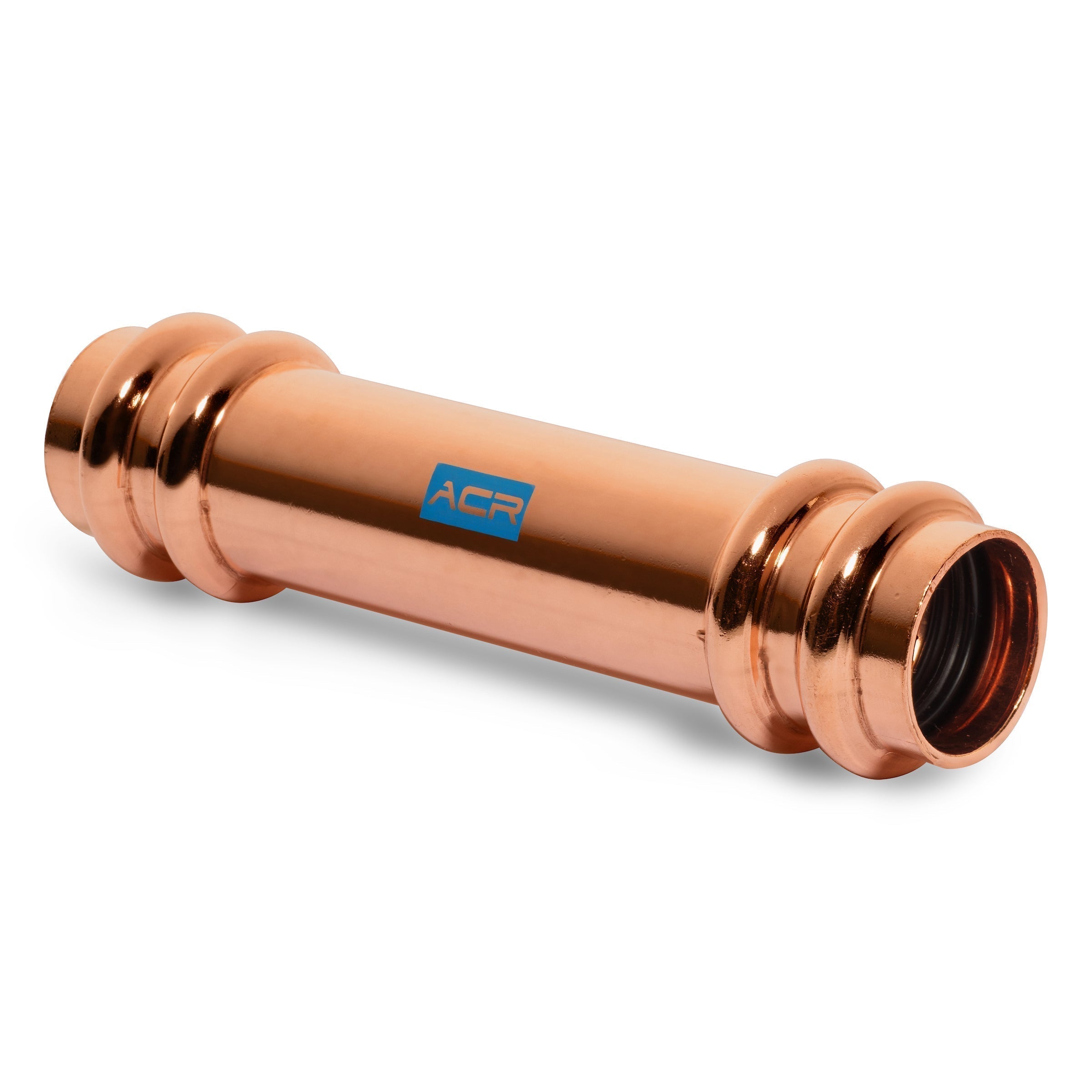

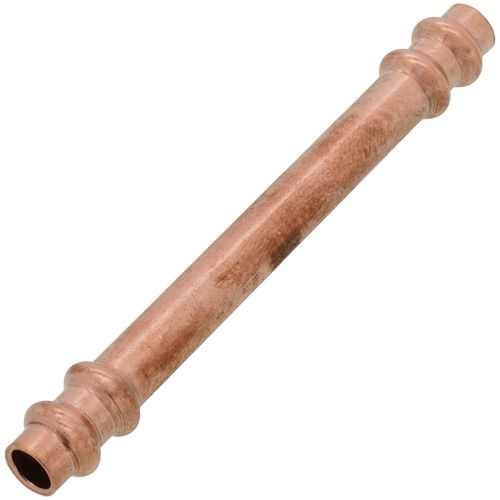

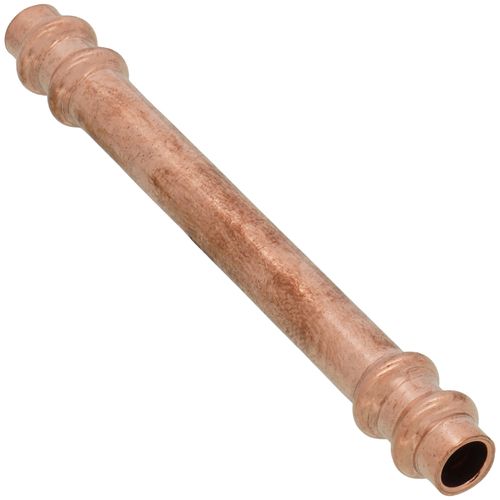

Mueller Industries RP01947 1/4 inches OD ACR Copper Press Extended Length Coupling, No-Stop

Product Description

The MUELLER INDUSTRIES RP01947 is a 1/4" OD ACR Copper Press Extended Length Coupling, No-Stop, designed for HVACR applications. This copper coupling features a press connection type and is approved for use with Type ACR, L, K hard and soft copper tube. It operates within a continuous temperature range of -40°F to 250°F and is compatible with various refrigerants, including R410A, making it suitable for air conditioning and heat pump systems.

• Approved for use with Type ACR, L, K hard and soft copper tube.
• Industry-leading Two Ring Advanced Press (T.R.A.P.) Technology.
• DualSeal Ring Design provides superior sealing and joint strength with 200% more surface contact.

Product Highlights

Copper press coupling with T.R.A.P. Technology for HVACR systems, compatible with R410A and various refrigerants.

Product Information

Standard Information

• Brand: MUELLER INDUSTRIES
• Manufacturer Part Number: RP01947

Technical Specifications

• Size: 1/4 inch
• Connection Type: Press
• Product Type: Coupling
• Material: Copper
• End Type: ACR Press
• Second End Type: ACR Press
• Continuous Operating Pressure: 700 PSI / 48 BAR Max
• Continuous Operating Temperature Range: -40°F / -40°C to 250°F / 121°C
• Sealing Ring Temperature Rating: -40°F / -40°C to 300°F / 149°C
• Approved Applications: Air Conditioning, Heat Pump, VRF and VRV, Light Commercial Refrigeration, Non-Potable Water, Ethylene Glycol
• Approved Refrigerants: R-125, R-134a, R-32, R-404A, R-407A, R-407C, R-407F, R-407H, R-410A, R-417A, R-421A, R-422B, R-422D, R-427A, R-438A, R-444A, R-447A, R-447B, R-448A, R-449A, R-450A, R-452A, R-452B, R-452C, R-454A, R-454B, R-454C, R-457A, R-459A, R-507A, R-513A, R-513B, R-718, R-1234ze, R-1234yf, R-290, R-600A
