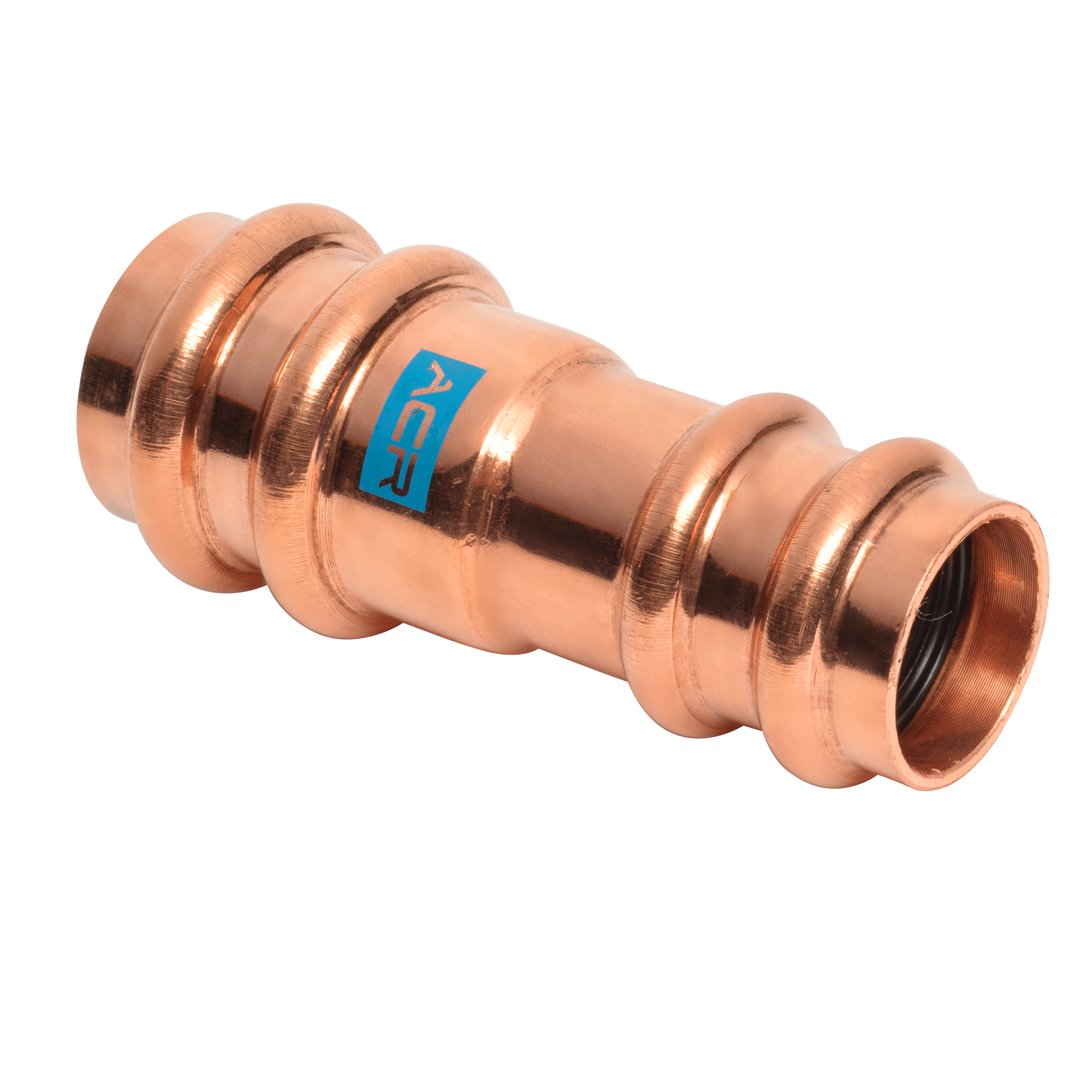

Mueller Industries RP01036 Streamline ACR Coupling Reducing (P x P) 7/8 in x 5/8 in

Product Description

The Mueller Industries RP01036 Streamline ACR Press Reducer (P x P) features a coupling with seven-eighths inches by five-eighths inches outer diameter. This product utilizes Two Ring Advanced Press (T.R.A.P.) Technology for robust performance. It is approved for Type ACR, L, K hard and soft copper tubes and includes a vacuum-zone TrapZone Leak Barrier for effective leak protection.

• Approved for use with Type ACR, L, K hard and soft copper tube.
• Features DualSeal Ring Design for superior sealing.
• Compatible with R410A refrigerant gases and oils.

Product Highlights

This coupling is designed to ensure protection against leaks while providing excellent joint strength and sealing efficiency.

Product Information

Standard Information

• Material: Copper
• End Type: ACR Press

Technical Specifications

• Technology: Two Ring Advanced Press (T.R.A.P.) Technology
• Operating Temperature [Min]: -40 °F
• Operating Temperature [Max]: 250 °F
• Operating Pressure [Max]: 700 psi
• End Size: Seven-eighths inches
• Second End Size: Five-eighths inches
• Overall Length: Two point eight seven inches
• Overall Height: One point two six inches
• Overall Width: One point two six inches
