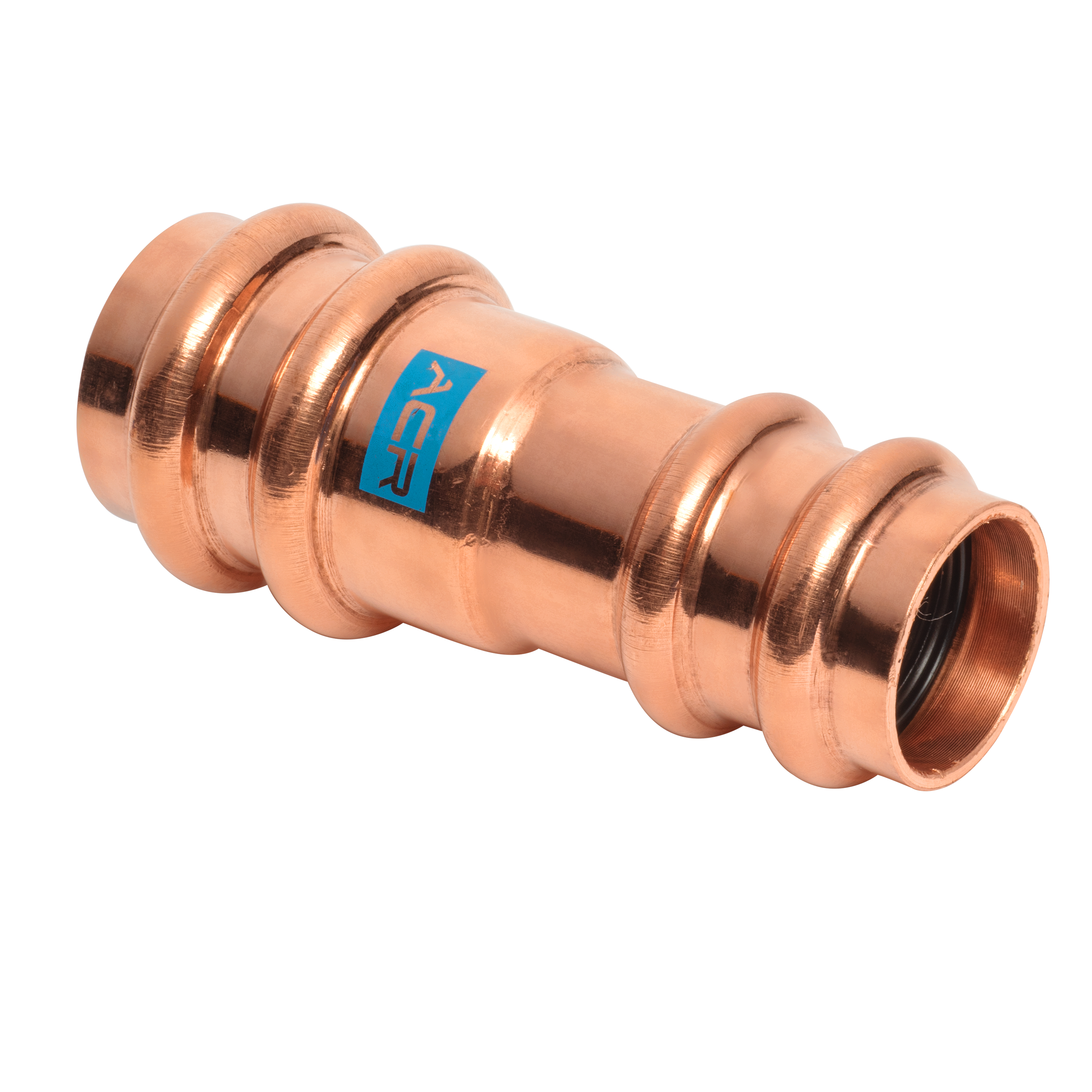

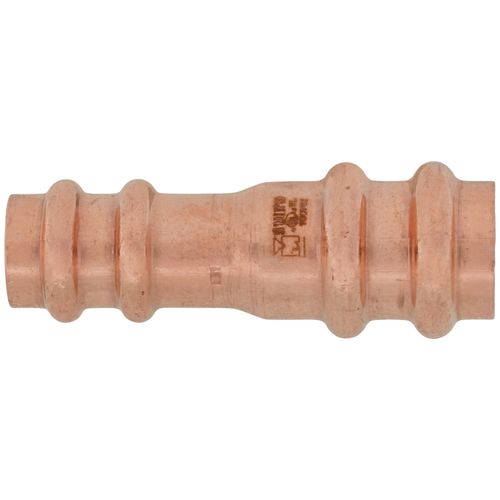

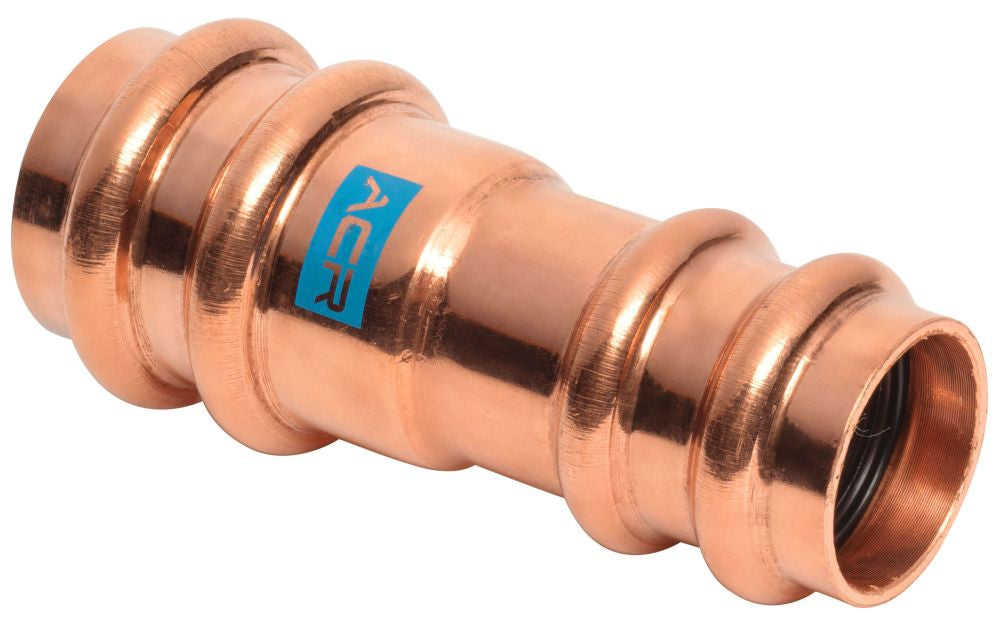

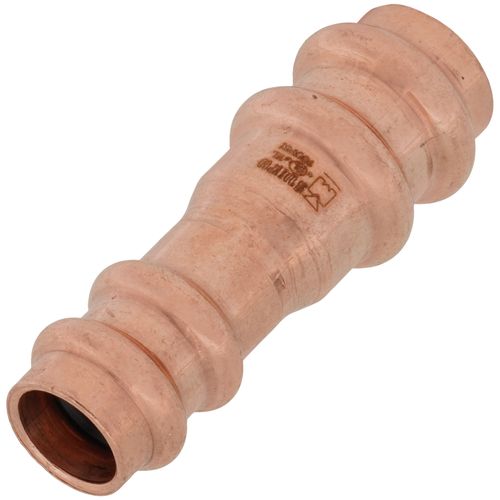

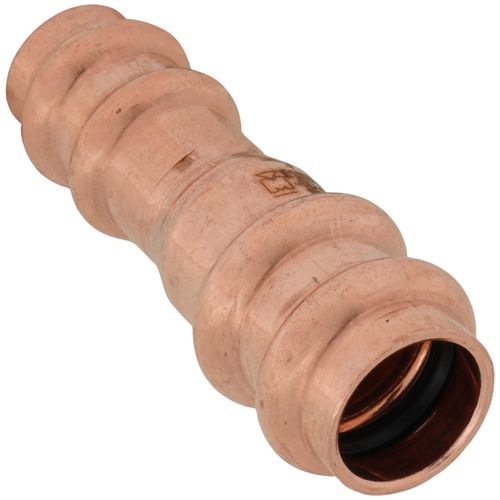

Mueller Industries RP01023 5/8 x 1/2 Acr Pxp Coupling (Pack of 2)

Product Description

Mueller Industries RP01023 is a press-style reducing coupling for joining 5/8 inch to 1/2 inch ACR copper tubing supplied as a pack of two. The copper coupling uses press connection technology and DuoSeal/Two Ring Advanced Press features to form a sealed joint for refrigeration and HVAC/R lines. It is compatible with Type ACR, L, K tubing and common refrigerants including R410A.

• Press reducing coupling to join 5/8 in to 1/2 in ACR copper tubing; pack of 2
• DuoSeal and Two Ring Advanced Press (T.R.A.P.) design with TrapZone leak barrier, Force360 press contour, and Tri-Lock press profile for enhanced sealing and joint strength
• Rated for operating temperatures from -40 °F to 250 °F and operating pressure up to 700 psi; compatible with R410A and common refrigerant oils

Product Highlights

Copper ACR press reducing coupling (5/8 x 1/2 OD), DuoSeal/T.R.A.P./TrapZone technology, compatible with common press tools and R410A refrigerant; pack of 2.

Product Information

Standard Information

• Brand: MUELLER INDUSTRIES
• Manufacturer Part Number: RP01023

Technical Specifications

• Brand: MUELLER INDUSTRIES
• MPN: RP01023
• Product Type: ACR press reducing coupling
• Connection Type: Press (P x P)
• Size: 5/8 in x 1/2 in OD
• Material: Copper
• Pack Quantity: 2
• Compatible Tube Types: Type ACR, L, K hard and soft copper tube
• Technologies: Two Ring Advanced Press (T.R.A.P.), DuoSeal ring, TrapZone leak barrier, Force360 press contour, Tri-Lock press profile
• Compatible Refrigerants: R410A and commonly used refrigerant gases and oils
• Operating Temperature (Min): -40 °F
• Operating Temperature (Max): 250 °F
• Operating Pressure (Max): 700 psi
• Overall Length: 2.58 in
• Overall Width: 0.96 in
• Overall Height: 0.96 in
• Weight (approx): 0.12 lb
• UPC: 685768448976
• Compatible Tools: Compatible with leading full-size press tools (Streamline ACR press jaws available)
