Mueller Industries PF03334 ST 45 Ell Water 3/4 inch 45 degree

Product Description

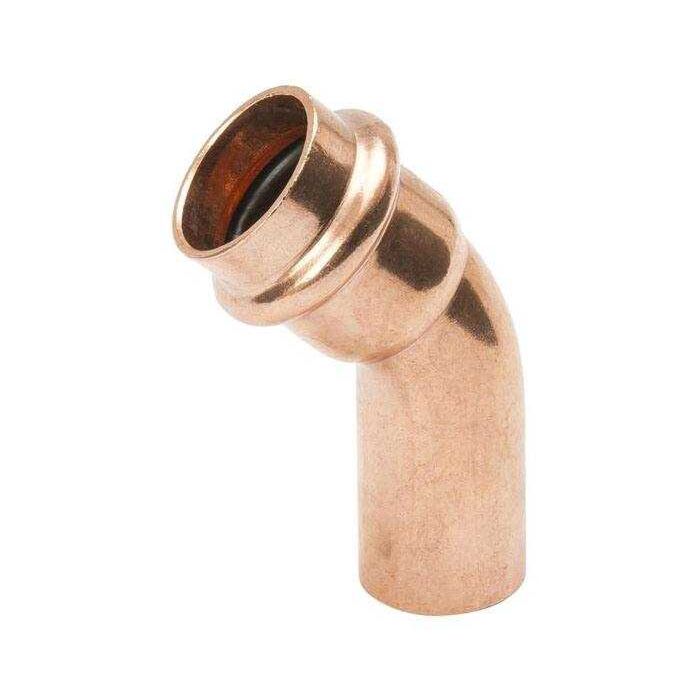

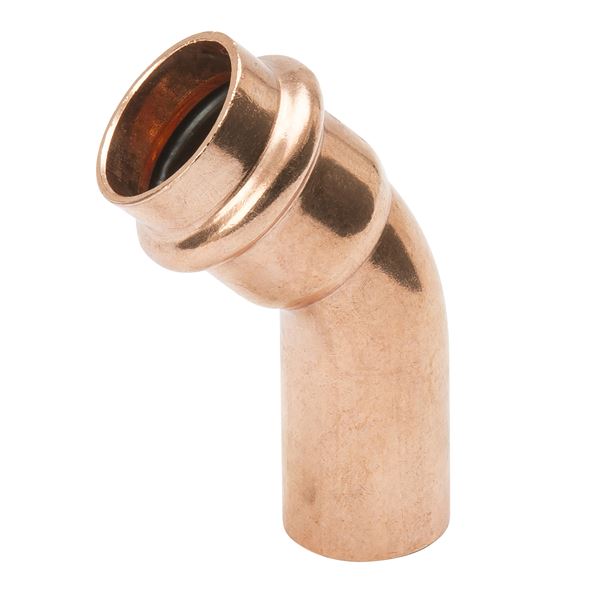

The MUELLER INDUSTRIES PF03334 is a 3/4 inch copper elbow with a 45-degree angle and P x FTG connections. This Streamline PRS Copper-Press fitting provides a flameless joining alternative for plumbing and mechanical applications. It is designed for potable water, hydronic heating, chilled water, compressed air, non-medical gases, low pressure steam, and vacuum systems. The fitting has a pressure rating of 200 PSI CWP and operates within a temperature range of -20 to 250 degrees Fahrenheit.

• Constructed from lead-free UNS C12200 copper with a 45-degree angle.
• Features P x FTG connections for 3/4 inch x 3/4 inch pipe sizes.
• Offers a flameless joining alternative with a leak detection mechanism for reliable connections.

Product Highlights

Lead-free copper 45-degree elbow with flameless joining and leak detection for reliable connections.

Product Information

Standard Information

• Brand: MUELLER INDUSTRIES
• Manufacturer Part Number: PF03334
• Country of Origin: United States

Technical Specifications

• MPN: PF03334
• Inventory SKU: PF 03334
• Parent SKU: PF 03334
• Brand: MUELLER INDUSTRIES
• Height: 2.57 in
• Length: 1.69 in
• Width: 1.22 in
• Material: UNS C12200 Copper
• Type: Elbow
• Angle: 45 Degree
• Connection Type: P x FTG
• Size: 3/4 inch x 3/4 inch
• Operating Temperature Min: -20 °F
• Operating Temperature Max: 250 °F
• Operating Pressure Max: 200 PSI CWP
• End Connection: Male Soldered x Press
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, CSA TIL-MSE-13, UPC
• Manufacturer: Mueller Industries, Inc. (Streamline)
• Material Specification: ASTM B88
• Process: Wrot, Seamless
• X Dimension: 0.37 in
• Z Dimension: 1.32 in
