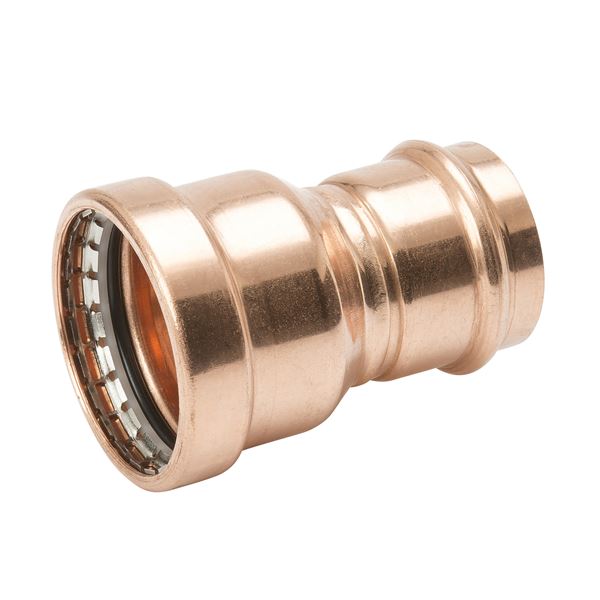

Mueller Industries PF 01085 Copper Reducer P x P 2-1/2 x 1-1/4 (1 per Bag)

Product Description

Mueller Industries PF 01085 is a copper reducer with press connections (P x P) that transitions 2-1/2 in to 1-1/4 in for plumbing and HVACR systems. The press-style fitting is constructed from copper, has an overall length of 3.54 in and a weight of 0.99 lb. It is rated to 300 psi and an operating temperature range of -20 F to 250 F and meets multiple industry standards.

• Copper construction with press (P x P) connections; reducer from 2-1/2 in to 1-1/4 in.
• Operating temperature range: -20 F to 250 F; maximum operating pressure: 300 psi.
• Conforms to ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, CSA TIL-MSE-13; overall length 3.54 in; weight 0.99 lb.

Product Highlights

Press-style copper reducer for 2-1/2 in to 1-1/4 in transitions, rated to 300 psi and -20 F to 250 F.

Product Information

Standard Information

• Brand: MUELLER INDUSTRIES
• Manufacturer Part Number: PF 01085

Technical Specifications

• Brand: Mueller Industries
• Manufacturer Part Number: PF 01085
• Product Name: Copper Reducer, P x P, 2-1/2 in x 1-1/4 in
• Material: Copper
• End Type: Press
• End Size: 2 1/2 in
• Second End Type: Press
• Second End Size: 1 1/4 in
• Operating Temperature Min: -20 F
• Operating Temperature Max: 250 F
• Maximum Operating Pressure: 300 psi
• Standards: ASME B16.51; IAPMO PS-117; NSF/ANSI 61; NSF/ANSI 372; CSA TIL-MSE-13
• Overall Length: 3.54 in
• Overall Height: 3.18 in
• Overall Width: 3.18 in
• X Dimension: 0.83 in
• Weight: 0.99 lb
• Manufacturer Description: 2-1/2 P X 1-1/4 P COUP
