Mueller Industries MH30010 Copper Water Tube Type M

Product Description

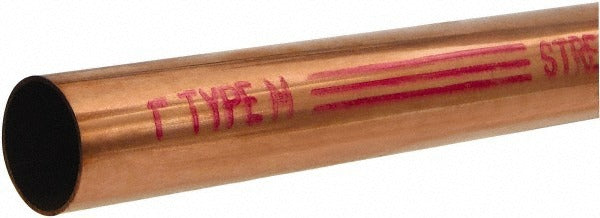

The MUELLER INDUSTRIES MH30010 is a Type M copper water tube manufactured from Grade C12200 phosphorus deoxidized copper. It measures 3-1/8 inches outside diameter with a 3.0 inch inside diameter and a 0.072 inch wall thickness, in a 10-foot length. At 2.68 pounds per foot, the total unit weight is approximately 26.8 pounds. Type M copper tube is widely used in potable water distribution, hydronic heating systems, and general plumbing supply lines. Installation is performed by licensed plumbers and pipefitters in both residential and light commercial applications.

This tube is suited for interior potable water supply, recirculation systems, and hydronic radiant or baseboard heating installations. The 3-inch nominal size targets larger branch and main supply lines where adequate flow volume is required. The straight 10-foot length simplifies cutting to field dimensions. Plumbers select Type M copper for its balance of wall thickness, weight, and compatibility with standard soldered or press-fit fittings used throughout the trade.

Key Features

• Grade C12200 phosphorus deoxidized copper for reliable solderability and corrosion resistance in water systems
• Type M wall thickness of 0.072 inches appropriate for standard residential and light commercial water pressure service
• 3-1/8 inches OD with 3.0 inch ID provides consistent fit with standard 3-inch nominal copper fittings
• 10-foot straight length minimizes waste and simplifies field measuring and cutting
• 2.68 pounds per foot weight allows straightforward handling and installation by a single technician

Compatibility

Designed as an OEM-style replacement and standard stock tube for residential and light commercial plumbing systems using 3-inch nominal copper fittings, solder joints, or press-fit connections compatible with Type M copper tube.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the applicable edition of the International Plumbing Code (IPC) and local amendments. Shut off and depressurize the water supply and drain the affected section before cutting or joining. Use appropriate tube cutters, reamers, and flux rated for potable water copper systems when soldering joints. Do not use Type M copper tube in underground burial or high-pressure steam applications unless local code explicitly permits it.
