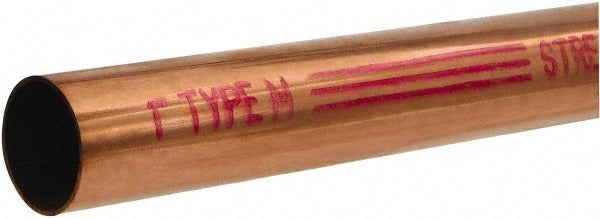

Mueller Industries MH24010 Copper Water Tube Type M

Product Description

The MUELLER INDUSTRIES MH24010 is a Type M copper water tube manufactured from Grade C12200 phosphorus-deoxidized copper. It measures 2-5/8 inches outside diameter with a 2-1/2 inch nominal size, a 2.5 inch inside diameter, and a 0.065 inch wall thickness. The tube ships in a 10-foot length and weighs approximately 2.03 pounds per foot, with a total package weight of 20.3 pounds. Type M copper tube is widely used in residential and light commercial plumbing systems for potable water distribution, hydronic heating, and general fluid conveyance. Licensed plumbers and pipefitters are the primary installers of this product.

This tube is suited for residential and commercial water supply and distribution systems where Type M wall thickness meets local code requirements. The 2-1/2 inch nominal size accommodates higher-flow applications such as main service lines, large building supply runs, and commercial plumbing risers. The C12200 alloy designation confirms high-purity, phosphorus-deoxidized copper, which is compatible with soldered, brazed, and press-fit joining methods. One 10-foot length is included per package.

Key Features

• Grade C12200 phosphorus-deoxidized copper construction for reliable soldering and brazing performance
• Type M wall thickness of 0.065 inches suitable for water service where local codes permit
• 2-5/8 inch OD with 2-1/2 inch nominal size for high-flow water distribution applications
• 2.03 pounds per foot weight for straightforward handling and field cutting
• 10-foot length ships as a single piece, one unit per package

Compatibility

Designed for use in potable water distribution, hydronic heating, and general plumbing systems where 2-1/2 inch nominal Type M copper tube is specified and local plumbing codes permit Type M wall thickness.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the International Plumbing Code and applicable local amendments. Shut off and depressurize the water supply before cutting or joining. Type M copper tube may be joined using solder, brazing alloy, or approved press-fit fittings rated for the intended service pressure and temperature. Do not use Type M tube in applications where local codes mandate the heavier walls of Type L or Type K.
