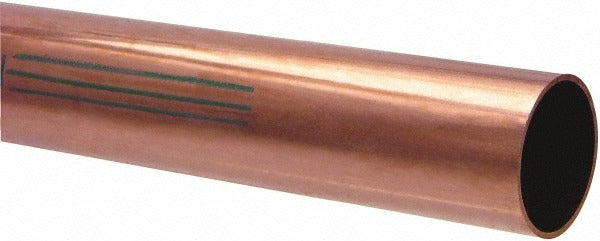

Mueller Industries KH24010 Type K Copper Water Tube

Product Description

The MUELLER INDUSTRIES KH24010 is a Type K copper water tube manufactured from Grade C12200 phosphorus deoxidized copper. It measures 2-5/8 inches outside diameter with a 2-1/2 inch inside diameter and a 0.095 inch wall thickness. The 10-foot length weighs 29.3 pounds at a rate of 2.93 pounds per foot. Type K designation indicates the heaviest wall thickness in the standard copper tube series, making it well suited for demanding underground and high-pressure water service applications. Plumbers and pipefitters install this tube in commercial and industrial water distribution systems where wall integrity and long service life are critical requirements.

This tube is used in residential and commercial plumbing systems for domestic cold and hot water supply lines, underground water service connections, and high-pressure distribution piping. The C12200 alloy grade meets ASTM B88 standards and NSF 61G certification for potable water contact, making it appropriate for any installation where the tubing will carry drinking water. At 2-1/2 inch nominal size, this is a large-diameter tube typically found in main service lines, building entry points, and primary distribution headers rather than branch or fixture supply runs.

Key Features

• Type K wall thickness at 0.095 inches provides maximum pressure rating within the standard copper tube grades
• C12200 phosphorus deoxidized copper alloy resists corrosion and supports soldering, brazing, and press-fit joining
• NSF 61G certified for potable water service
• Meets ASTM B88 dimensional and material standards
• 10-foot straight length at 2.93 pounds per foot for consistent material takeoff calculations

Compatibility

Designed as an OEM-style replacement and new-installation tube for Type K copper water service systems with 2-1/2 inch nominal fittings, valves, and flanges conforming to ASTM B88 specifications.

Installation Notes

Licensed plumbers and pipefitters typically install large-diameter Type K copper tube in accordance with the International Plumbing Code and applicable local amendments. Shut off and depressurize the water system completely before cutting or joining. This tube is compatible with soldering, silver brazing, and approved mechanical joining methods sized for 2-5/8 inch OD copper. Do not use open flame near combustible materials without appropriate shielding, and follow all local hot-work permit requirements.
