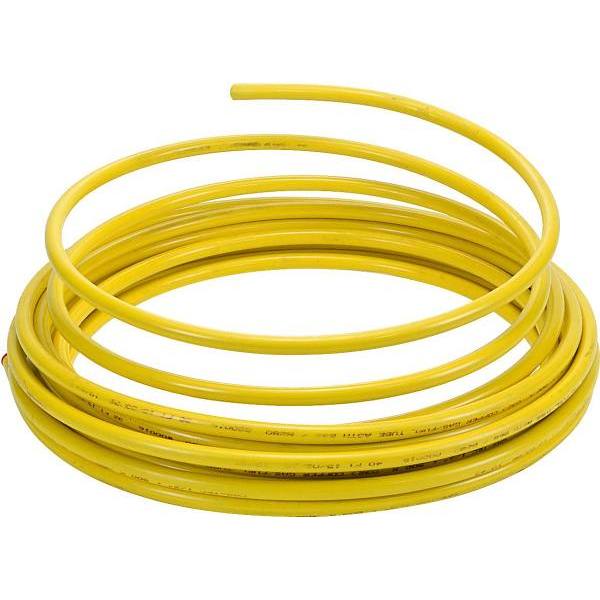

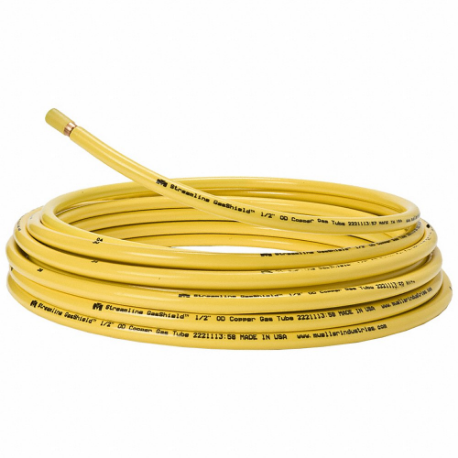

Mueller Industries DY10100 Plastic Coated Copper Tube 5/8 inches OD x 100 feet

Product Description

The MUELLER INDUSTRIES DY10100 Streamline Plastic-Coated Copper Tube is manufactured for use when copper tube is buried or used in a potentially aggressive environment. The .025" polyethylene coating is extruded directly onto the copper tube for corrosion protection. It eliminates the need for on-site tape wrapping or sleeving. Can be used in reclaimed water and natural gas applications.

• For use in protecting copper
• .025" (min) polyethylene coating extruded directly onto copper tube for consistent corrosion protection
• Made to ASTM & NFPA standards

Product Highlights

Plastic-coated copper tube protects against corrosion and eliminates extra steps during installation. Marked with size, specification, and footage every two feet.

Product Information

Standard Information

• Brand: MUELLER INDUSTRIES
• Manufacturer Part Number: DY10100
• Country of Origin: USA

Technical Specifications

• Type: Dehydrated Soft Coil
• Standards: ASTM B88, NSF 61, UNS C12200
• Material: C12200
• Item Size: 5/8" OD x 100'
• HVACR (OD) Size: 5/8
• Application: DWV Application
• Gas Type: Natural Gas
• Inside Diameter: 1/2 in.
• Maximum Working Temperature: 400 F
• Media: Water;Gas
• Outside Diameter: 5/8 in.
• Package Quantity: 1
• Pipe Construction: Seamless
• Product Length: 100 ft.
• Certifications & Standards: ASTM Compliant, NSF Certified
• GSA Approved: Yes
• Made in the USA: Yes
• TAA/BAA Compliant: Yes
• UL Listed: Yes
• HazMat: Hazardous
• Warranty: 1 Year
• MPN: DY10100
• UPC: 685768317043
• Item: Tubing
• Coating Color: Yellow
• Copper Tube Size: 5/8"
• Copper Tube Type: ACR
• Fabrication: Seamless
• Features: Corrosion Protection, Size, Specification, And Footage Mark Every 2 Feet
• Finish, Coating: Polyethylene Coated
• Form: Coil
• Grade: Grade C12200
• Material Grade: Grade C12200
• Max. Operating Temp.: 400°F
• Overall Length: 100 ft.
• Temper: Soft
• Wall Thickness: 0.04"
• Weight Per Foot: 0.251 lbs.-ft.
• Weight/ft.: 0.251 lbs.-ft.
• Finish: Plastic Coated
• Plumbing Nominal Size: 0.5
