Mueller Industries B-25008n 2 Ball Corp Valve 2 in Cc X Compression

Product Description

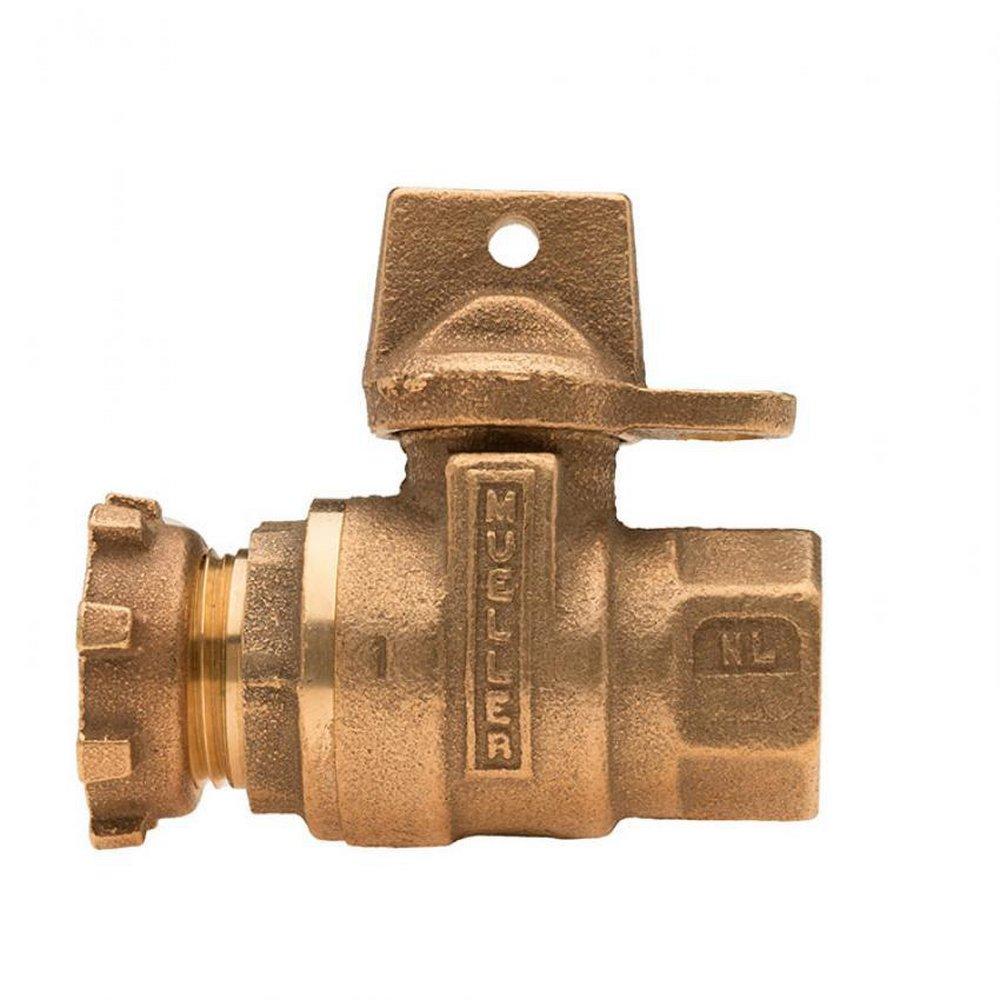

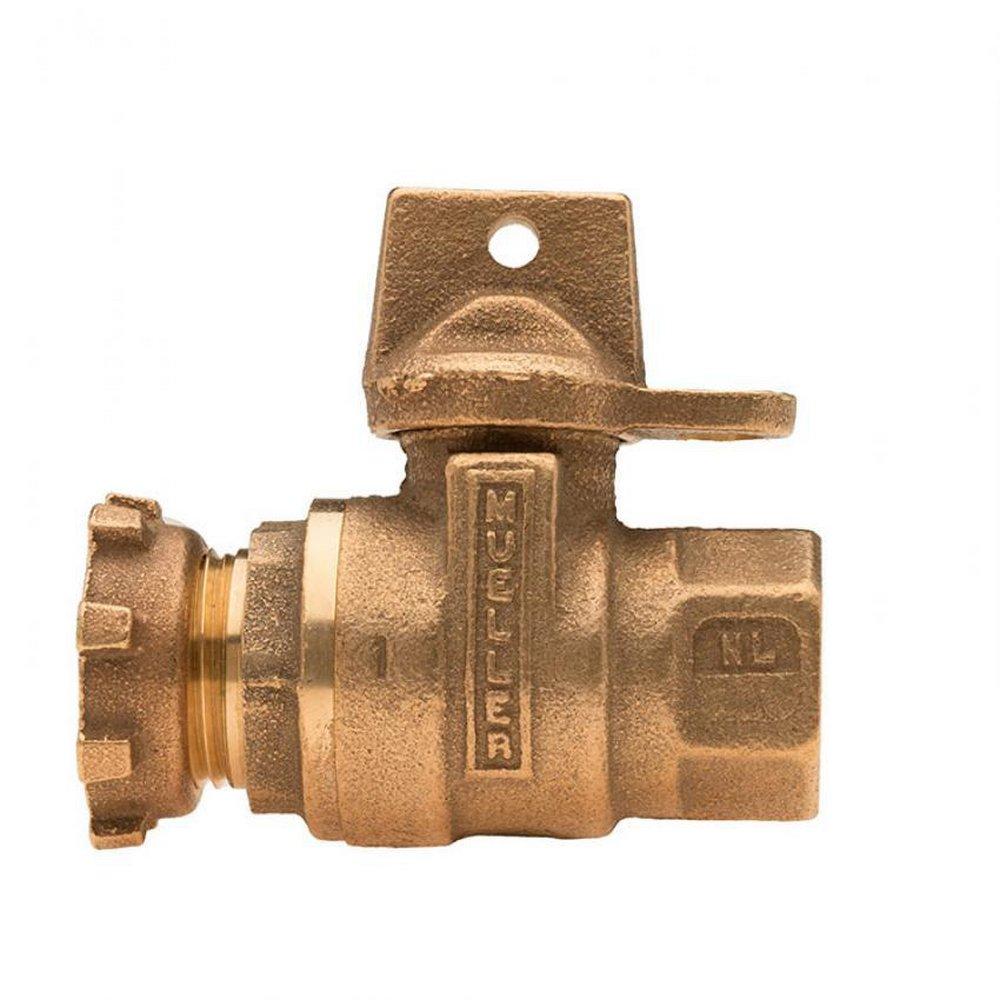

The MUELLER INDUSTRIES b-25008n 2 is a 2-inch ball corporation valve built for potable water service connections in municipal and residential water distribution systems. Constructed from brass with EPDM and Nitrile seating materials, it features an AWWA taper (Mueller CC) threaded inlet and a Mueller 110 conductive compression CTS O.D. outlet. The ball-style design provides a full shutoff in a compact body, making it a reliable choice for new service taps and meter installations. It meets ANSI C800 and AWWA C800 standards and is Lead Law Compliant and Certified, satisfying current safe drinking water regulations.

This valve is used in water main service installations where a corporation stop is required between the distribution main and a service line. The CC inlet threads directly into a tapped main, while the compression outlet connects to CTS copper tubing. Typical applications include residential and light commercial water service installations where municipalities or contractors require AWWA-compliant corporation valves at a 2-inch service size. Licensed plumbers and water works contractors are the primary installers of this fitting.

Key Features

• AWWA taper CC threaded inlet for direct main tap connections
• Mueller 110 conductive compression CTS O.D. outlet for copper tubing service lines
• Brass body construction for corrosion resistance in buried service conditions
• EPDM and Nitrile seals provide durable shutoff performance
• Lead Law Compliant and Certified for potable water systems
• Meets ANSI C800 and AWWA C800 standards

Compatibility

Designed as an OEM-style replacement or new-installation corporation valve for 2-inch AWWA CC x compression water service applications per ANSI C800 and AWWA C800 specifications.

Installation Notes

Installation should be performed by a licensed plumber or water works contractor in accordance with local water authority requirements and AWWA C800 guidelines. Shut off and depressurize the water main section before tapping or replacing a corporation valve. Use the appropriate corporation stop tapping machine and ensure the CC threads are fully engaged without cross-threading before applying pressure. Verify compression fitting assembly is properly seated on CTS tubing before returning the service line to pressure.

Technical Specifications

• Valve Size: 2 inches
• Inlet Service Size: 2 inches
• Outlet Meter Size: 2 inches
• End Connection 1: CC (AWWA Taper Thread)
• End Connection 2: Compression
• Body Material: Brass
• Seal Material: EPDM, Nitrile
• Lead Law Compliant: Yes, Lead Law Compliant and Certified
• ANSI Standard: ANSI C800
• AWWA Standard: AWWA C800
• Collection: B-25008N

Standard Information

• Brand: MUELLER INDUSTRIES
• Manufacturer Part Number: b-25008n 2
