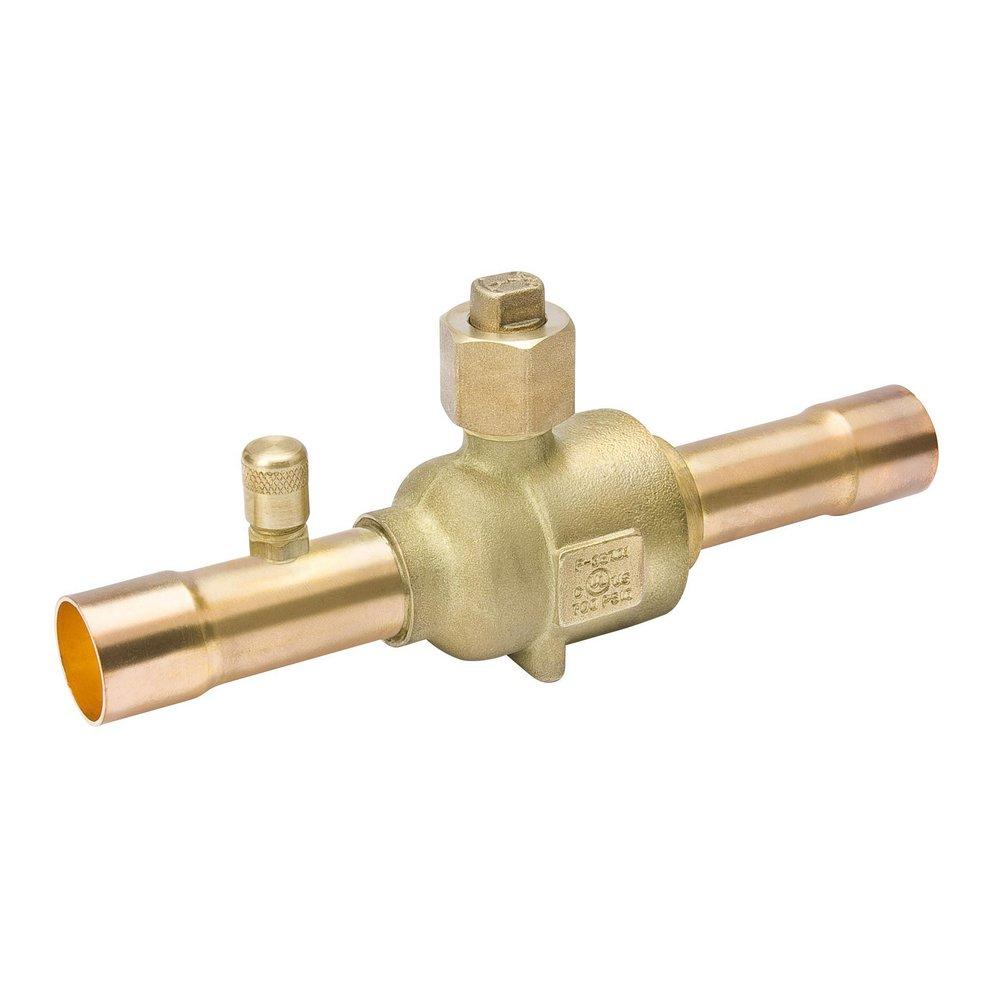

Mueller Industries AQ17865 Cyclemaster 1-1/8 in. Brass Full Port Sweat Ball Valve

Product Description

The Mueller Industries AQ17865 Cyclemaster 1-1/8 in. Brass Full Port Sweat Ball Valve is designed for efficient fluid control. This valve offers robust performance and compatibility with all CFC, HCFC, and HFC refrigerants and oils.

• 1-1/8 inch connection size
• Full port construction
• UL/cUL listed

Product Highlights

This ball valve features a full port construction that matches the line size ID, ensuring minimal flow restriction. Its rupture-proof encapsulated stem enhances durability, while the internally equalized ball design guarantees reliable performance.

Product Information

Standard Information

• Brand: Mueller Industries
• Size: 1-1/8 inches
• Type: Full Port Ball Valve

Technical Specifications

• Operating Temperature: -40 Deg F to 300 Deg F
• Max Working Pressure: 775 psig, 53 bar
• Connection Type: Sweat
• Material: Brass
• Weight: 1.66 lb
• Compliance: UL/cUL listed, CE certified, CRN 0C1241.9C
• Other Features: Internally equalized ball design, MCM Seal Technology, Compatible with all CFC, HCFC & HFC refrigerants and oils
