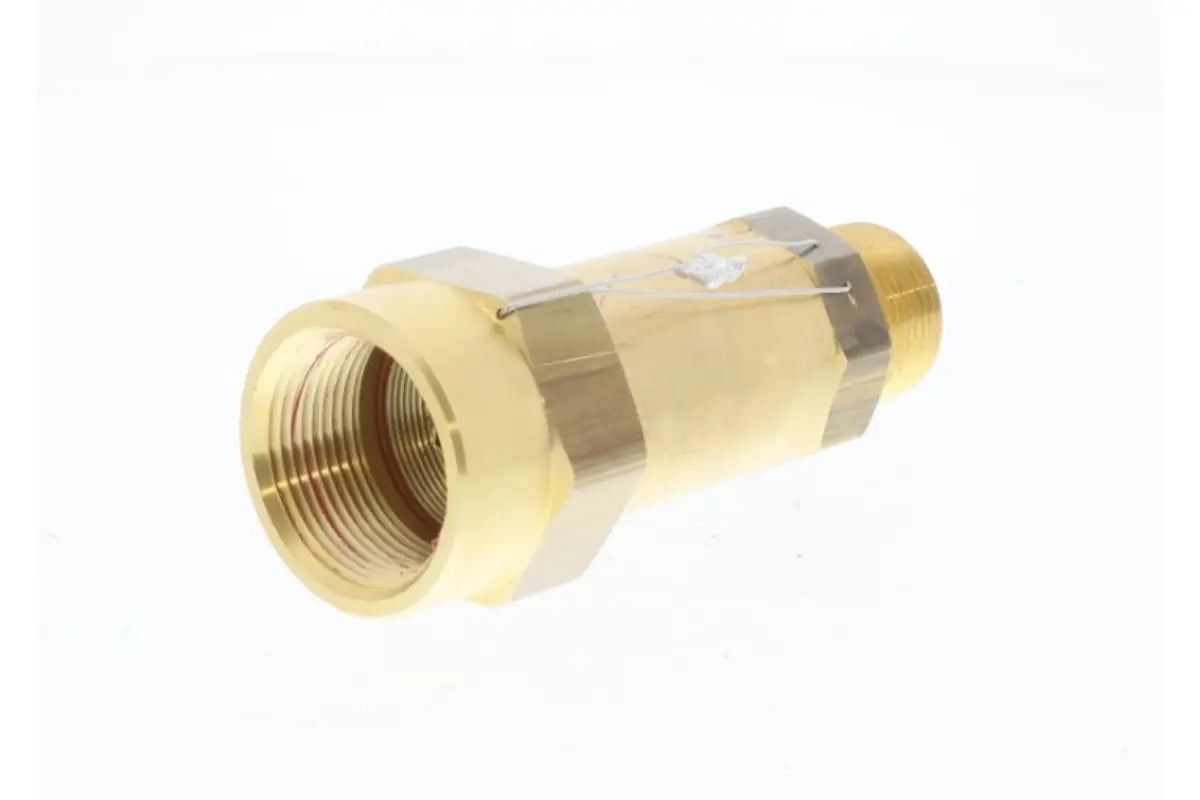

Mueller Industries AD18444 Pressure Relief Valve 235 PSI 1 inches x 1-1/4 inches

Product Description

The Mueller Industries AD18444 straight thru pressure relief valve is designed to control or limit pressure in a system. It has a set pressure of 235 pounds per square inch and features female National Pipe Taper (NPT) threads on one end and male NPT threads on the other, with sizes of 1 inch and 1-1/4 inch respectively. This valve is designed for maximum discharge capacities.

• Temperature Range: -40°F/300°F, -40°C/149°C
• Designed primarily for use on liquid receiver applications above the liquid refrigerant level
• Complies with ASME code for unfired pressure vessels

Product Highlights

The Mueller Industries pressure relief valve is suitable for installation into piping systems to safely release excess pressure. It conforms to Pressure Equipment Directive 2014/68/EU, CRN, and is compatible with all CFC, HCFC and HFC refrigerants and oils.

Product Information

Standard Information

• Brand: MUELLER INDUSTRIES
• Manufacturer Part Number: AD18444

Technical Specifications

• Manufacturer: Mueller Industries
• Part Number: AD18444
• Set Pressure: 235 pounds per square inch
