Mueller Industries AC06020 Acr Copper Tube 7/8 in Od 20 Ft

Product Description

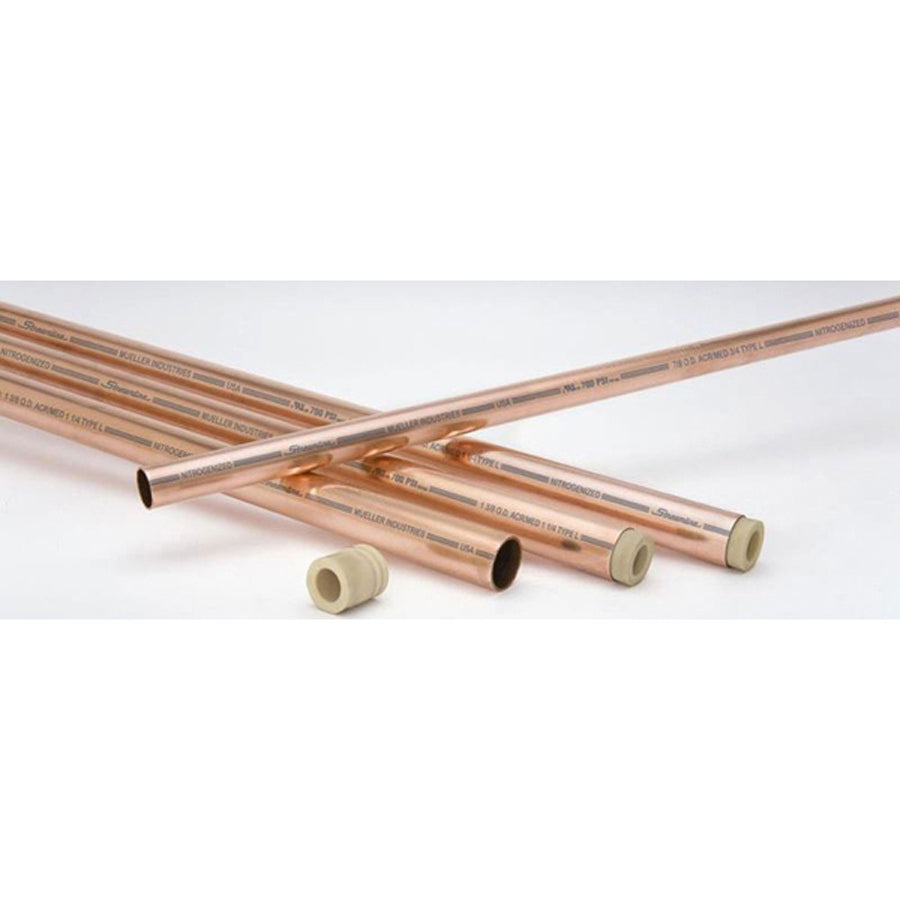

The MUELLER INDUSTRIES AC06020 is a 7/8-inch OD ACR-grade copper tube designed for air conditioning and refrigeration line sets. Manufactured from C12200 copper to ASTM B280 specification, this tube meets the cleanliness and pressure requirements of HVACR and medical gas applications. It carries a 700 psi pressure rating and ships in a 20-foot length. Each tube is cleaned through a proprietary multi-stage process, charged with 99.9% nitrogen, and sealed under low pressure to maintain internal purity from the factory to the job site. Blue ink markings identify the tube as ACR and nitrogen-charged stock.

This tube is suited for residential and light commercial HVACR installations where ACR-grade copper line is required. It is appropriate for refrigerant suction and liquid lines, refrigeration equipment connections, and medical gas piping where ASTM B280 compliance is specified. The nitrogen charge protects the internal bore from oxidation and moisture contamination during storage and transport. The 20-foot straight length is a common format for field fabrication by HVAC technicians, refrigeration mechanics, and pipefitters working on new installations or equipment changeouts.

Key Features

• C12200 copper construction to ASTM B280 specification for ACR and medical gas service
• 700 psi pressure rating for refrigeration and air conditioning line applications
• Factory-cleaned and charged with 99.9% nitrogen, sealed under low pressure
• Blue ink markings identify nitrogen charge and ACR or medical gas suitability
• End plugs extend slightly beyond tube ends and maintain internal pressure from -20 degrees F to 150 degrees F
• Cut lengths can be immediately re-plugged to preserve internal cleanliness for later use
• Made in the USA

Compatibility

Designed for HVACR and refrigeration applications requiring ASTM B280 ACR copper tube with a 7/8-inch outside diameter. Also listed for medical gas use where applicable standards permit. UL listed for use in Canada and the United States.

Installation Notes

Installation is typically performed by licensed HVAC technicians or refrigeration mechanics. Shut down and isolate the refrigeration system and recover any refrigerant in accordance with EPA Section 608 regulations before cutting into an existing line. Use a sharp tube cutter sized for the OD to avoid work-hardening the cut end, and ream the bore to remove burrs before brazing or flaring. Re-plug cut ends immediately when work is paused to prevent contamination of the internal bore.

Technical Specifications

• Outside Diameter: 7/8 inch
• Length: 20 feet
• Pressure Rating: 700 psi
• Material: C12200 Copper
• Material Specification: ASTM B280
• Nitrogen Charge: 99.9% nitrogen, sealed under low pressure
• Temperature Range (Plugs): -20 degrees F to 150 degrees F
• Weight: 0.455 pounds
• Applicable Standard: UL (Canada and US)
• Country of Origin: USA

Standard Information

• Brand: MUELLER INDUSTRIES
• Manufacturer Part Number: AC06020
