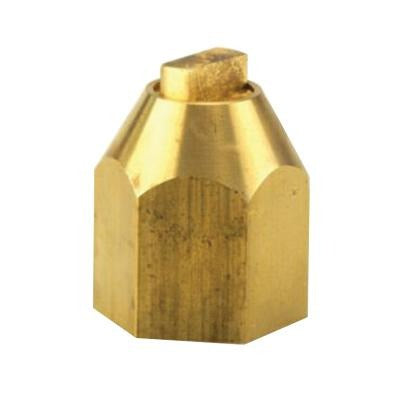

Mueller Industries A18355 Retrofit Cap Assembly 1-3/4 in

Product Description

Mueller Industries A18355 is a brass retrofit cap assembly designed for Cycle Master ball valves to cover and secure pipe ends and enable retrofit modifications. The cap measures 2.66 in length by 1.88 in height, mounts with a 1 3/4-16 UN thread, and fits 2-5/8 to 3-1/8 in full port valves. It uses dual O-ring stem seals and a base seal to ensure positive isolation and includes a large nut to secure the assembly.

• Brass construction with nominal size 1-3/4 in and overall dimensions 2.66 in L x 1.88 in H
• Large nut secures cap assembly; center post turns for on/off operation and visual identification
• Dual O-ring stem seals and base seal for positive isolation; thread size 1 3/4" - 16 UN; recommended sealing torque 45–50 ft·lb (61–68 N·m)

Product Highlights

Brass retrofit cap, 1-3/4 in nominal, fits 2-5/8–3-1/8 in full port Cycle Master ball valves; 1 3/4-16 UN thread; dual O-ring stem seals.

Product Information

Standard Information

• Brand: MUELLER INDUSTRIES
• Manufacturer Part Number: A18355
• Country of Origin: United States
