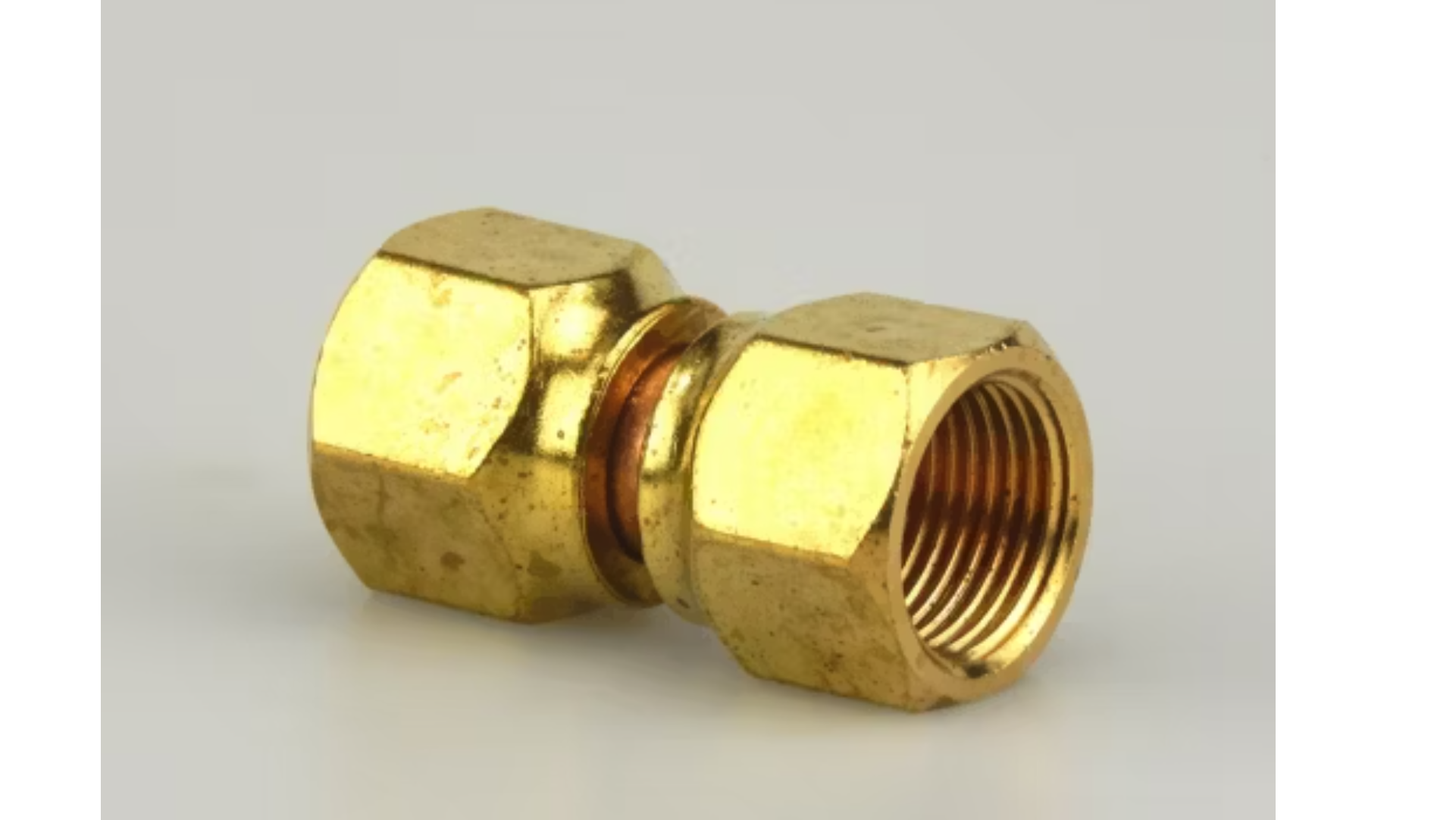

Mueller Industries A13568 Union Fitting 5/8 inches 45 deg

Product Description

The MUELLER INDUSTRIES A13568 is a 5/8" union fitting with a 45-degree female flared swivel. Fabricated from brass, this straight union fitting is designed for refrigeration applications. It features a smooth interior finish for unrestricted flow and reduced pressure drop and is accurately machined to assure tight, leak-proof joints.

• Fabricated from Brass Forgings or Drawn Brass Rod Eliminating the Possibility of Seepage by Porosity
• Accurately Machined and Fully Protected Against Damage During Shipping, Handling and Storage to Assure Tight Leak‐Proof Joints
• Smooth Interior Finish Provides Unrestricted Flow and Reduced Pressure Drop

Product Highlights

This brass union fitting ensures a tight, leak-proof seal and is ideal for refrigeration systems requiring a reliable connection.

Product Information

Standard Information

• Brand: MUELLER INDUSTRIES
• Manufacturer Part Number: A13568

Technical Specifications

• Brand: Mueller Industries
• End Connection: 45 Degree Female Flared Swivel x 45 Degree Female Flared Swivel
• Pressure Rating: 700 PSIG
• Process: Fabricated
• Size A: 5/8 Inch
• Size B: 5/8 Inch
• Type: Straight
• Application: Refrigeration
• Applicable Standard: SAE J513, MS-35867/MS-35873/MS-35919/MS-16993/MS‐24815, ISO 9001
• RoHS Compliant: Yes
• Hex Size: 11/16 Inch
