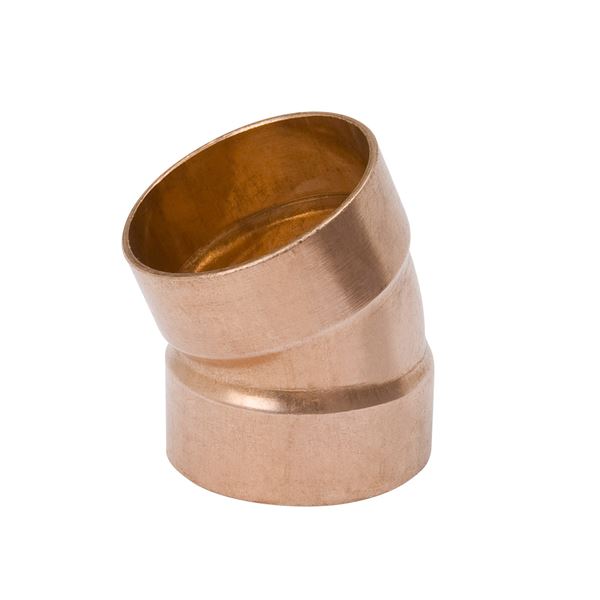

Mueller Industries A07098 22-1/2 Degree DWV Elbow

Product Description

The Mueller Industries A07098 is a fitting designed for drain, waste, and vent plumbing applications. This elbow fitting features a 22.5-degree angle and is made from either high-grade bronze or wrot copper. It utilizes cup (female solder) connections and is intended for use in non-pressurized sanitary systems. This fitting meets the ASME standards B16.23 and B16.29. Its nominal size is two inches.

• Designed for non-pressurized drain, waste, and vent systems.
• Features cup solder connections.
• Constructed from durable bronze or wrot copper materials.

Product Highlights

This elbow fitting is suitable for a variety of DWV applications. Its construction ensures reliability in sanitary plumbing systems.

Product Information

Standard Information

• Manufacturer Part Number: A07098
• Application Type: DWV

Technical Specifications

• End Style: Sweat
• Material: Bronze
• Nominal Size: 2 in
• End Type: C - Cup (Female Solder)
• End Size: 2 in
• Overall Length: 2.50 inches
• Overall Height: 2.43 inches
• Overall Width: 2.44 inches
• Standards: ASME B16.23, ASME B16.29
