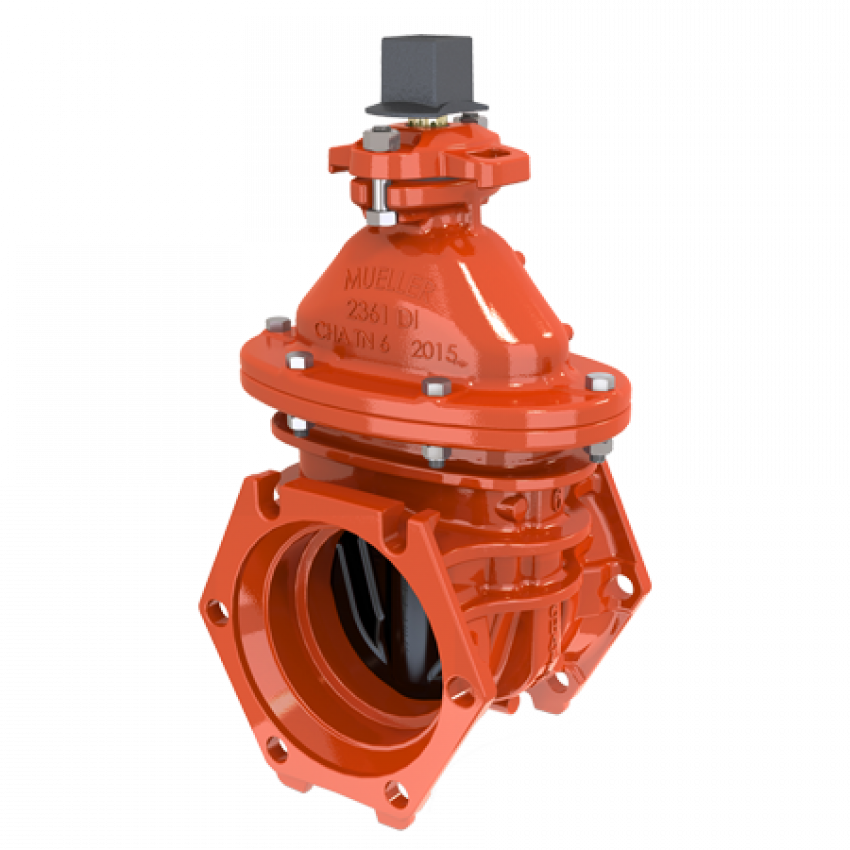

Mueller Industries a-2361-23 Resilient Wedge Gate Valve

Product Description

The MUELLER INDUSTRIES a-2361-23 is a resilient wedge gate valve rated for 350 psi maximum working pressure, designed for potable water distribution systems. Available in sizes ranging from 3 inches through 12 inches, this valve features a non-rising stem (NRS) configuration and standard mechanical joint ends that comply with ANSI/AWWA C111. Interior and exterior surfaces receive a nominal 10-mil Pro-Gard Fusion Bonded Epoxy coating meeting ANSI/AWWA C550 requirements. The fully encapsulated iron wedge leaves no exposed iron, and a triple O-ring seal stuffing box provides reliable sealing performance. Licensed plumbers and waterworks contractors are the typical installers for this product.

This gate valve is suited for potable water main installations in both municipal and commercial waterworks applications. It is rated UL Listed and FM Approved at 350 psi and certified to NSF/ANSI/CAN 61 and 372, making it appropriate for systems that require compliance with drinking water safety standards. The 2-inch square wrench nut accommodates standard operating keys and can be configured for open-left or open-right operation depending on system requirements. Available sizes include 3, 4, 6, 8, 10, and 12 inches to cover a range of mainline and branch service applications.

Key Features

• 350 psi maximum working pressure with 700 psi static test pressure rating
• Non-rising stem design suitable for installations with limited vertical clearance
• Iron wedge fully encapsulated with molded rubber, eliminating exposed iron surfaces
• Nominal 10-mil Pro-Gard Fusion Bonded Epoxy coating on all interior and exterior surfaces
• Triple O-ring seal stuffing box: two seals above the thrust collar, one below
• Meets ANSI/AWWA C515, UL 262 Listed, FM 1120/1130 Approved, NSF/ANSI/CAN 61 and 372 certified

Compatibility

Standard mechanical joint ends comply with ANSI/AWWA C111, making this valve compatible with standard mechanical joint pipe and fittings used in municipal potable water distribution systems. Available in 3, 4, 6, 8, 10, and 12 inch sizes.

Installation Notes

Installation should be performed by a licensed plumber or certified waterworks contractor in accordance with local codes and ANSI/AWWA standards. Depressurize and isolate the line before beginning any valve installation or service work. Standard mechanical joint assembly requires appropriate gaskets, glands, and bolts per ANSI/AWWA C111 specifications. Verify that the operating nut orientation, open-left or open-right, matches the system requirements before final installation.

Technical Specifications

• Maximum Working Pressure: 350 psi (2400 kPa / 24 barg)
• Static Test Pressure: 700 psi (4800 kPa / 48 barg)
• Available Sizes: 3, 4, 6, 8, 10, 12 inches
• Stem Type: Non-rising stem (NRS)
• End Connection: Mechanical joint (MJ x MJ), ANSI/AWWA C111
• Operating Nut: 2-inch square wrench nut, open-left or open-right
• Interior/Exterior Coating: Nominal 10-mil Fusion Bonded Epoxy (ANSI/AWWA C550)
• Wedge Material: Iron, fully encapsulated with molded rubber
• Certifications: UL 262 Listed, FM 1120/1130 Approved, NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, ANSI/AWWA C515
• Application: Potable water

Standard Information

• Brand: MUELLER INDUSTRIES
• Manufacturer Part Number: a-2361-23
