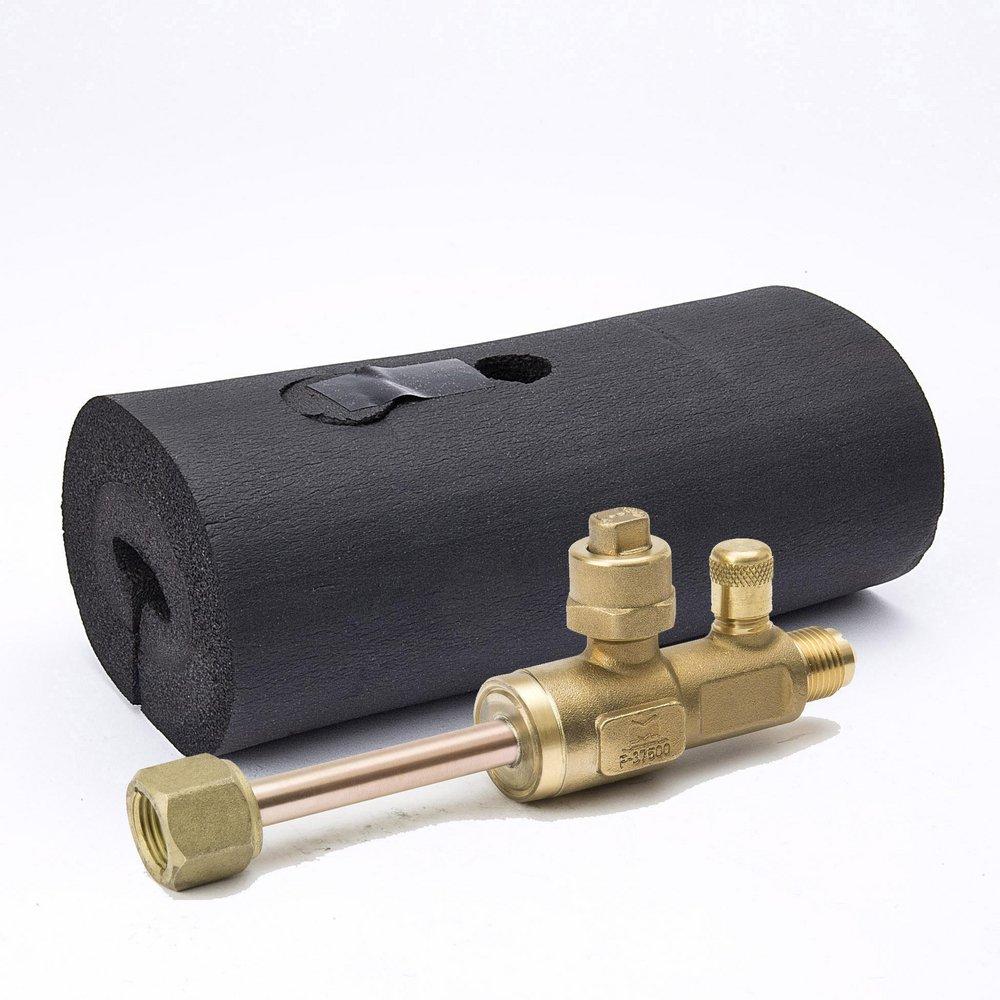

Mueller Industries A 18568U Multi Split Ball Valves - Unibody Female x Male Flare

Product Description

The MUELLER INDUSTRIES A 18568U is a CYCLEMASTER® ball valve with a design pressure of 775 psig and a continuous operating temperature range of -40°F to 300°F. It features full port construction to match line size ID and an internally equalized ball design. It's UL/cUL Listed and conforms to Pressure Equipment Directive 2014/68/EU.

• Design Pressure (DP) / Maximum abnormal pressure (MAP): 775 psig, 53 bar
• Continuous operating temperature (COT): -40°F/300°F, -40°C/149°C
• Full port construction to match line size ID

Product Highlights

This ball valve is suitable for use with CFC, HCFC, HFC, and HFO refrigerants and oils. It features a rupture-proof encapsulated stem and MCM Seal Technology.

Product Information

Standard Information

• Brand: MUELLER INDUSTRIES
• Manufacturer Part Number: A 18568U

Technical Specifications

• Design Pressure (DP) / Maximum abnormal pressure (MAP): 775 psig, 53 bar
• Continuous operating temperature (COT): -40 F/300 F, -40 C/149 C
• End Connection 1: Female
• End Connection 2: Male Flare
• End Connections: Female x Male Flare
• Material: Brass
• Pressure - Maximum: 775 psi
• Temperature Range: -40 to 300 Deg F (-40 to 149 Deg C)
• Valve Body Material: Brass
• Valve Port Opening: Full Port
• Valve Size: 3/8 in
• Valve Stem: Rupture?Proof
• Valve Type: Ball Valve
• Pressure Class: 775#
• UL Listed: Yes
• UPC: 685768403241
