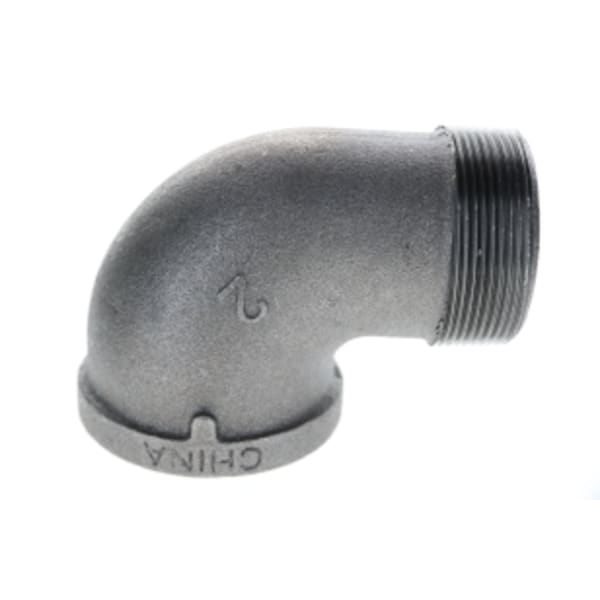

Mueller Industries 520-308 90-Degree Street Elbow FPT x MPT

Product Description

The Mueller Industries 520-308 is a 90-degree street elbow made from malleable iron. It features NPT threaded ends for solid connections in various piping systems. This fitting is suitable for use with lubricant, oil, grease, LPG, and fuel types.

• Constructed from malleable iron
• Meets ANSI/ASME B1.20.1 standards
• Rated for a maximum pressure of three hundred psi

Product Highlights

This elbow is reliable for high-pressure applications and maintains strength at elevated temperatures.

Product Information

Standard Information

• Brand: Mueller Industries
• MPN: 520-308

Technical Specifications

• Angle: 90 degrees
• Nominal Size: two inches
• Inlet Diameter: two inches
• Outlet Diameter: two inches
• End Style: NPT
• Inlet Connection: FIP
• Outlet Connection: MIP
• Pressure Class: Class 150
• Working Pressure: three hundred psi WOG
• Material: Malleable Iron
• Material Specification: ASTM A197
• Finish: Black Oxide
• Industry Standards: ANSI B1.20.1, ASME B.16.3/B-16.14/B16-39
• Temperature Rating: one hundred fifty degrees Fahrenheit
• Product Length: two point ninety-nine inches
• Product Height: three point fifty-eight inches
• Product Width: four point seventy-six inches
• Product Weight: two point zero fifteen lbs
• Minimum Temperature: negative twenty degrees Fahrenheit
• Working Temperature: seventy-seven degrees Fahrenheit
• Maximum Temperature: three hundred forty-seven degrees Fahrenheit
• Product Type: 90 Elbows
• Standards: NSF/ANSI 372, NSF/ANSI 61, ASME B16.3, FM 1920
