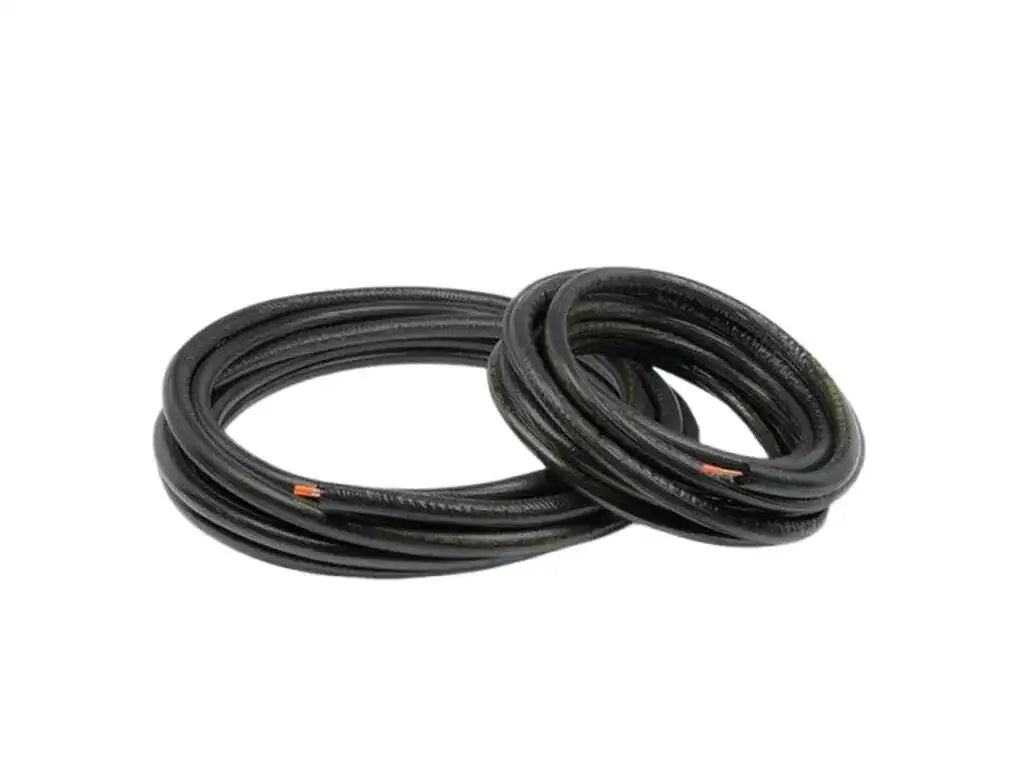

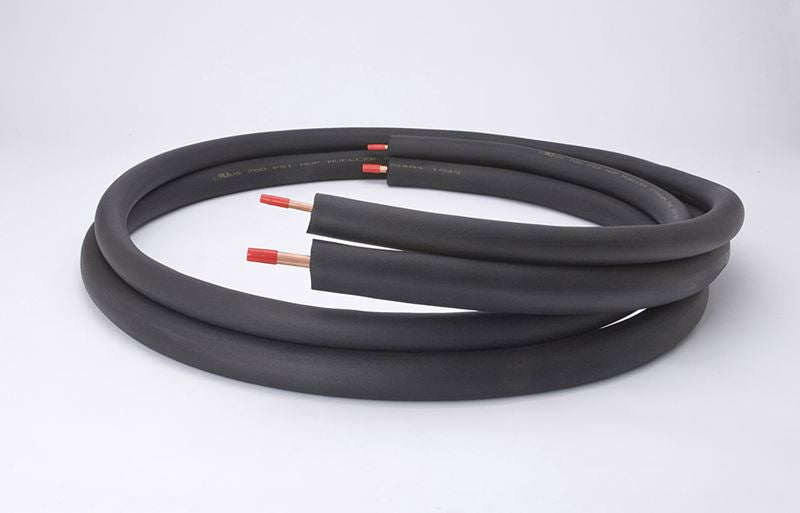

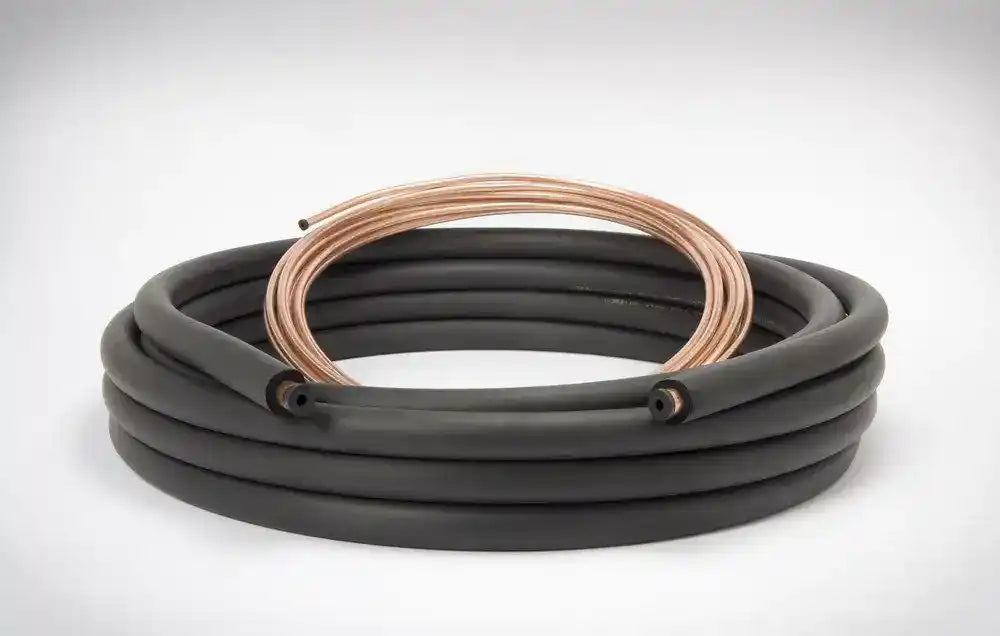

Mueller Industries 40820250B6C Mini Split Refrigerant Line Set 25 Ft.

Product Description

The Mueller Industries 40820250B6C is a mini-split refrigerant line set designed for both standard and mini-split applications. Measuring twenty-five feet, this line set features a one-fourth inch liquid line and one-half inch suction line. It is proudly made in the USA and complies with UL standards, allowing for a maximum pressure of seven hundred PSI.

• Duraguard UV insulation for weather resistance
• Quality construction using C12200 copper
• Suitable for various applications including HVAC systems

Product Highlights

Engineered to endure harsh outdoor conditions, this line set is ideal for mini-split systems.

Product Information

Standard Information

• Brand: Mueller
• Type: Mini-Split Line Set

Technical Specifications

• Length: 25 feet
• Insulation Thickness: 1/2 inch
• Liquid Line Size: 1/4 inch
• Suction Line Size: 1/2 inch
• Material: C12200 Copper
• Insulation Material: Elastomeric (black)
• Standards: ASTM B1003, UL 700 PSI
• Warranty: 10 years on copper tube, 5 years on insulation
