Mueller Industries 40680150b3b6 Mini Split Line Set

Product Description

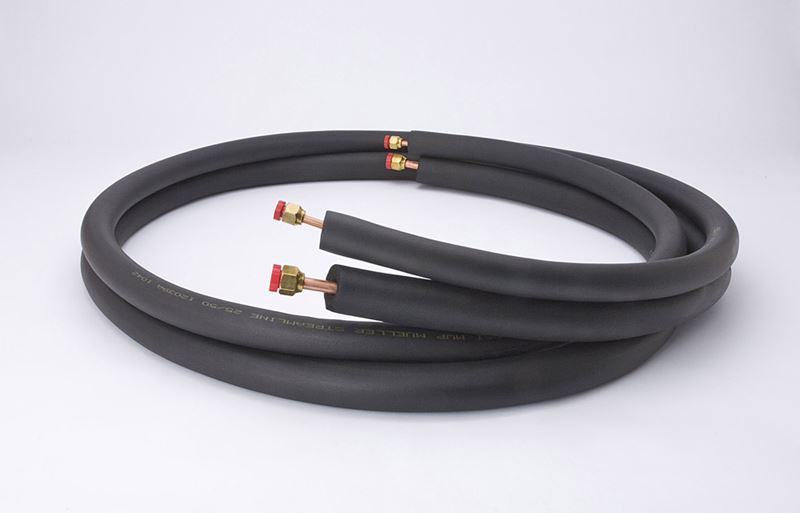

The MUELLER INDUSTRIES 40680150b3b6 is a mini split refrigerant line set configured with flare fittings on both the liquid and suction lines. The liquid line measures 1/4 inch and the suction line measures 3/8 inch, with both lines fully insulated using 3/8-inch-wall elastomeric (black) insulation. Copper tubing is manufactured from C12200 alloy, meeting ASTM B1003 standards and rated to 700 psi per UL requirements. Licensed HVAC technicians install this line set when connecting a ductless mini split indoor air handler to its outdoor condensing unit.

This line set is suited for residential and light-commercial ductless mini split installations where a pre-configured flare-connection line set is required. Both lines arrive insulated, reducing field labor for insulation wrap. The 1/4-inch liquid line and 3/8-inch suction line diameters are common pairings for single-zone mini split systems. No 90-degree pre-formed bends are included, allowing the installer to route and bend the lines to fit the specific job layout.

Key Features

• C12200 copper tubing meets ASTM B1003 and is UL-rated to 700 psi
• 1/4-inch liquid line and 3/8-inch suction line — common mini split sizing
• 3/8-inch-wall elastomeric black insulation on both lines
• Flare fittings factory-installed on both lines — no field flaring required at connection ends
• Straight configuration with no pre-formed 90-degree bends for flexible routing
• Both lines insulated from the factory, reducing field wrap labor

Compatibility

Designed as an OEM-style replacement or new-installation line set for ductless mini split systems requiring 1/4-inch liquid and 3/8-inch suction line connections with flare fittings.

Installation Notes

Installation should be performed by a licensed HVAC technician following applicable mechanical codes and EPA Section 608 refrigerant handling requirements. Shut down and isolate the mini split system completely before connecting or disconnecting line set fittings. Verify flare seat condition and torque flare nuts to the mini split manufacturer's specification using calibrated flare-nut wrenches — do not over-tighten. Pressure-test and evacuate the line set to the system manufacturer's required vacuum level before introducing refrigerant.

Technical Specifications

• Line Set Type: Mini Split Line Set
• Liquid Line Size: 1/4 inch
• Suction Line Size: 3/8 inch
• Insulation Material: Elastomeric (black)
• Insulation Wall Thickness: 3/8 inch
• Finish: Flare Fittings
• Both Lines Insulated: Yes
• 90-Degree Bends: No
• Material: C12200 Copper
• Standards: ASTM B1003, UL 700 psi
• Weight: 3.21 pounds

Standard Information

• Brand: MUELLER INDUSTRIES
• Manufacturer Part Number: 40680150b3b6
