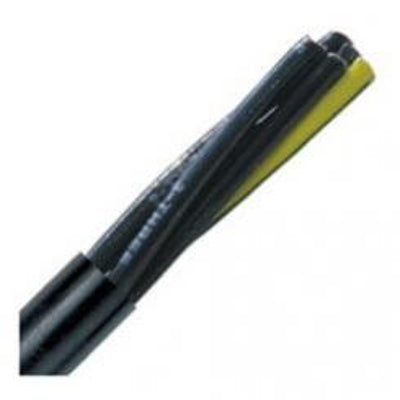

Mueller Industries 221605 LAPP ÖLFLEX TRAY II Unshielded Flexible Tray Cable

Product Description

The Mueller Industries LAPP ÖLFLEX TRAY II is an industrial-grade unshielded flexible tray cable, identified by MPN 221605. It is built for longevity and superior oil performance in various applications. The cable features a pressure-extruded jacket and fine copper stranding, promoting flexibility and simplifying installation in tray setups.

• Utilizes black numbered conductors for straightforward identification.
• Designed for easy pulling, potentially lowering labor costs.
• Ideal for industrial plant expansions and automotive installations.

Product Highlights

This cable is suitable for numerous industrial applications and meets multiple safety standards.

Product Information

Standard Information

• Manufacturer: LAPP
• Series: ÖLFLEX TRAY II

Technical Specifications

• AWG/Gauge: 16
• Number of Conductors: 5
• Conductor Material: Bare copper
• Conductor Color: Black with white printing plus green/yellow ground
• Conductor Stranding: Stranded
• Shielding: Unshielded
• Jacket Color: Black
• Jacket Material: Thermoplastic Polymer
• Nominal OD: 0.381 inches
• Insulation: PVC/Nylon
• Voltage: 600V
• Temperature Range: -13°F to +194°F
• Dynamic Temperature Rating: -13°F to +221°F
• Static Temperature Rating: -40°F to +221°F
• Attributes: Multi-Conductor
• Tray Ratings: UL ITC-ER, UL PLTC-ER, UL TC-ER
• Standards/Approvals: UL Approved, CSA Approved, CE Approved
• Application: Industrial plant expansions, automotive plants, tray wiring
• Weight: 99 lbs/MFT
