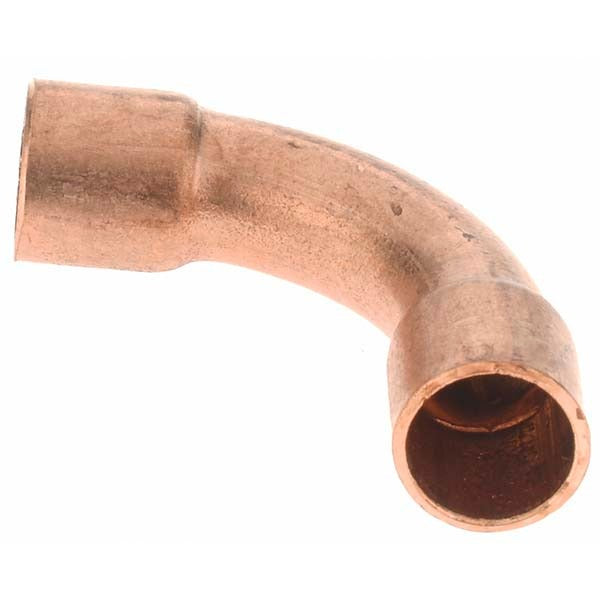

Mueller Industries 15847 Copper 90 Lr Elbow 1/4 X 1/4 Cxc

Product Description

The MUELLER INDUSTRIES 15847 is a wrot copper 90-degree long radius elbow designed for sweat-connect copper piping systems. It accepts 1/4-inch nominal tubing on both ends using a copper-to-copper (C x C) end connection. The long radius geometry reduces flow turbulence and pressure drop compared to standard short radius fittings, making it a preferred choice in refrigeration lines, small-diameter domestic water supply, and HVAC condensate and refrigerant piping. Plumbers, pipefitters, and HVAC technicians install this fitting using standard soldering or brazing procedures in accordance with applicable plumbing and mechanical codes.

This elbow is suited for residential and light commercial applications where 1/4-inch copper tubing must change direction at a 90-degree angle. Common installation scenarios include refrigeration piping, capillary-adjacent low-pressure lines, and small-bore domestic water branches. The C x C connection style is compatible with standard copper tube solder-joint fittings per ASME B16.22. It is sold in packages of 5 individual fittings per standard package quantity.

Key Features

• Wrot copper construction for superior strength and corrosion resistance compared to cast fittings
• Long radius 90-degree sweep reduces flow restriction and pressure drop
• C x C (copper-to-copper) sweat ends compatible with standard solder-joint assembly
• 1/4-inch x 1/4-inch nominal size with 3/8-inch outside diameter on both ends
• Packaged in quantities of 5 fittings per pack

Compatibility

Designed as an OEM-style replacement and new-installation fitting for 1/4-inch nominal copper tubing systems using solder-joint (sweat) connections per ASME B16.22 standards.

Installation Notes

Installation should be performed by a licensed plumber or HVAC technician in compliance with local plumbing codes and ASTM B88 copper tube standards. Shut off and depressurize the system and allow all piping to cool completely before cutting and fitting. Clean tube ends and fitting cups thoroughly with emery cloth and apply flux before soldering or brazing. Do not overheat the fitting during the soldering process, as excessive heat can damage the fitting socket or surrounding materials.
