Mueller Industries 116-502 Brass Gas Ball Valve 3/8 in Flare

Product Description

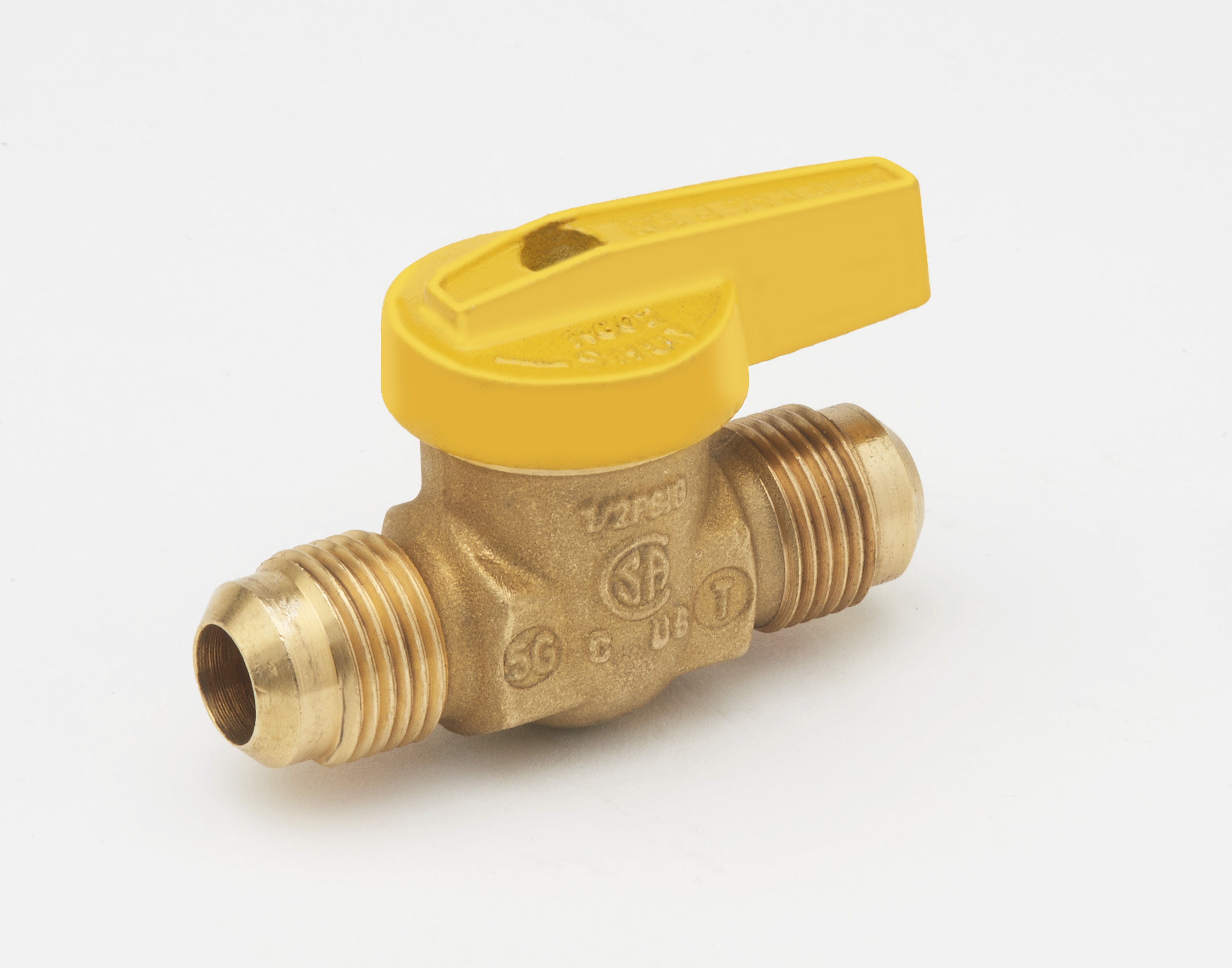

The MUELLER INDUSTRIES 116-502 is a one-piece forged brass gas ball valve with 3/8-inch flare inlet and 3/8-inch flare outlet connections. The one-piece body construction minimizes potential leak points, extending service life and providing reliable flow control on gas lines. The yellow lever handle provides a clear visual indicator that the valve is installed on a gas supply line and allows for fast quarter-turn shutoff. Licensed plumbers and gas fitters install this valve on residential and light commercial gas piping systems.

This valve is rated for use with natural gas, LP gas, and oil, as well as traditional plumbing applications. The forged brass body suits installations where a compact, durable shutoff is required at an appliance connection, meter outlet, or inline service point. The flare-by-flare end connections make it well suited for copper tubing gas line assemblies in residential service work.

Key Features

• One-piece forged brass body reduces leak paths and extends valve life
• 3/8-inch flare x 3/8-inch flare end connections for copper tubing gas lines
• Yellow lever handle provides gas-line identification and quick quarter-turn operation
• Compatible with natural gas, LP gas, oil, and standard plumbing service

Compatibility

Designed as an OEM-style replacement or new-installation shutoff valve for 3/8-inch flare gas line assemblies in residential and light commercial natural gas and LP gas systems.

Installation Notes

Installation should be performed by a licensed plumber or gas fitter in accordance with local codes and IFGC requirements. Shut off the upstream gas supply and verify zero pressure before removing or installing any gas valve. Flare connections must be made with properly flared copper tubing and appropriate flare nuts — do not overtighten fittings. Leak-test all connections with an approved gas leak detection solution after restoring supply pressure.

Technical Specifications

• Body Material: Forged Brass
• Inlet Connection: 3/8 inches Flare
• Outlet Connection: 3/8 inches Flare
• Body Style: One-Piece
• Compatible Media: Natural Gas, LP Gas, Oil, Water
• Handle Color: Yellow
• UPC: 032888165021

Standard Information

• Brand: MUELLER INDUSTRIES
• Manufacturer Part Number: 116-502
