Mueller Industries 113-526 Brass Gas Ball Valve 1-1/4 in Fip

Product Description

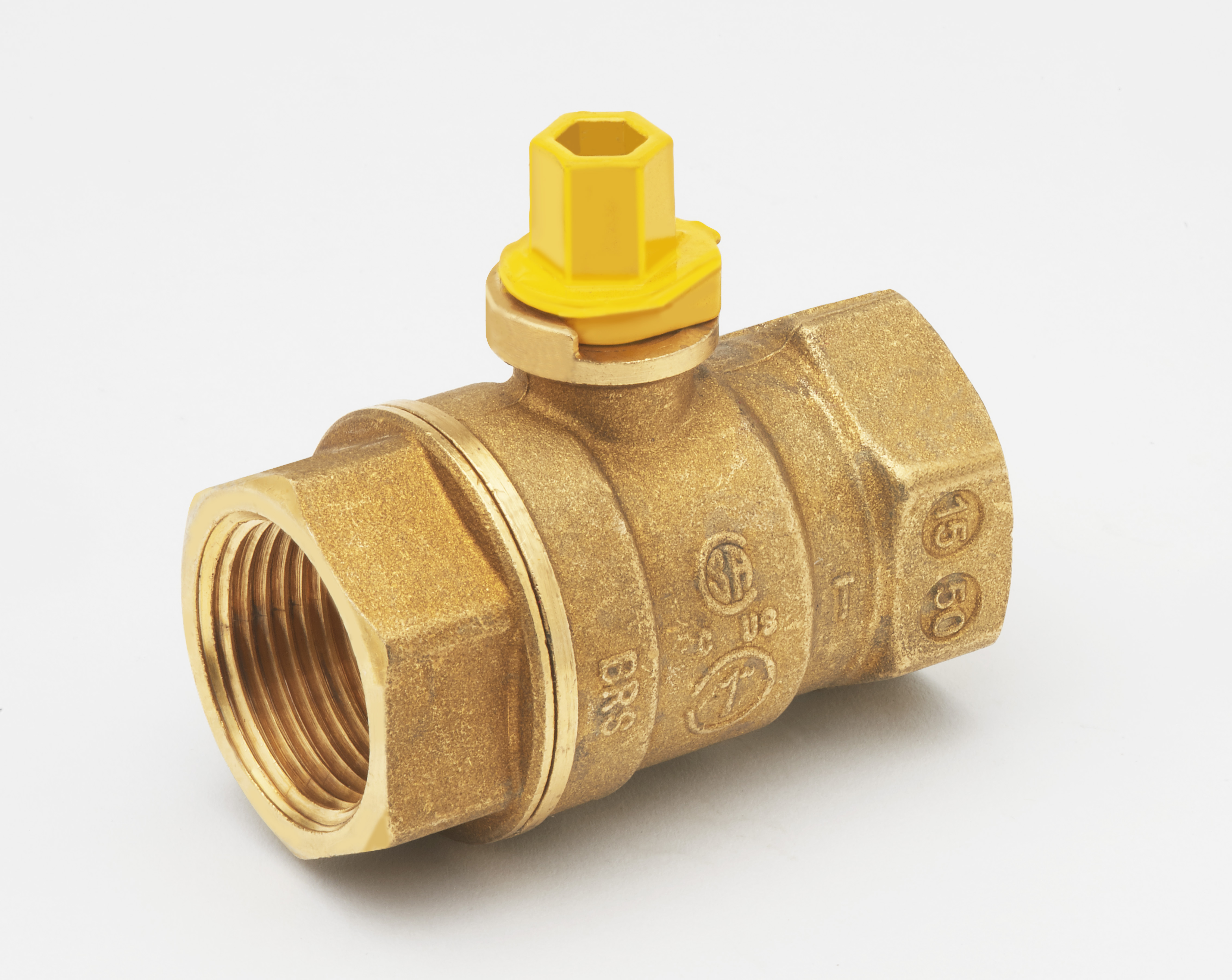

The MUELLER INDUSTRIES 113-526 is a one-piece forged brass gas ball valve designed for shutoff and flow control on gas distribution lines. The one-piece body construction reduces leak paths and extends service life compared to multi-piece assemblies. It features a 1-1/4 inches female iron pipe (FIP) inlet and a 1-1/4 inches FIP outlet, making it a direct threaded connection on both ends. The square head handle is yellow, a standard visual indicator that identifies the valve as part of a gas service line and allows for quick open/closed identification. Licensed plumbers and gas fitters install this valve in residential and light commercial piping systems.

This valve is rated for use with natural gas, LP gas, oils, and general plumbing service. It is suited for residential gas supply lines, appliance isolation, and light commercial gas distribution where a full-port, threaded shutoff is required. The forged brass body provides corrosion resistance in typical indoor and buried-adjacent installations. The 1-1/4 inches FIP x 1-1/4 inches FIP end configuration fits standard iron pipe and compatible fittings commonly found in residential and commercial gas rough-in work.

Key Features

• One-piece forged brass body minimizes leak points and extends valve service life
• 1-1/4 inches FIP x 1-1/4 inches FIP threaded connections for standard iron pipe installation
• Yellow square head handle provides visual gas-line identification and tamper-resistant operation
• Compatible with natural gas, LP gas, oils, and traditional plumbing applications
• Full-port ball valve design supports unrestricted flow when open

Compatibility

Designed as an OEM-style replacement or new-installation shutoff valve for 1-1/4 inches iron pipe gas and plumbing systems. This valve supersedes old part number 110-526.

Installation Notes

Installation must be performed by a licensed plumber or gas fitter in accordance with local codes and the International Fuel Gas Code (IFGC). Shut off the upstream gas supply and verify zero pressure before removing or installing any valve. Apply an approved thread sealant or PTFE tape rated for gas service to all male threads before making up connections. After installation, perform a leak test with an approved gas leak detection solution before restoring service.

Technical Specifications

• Body Material: Forged Brass
• Inlet Connection: 1-1/4 inches FIP
• Outlet Connection: 1-1/4 inches FIP
• Body Style: One-Piece
• Handle Type: Square Head, Yellow
• Media: Natural Gas, LP Gas, Oil, Water
• UPC: 032888135260

Standard Information

• Brand: MUELLER INDUSTRIES
• Manufacturer Part Number: 113-526
