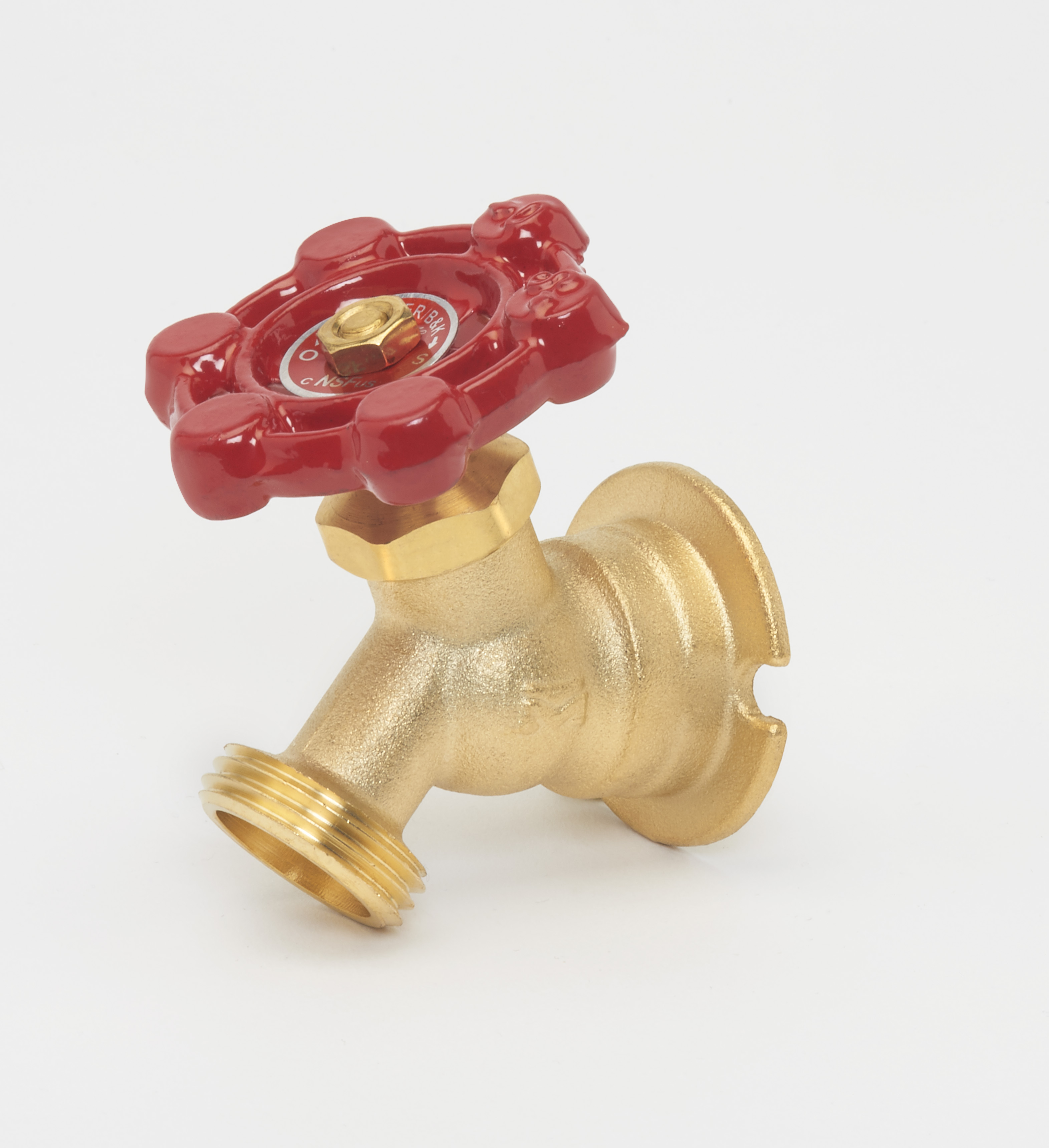

Mueller Industries 108-004 Brass Sillcock 3/4in Fip X Mht

Product Description

The MUELLER INDUSTRIES 108-004 is a brass sillcock designed for outdoor water supply applications in both residential and commercial settings. It features a 3/4-inch female iron pipe (FIP) inlet and a 3/4-inch male hose thread (MHT) outlet, making it a direct connection point between a supply line and a standard garden hose. The body is constructed from brass for corrosion resistance and long service life. A notched flange provides a stable, secure mount against exterior wall surfaces. Operation is handled by a multi-turn handle, which gives the installer and end user precise flow control without the abrupt shutoff of a quarter-turn valve.

This sillcock is suited for exterior wall installation on residential homes, light commercial buildings, and irrigation system hookups. It is used wherever a threaded supply line terminates at an outdoor hose connection point. The 3/4-inch MHT outlet accepts standard garden hose fittings, making it compatible with the majority of hoses and hose-end accessories on the market. Plumbers and general contractors install this fitting during new construction rough-in as well as replacement service on existing exterior water supplies.

Key Features

• Brass construction for corrosion resistance and durability in outdoor environments
• 3/4-inch FIP inlet threads onto standard supply line piping
• 3/4-inch MHT outlet accepts most standard garden hose fittings
• Notched flange for secure, stable wall mounting
• Multi-turn handle for controlled, incremental flow adjustment

Compatibility

Designed as an OEM-style replacement or new-installation sillcock for residential and light commercial exterior water supply systems with 3/4-inch FIP supply connections.

Installation Notes

Installation is typically performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off the water supply and relieve line pressure before removing an existing sillcock or making new connections. Apply thread sealant tape or pipe compound to all threaded connections before assembly. Ensure the notched flange is properly seated and fastened to the wall structure to prevent stress on the supply pipe.

Technical Specifications

• Inlet Connection: 3/4 inches FIP
• Outlet Connection: 3/4 inches MHT
• Body Material: Brass
• UPC: 032888080041

Standard Information

• Brand: MUELLER INDUSTRIES
• Manufacturer Part Number: 108-004
