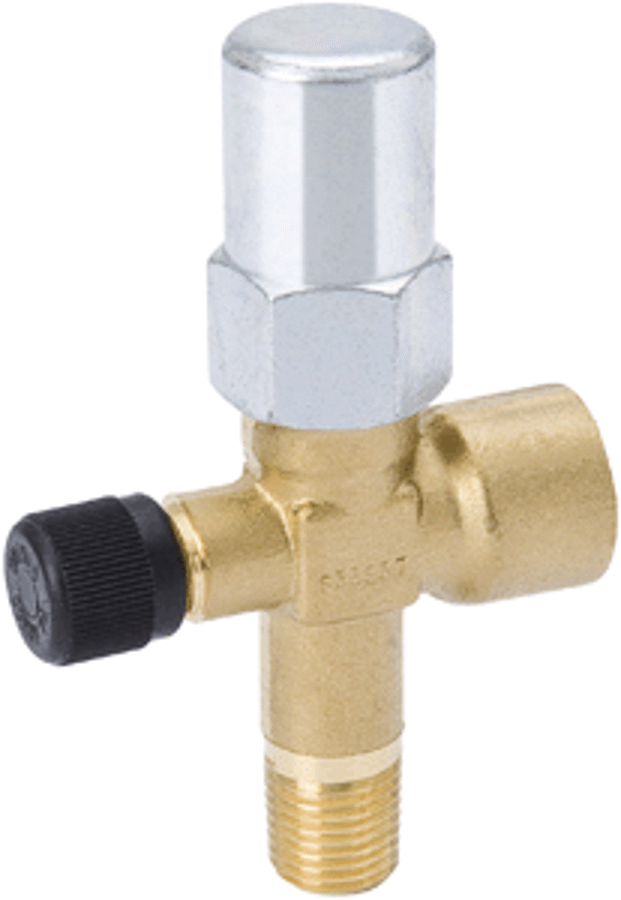

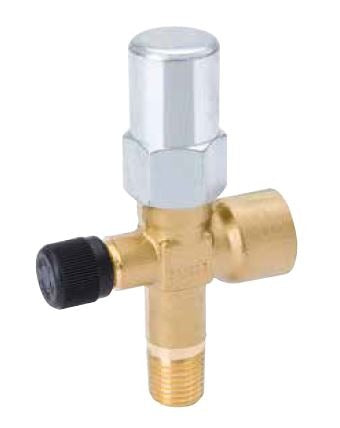

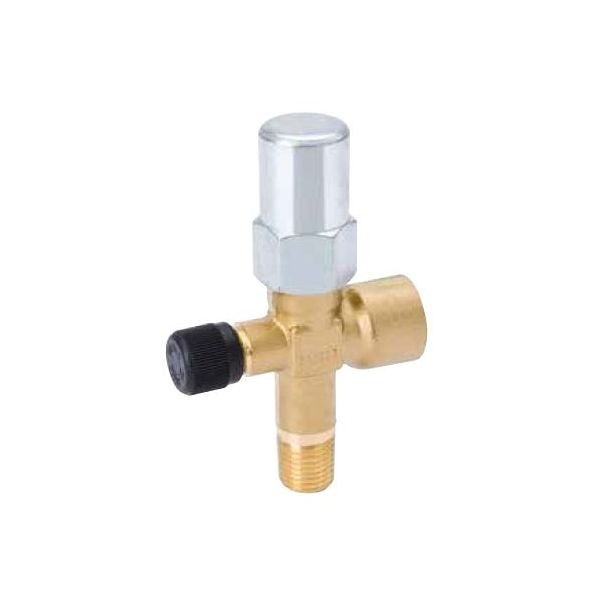

Mueller Industries B34254 Transducer Valve 1/8 in NPTFI x 1/4 in NPTFE

Product Description

The Mueller Industries B34254 transducer valve connects a 1/8 in NPT female inlet (NPTFI) to a 1/4 in NPT female outlet (NPTFE) for refrigeration, HVAC control, and transducer sensing applications. It is rated to 48 bar (700 psi) and operates from -40°F (-40°C) to 300°F (149°C). The standard cap material is brass, replacement seal cap references and dimensional callouts A–G are provided for installation. Weight: 0.18 kg (0.41 lb).

• 1/8 in NPT female inlet (NPTFI) and 1/4 in NPT female outlet (NPTFE) threaded connections
• Rated to 48 bar (700 psi); operating temperature -40°F (-40°C) to 300°F (149°C)
• Brass standard cap; standard seal cap A 04597 and cap gasket A 03468; replacement seal caps P 34627 (plastic) and A 16474 (brass)

Product Highlights

Transducer valve B34254 with 1/8 in NPTFI to 1/4 in NPTFE connections, 700 psi rating, brass cap, dimensional callouts A–G included

Product Information

Standard Information

• Brand: MUELLER INDUSTRIES
• Manufacturer Part Number: B34254
