Mueller AQ17861C Cyclemaster Ball Valve 1/2 in ODS x 1/2 in Port (1 Each)

MUELLER
Brand: MUELLER
SKU: AQ17861C
Availability: In Stock

Ships same day if ordered by 12 pm
$90.86
$90.86
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

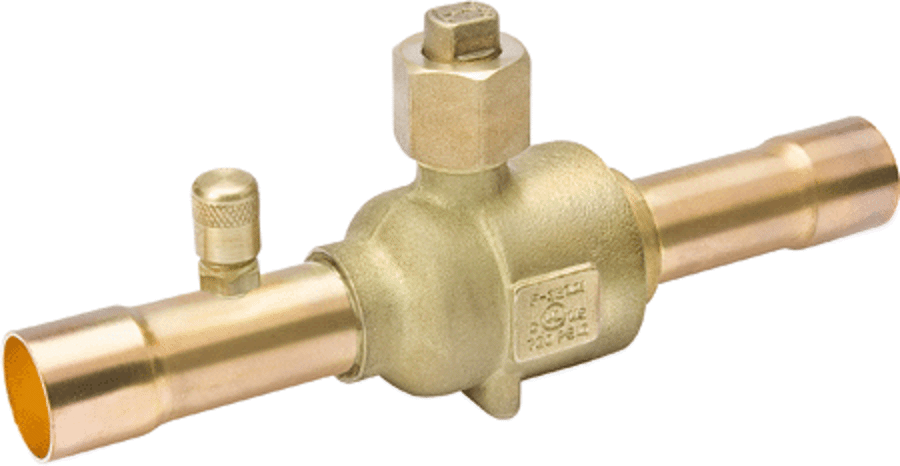

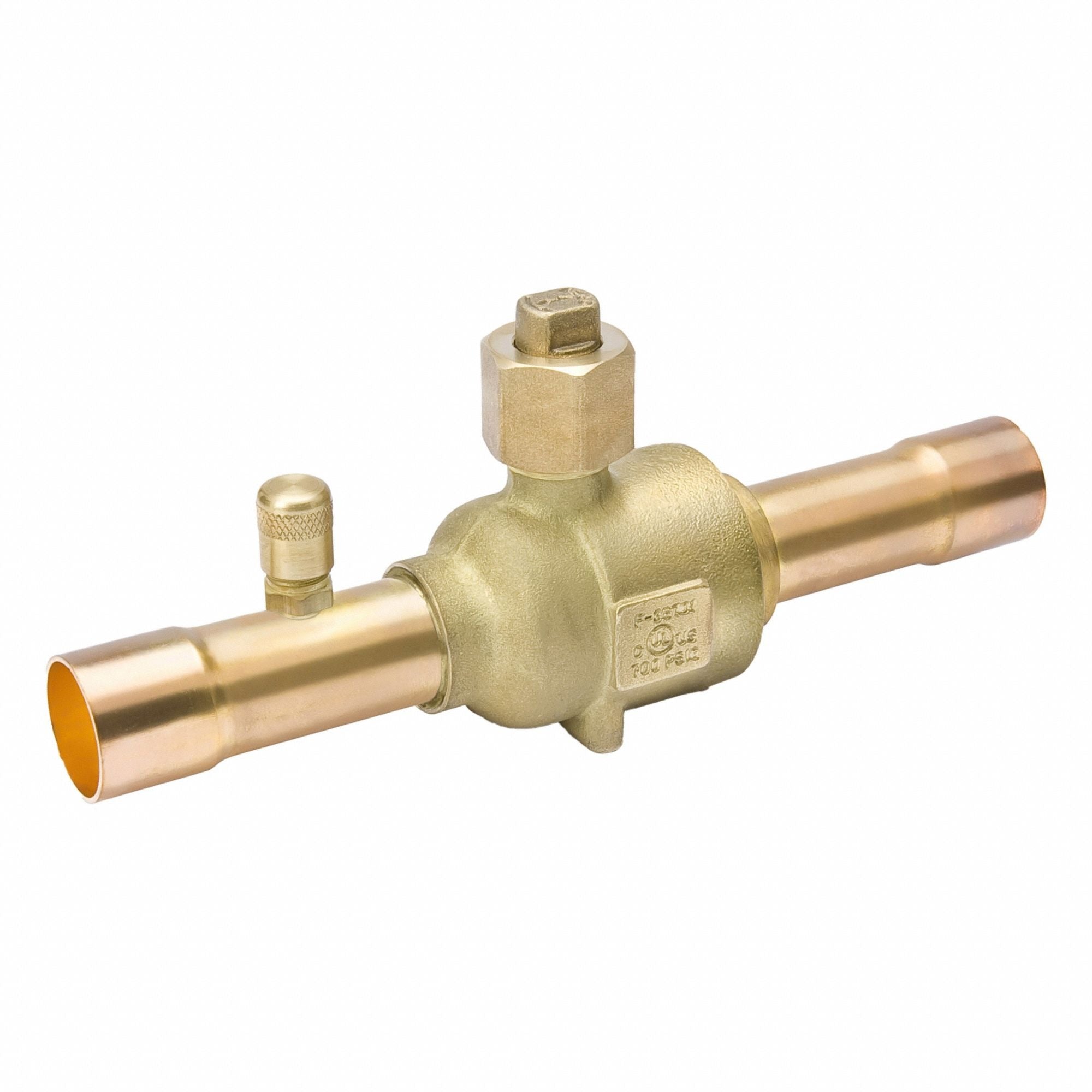

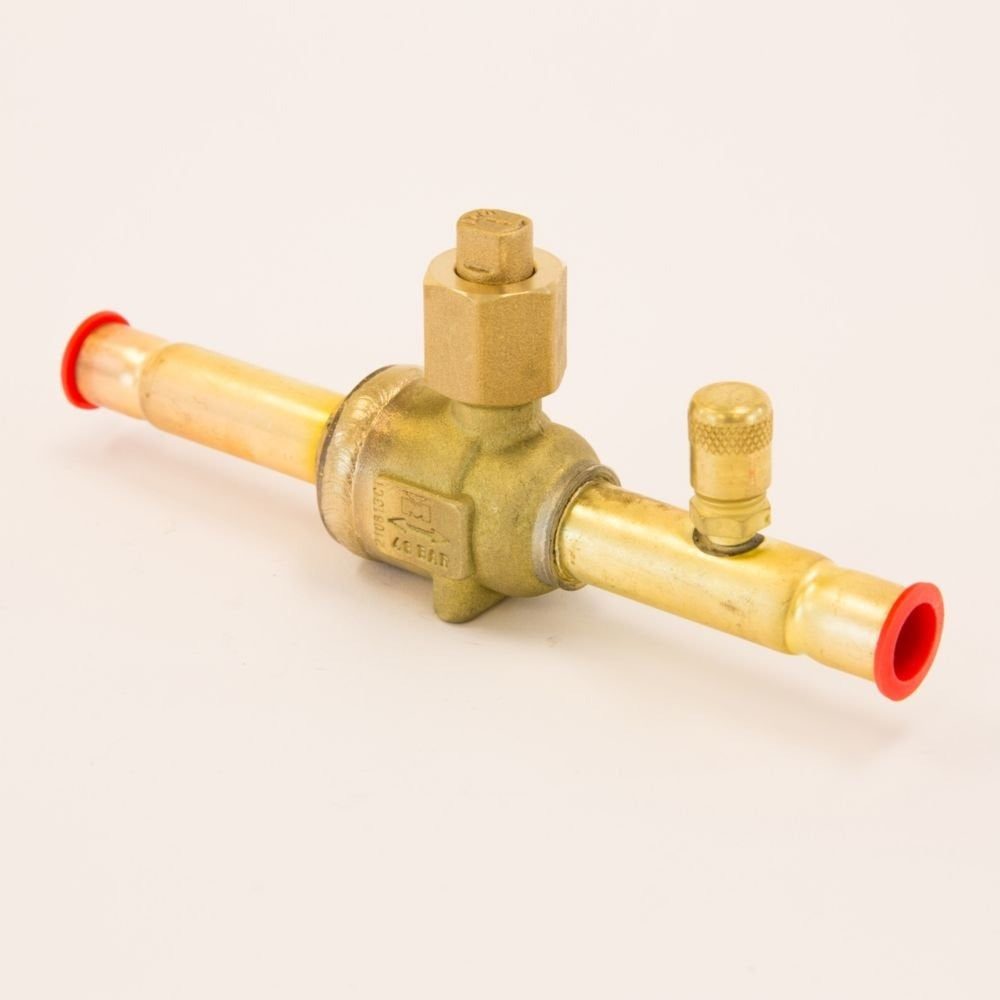

Mueller AQ17861C is a Cyclemaster brass ball valve with a 1/2 in ODS connection and a 1/2 in drilled and tapped port with access for refrigeration service. The valve features full-port ball construction, a working pressure of 700 psi and a maximum pressure of 775 psi, and is intended for refrigeration and HVAC applications.

  • Brass Cyclemaster construction with full-port 1/2 in ball and 1/2 in ODS connection; drilled and tapped access port
  • Rated working pressure 700 psi, maximum pressure 775 psi; Cv 6.20 (Kv 5)
  • Internally equalized ball, rupture-proof encapsulated stem, bi-directional flow, MCM Seal Technology; UL/cUL and PED/CE/CRN certifications

Product Highlights

1/2 in Cyclemaster refrigerant ball valve with access port, 700 psi working pressure, full-port brass construction

Product Information

Standard Information

  • Brand: MUELLER
  • Manufacturer Part Number: AQ17861C
  • Country of Origin: China
Technical Specifications
Brand
Mueller
Manufacturer Part Number
AQ17861C
Series
Cyclemaster
Product Type
Ball Valve (refrigeration access valve)
Material
Brass
Connection Type
ODS / Solder
Connection Size
1/2 in
Port Size
0.50 in
Ball Port Diameter
1/2 in
Cv
6.20
Kv
5
Working Pressure
700 psi
Maximum Pressure
775 psi (53 bar)
Operating Temperature Range
-40 °C to 149 °C (-40 °F to 300 °F)
Weight
0.24 kg (0.53 lb)
Design Features
Internally equalized ball design; rupture-proof encapsulated stem; bi-directional flow; MCM Seal Technology
Access Port
Included (drilled and tapped)
Relief Port
Not included
Mounting Holes
Included; M4 x 0.7 metric
Mounting Hole-to-Hole Distance
0.9 in
Seal Cap Kit
A17842
Dimensions (selected)
A: 161 mm (6.35 in); B: 87 mm (3.41 in); C Min: 10 mm (0.38 in); D: 14 mm (0.54 in); E: 57 mm (2.23 in); F: 31 mm (1.21 in); G: 22 mm (0.87 in)
Standards / Certifications
UL/cUL Listed; Conforms to Pressure Equipment Directive 2014/68/EU; CE certified; CRN 0C1241.9C
Compatible Refrigerants
CFC, HCFC, HFC, HFO (A2L compatible where specified)
Country of Origin
China
