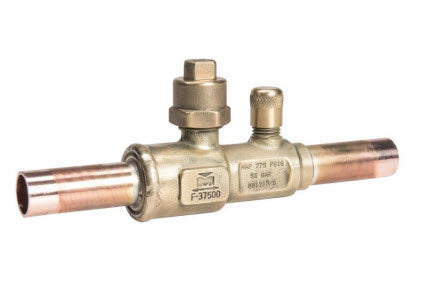

Mueller AG17865 Cyclemaster Ball Valves - FTG X FTG Multi-Split Refrigeration Ball Valves w/Access Port & Insulation: 1 1/8 in Press/FTG Working Pressure

Product Description

The Mueller AG17865 is a Cyclemaster ball valve designed for multi-split A/C and heat pump systems. This valve features FTG X FTG connections with a working pressure suitable for refrigeration applications.

• Engineered for multi-split air conditioning and heat pump units
• Incorporates self-sealing elastometric insulation cover
• Access ports allow operation without removing insulation

Product Highlights

This valve provides reliable operation in demanding environments, maintaining pressure and temperature standards effectively.

Product Information

Standard Information

• Brand: Mueller
• Part Number: K1967

Technical Specifications

• Design Pressure / Maximum Pressure: Up to 775 psig, 53 bar
• Temperature Range: -40°F to 300°F, -40°C to 149°C
• Certification: UL/cUL Listed, conforms to Pressure Equipment Directive 2014/68/EU
• Insulation Flame Ratings: 25/50 Flame & Smoke ratings
• Operating Compatibility: For CFC, HCFC, HFC, and HFO refrigerants (check with factory)
