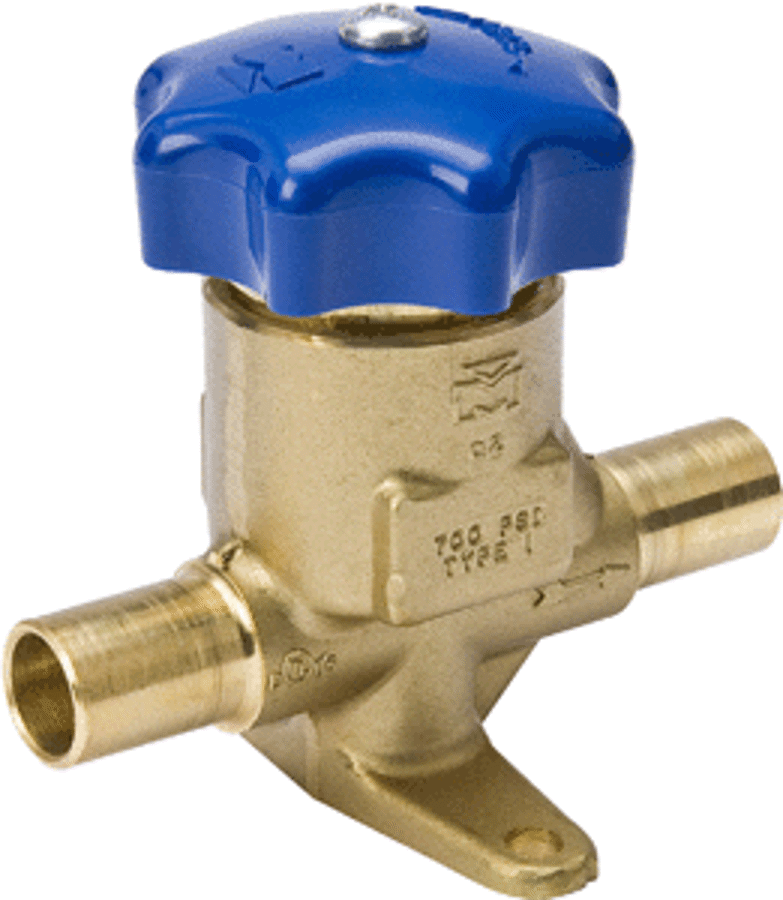

Mueller A14840 Packless Diaphragm Valve 3/8 Solder Straight Thru 214-6S

Product Description

The Mueller A14840 is a packless diaphragm valve made of forged brass, designed for refrigeration applications. This valve has a nominal size of three eighths inches and is suitable for solder connections. The product efficiently handles pressures up to five hundred psi.

• Long-lasting performance with enhanced sealing technology.
• Compatible with various refrigerants and oils.
• Wide operating temperature range from negative forty to three hundred degrees Fahrenheit.

Product Highlights

This diaphragm valve provides reliable performance and durability for HVAC applications. It features a heat-stabilized nylon stem seat ensuring even wear and a long service life.

Product Information

Standard Information

• Material: Forged Brass
• End Style: Solder

Technical Specifications

• Type: Straight
• Nominal Size: 3/8 Inch
• Pressure Rating: 500 psi
• Dimensions: 2-11/16 Inch Height
• Manufacturer: Mueller Industries
• Standard/Approvals: UL Listed
